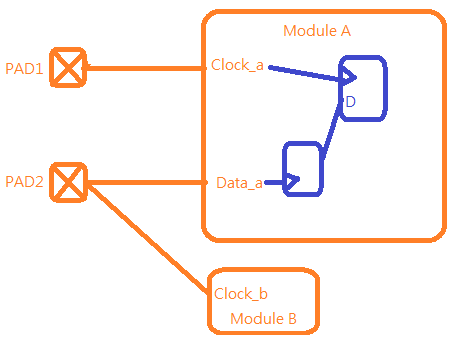

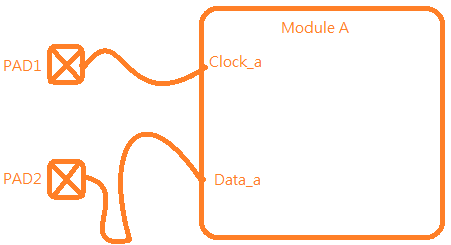

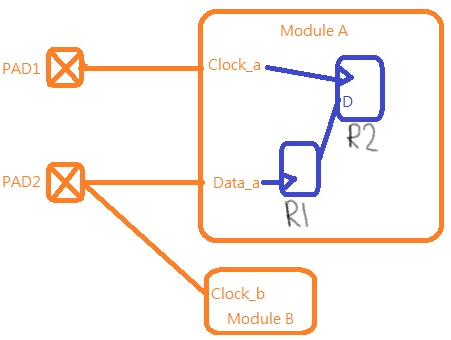

After Fitter, the net from PAD1 to clock_a and net from PAD2 to data_a become as follow picture.
The delay of the path from PAD1 to clock_a (Path1) and the path from PAD2 to data_a (Path2) is unconstrainted.
I add the constraint as follow for these two path.
Constraint:
set_net_delay -max 5.0 -from PAD1 to clock_a
set_net_delay -min 0.0 -from PAD1 to clock_a
set_net_delay -max 5.0 -from PAD1 to data_a
set_net_delay -min 0.0 -from PAD1 to data_a
And I want to balance the delay between the path from PAD1 to clock_a (Path1) and the path from PAD2 to data_a (Path1) for the min clock skew between clock domain clock_a and clock domain data_a.
But I'm confused how to minimize the clock skew.
The one way I think is to balance the skew of these two paths.
Then I'm confused how to balance the skew of these two paths.

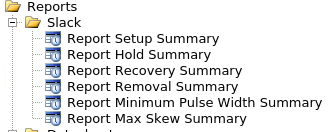

For my use case where I was playing with set_min_delay and set_max_delay
is where I was bringing a clock out from the FPGA towards a pin, that was used by another Chip.
I made sure that the clock rising edge occured after the DATA outputs were already stable.
So I added a bit more delay on the clk output compare to the data output and that was working fine (the data outputs were driven by the FPGA on the same internal clk).
