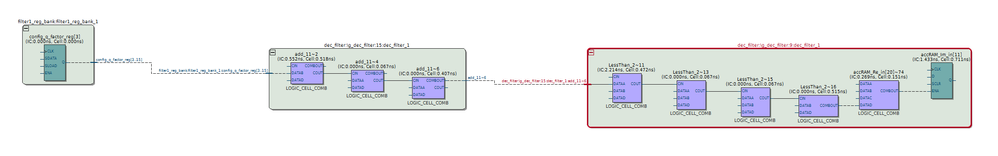

Timing analysis - long combinational path

Without seeing the code and just going by the names on the logic, you're performing a number of math operations and comparisons on the source signal, adding additional levels of logic.  Reviewing and adjusting the RTL code would probably be the easiest solution.  Post some code.

Try to add more pipeline register to shorten the combinational path

  p_filter_fsm : process (clk) is
  begin
    if rising_edge(clk) then
      if (rst = '1') then
        coef_addr_cnt            <= i_config_filterlength_reg(coef_addr_cnt'range) - 1;
        decimation_cnt           <= (others => '0');
        accRAM_addr_in           <= i_config_q_factor_reg(accRAM_addr_in'range) - 1;
        prev_accRAM_addr_in      <= i_config_q_factor_reg(accRAM_addr_in'range) - 1;
        accRAM_addr_out          <= i_config_q_factor_reg(accRAM_addr_out'range) - 1;
        prev_accRAM_addr_out     <= i_config_q_factor_reg(accRAM_addr_out'range) - 1;
        run_filter_cnt           <= (others => '0');
        we_accRAM                <= '0';
        accRAM_Re_out_add        <= (others => '0');
        accRAM_Im_out_add        <= (others => '0');
        filtered_accRAM_addr_out <= (others => '0');
        o_filtered_sample.tvalid <= '0';
        o_filtered_sample.tlast  <= '0';
        state_filter             <= NEXT_SAMPLE;
      else

        -- Defaults
        accRAM_Re_out_add        <= accRAM_Re_out;
        accRAM_Im_out_add        <= accRAM_Im_out;
        we_accRAM                <= '0';
        o_filtered_sample.tdata(4*GC_CH_DATA_WIDTH-1 downto 0) <= (others => '0');
        o_filtered_sample.tvalid <= '0';
        o_filtered_sample.tlast  <= '0';

        -- FSM
        case state_filter is
          -------------------------------------------------------------------
          when NEXT_SAMPLE =>
            accRAM_addr_in  <= prev_accRAM_addr_in;
            accRAM_addr_out <= prev_accRAM_addr_out;
            run_filter_cnt  <= (others => '0');
            we_accRAM       <= '0';

            if (sample_tvalid_posedge = '1') then
              sample_in      <= sample_s1.tdata(GC_CH_DATA_WIDTH-1 downto 0);
              coef_addr_cnt  <= coef_addr_cnt - to_integer(i_config_d_factor_reg);
              decimation_cnt <= decimation_cnt + 1;
              state_filter   <= FILTERING;
            end if;

          -------------------------------------------------------------------
          when FILTERING =>
            mult_Re     <= std_logic_vector(resize(signed(sample_in) * signed(i_coef_data(2*GC_COEF_DATA_WIDTH-1 downto GC_COEF_DATA_WIDTH)), mult_Re'length));
            mult_Im     <= std_logic_vector(resize(signed(sample_in) * signed(i_coef_data(GC_COEF_DATA_WIDTH-1 downto 0)), mult_Im'length));
            mult_Re_ext <= std_logic_vector(resize(signed(mult_Re), mult_Re_ext'length));
            mult_Im_ext <= std_logic_vector(resize(signed(mult_Im), mult_Im_ext'length));

            -- Truncate number of bits defined in 'config_lsb_prod_reg'
            case i_config_lsb_prod_reg(2 downto 0) is
              when b"000" =>
                add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH-1 downto 0);  -- (35:0)
                add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH-1 downto 0);
              when b"001" =>
                add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH downto 1);    -- (36:1)
                add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH downto 1);
              when b"010" =>
                add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH+1 downto 2);  -- (37:2)
                add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH+1 downto 2);
              when b"011" =>
                add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH+2 downto 3);  -- (38:3)
                add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH+2 downto 3);
              when b"100" =>
                add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH+3 downto 4);  -- (39:4)
                add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH+3 downto 4);
              when others =>
                add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH-1 downto 0);  -- same as (b"000")
                add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH-1 downto 0);
            end case;

            -- Counter for controlling length of Filtering-state
            run_filter_cnt <= run_filter_cnt + 1;

            -- Read previous sum from accRAM
            if (run_filter_cnt > i_config_q_factor_reg-1) then
              accRAM_addr_out <= filtered_accRAM_addr_out;
            elsif (run_filter_cnt > 0) then
              -- Rotating accRAM-address counter for reading from accRAM
              if (accRAM_addr_out = 0) then
                accRAM_addr_out <= i_config_q_factor_reg(accRAM_addr_out'range) - 1;
              else
                accRAM_addr_out <= accRAM_addr_out - 1;
              end if;
            end if;

            -- Add new sum and store in accRAM
            if (run_filter_cnt > C_START_WRITING_NEW_SUM+i_config_q_factor_reg) then
              we_accRAM <= '0';
            elsif (run_filter_cnt > C_START_WRITING_NEW_SUM) then
              we_accRAM    <= '1';
              accRAM_Re_in <= std_logic_vector(signed(add_Re_in) + signed(accRAM_Re_out_add));
              accRAM_Im_in <= std_logic_vector(signed(add_Im_in) + signed(accRAM_Im_out_add));
              if (run_filter_cnt > C_START_WRITING_NEW_SUM+1) then
                -- Rotating accRAM-address counter for writing to accRAM
                if (accRAM_addr_in = 0 and we_accRAM = '1') then
                  accRAM_addr_in <= i_config_q_factor_reg(accRAM_addr_in'range) - 1;
                else
                  accRAM_addr_in <= accRAM_addr_in - 1;
                end if;
              end if;
            end if;

            -- Update address-counter for coef-RAM, until last overlap is reached
            if (run_filter_cnt < i_config_q_factor_reg-1) then
              if (coef_addr_cnt < i_config_d_factor_reg) then
                coef_addr_cnt <= i_config_filterlength_reg(coef_addr_cnt'range) - 1;
              else
                coef_addr_cnt <= coef_addr_cnt - to_integer(i_config_d_factor_reg);
              end if;
            end if;

            -- Control length of FILTERING-state
            if (run_filter_cnt = i_config_q_factor_reg+8) then
              if (decimation_cnt < i_config_d_factor_reg) then
                coef_addr_cnt <= i_config_filterlength_reg(coef_addr_cnt'range) -1 -decimation_cnt;  -- coef in first overlap
                state_filter  <= NEXT_SAMPLE;
              elsif (decimation_cnt = i_config_d_factor_reg) then
                state_filter <= FILTER_OUTPUT;
              end if;
            end if;

          -------------------------------------------------------------------
          when FILTER_OUTPUT =>
            o_filtered_sample.tdata  <= accRAM_Re_Out & accRAM_Im_out;
            o_filtered_sample.tvalid <= '1';
            o_filtered_sample.tlast  <= '0';

            if (i_config_q_factor_reg = 1) then
              filtered_accRAM_addr_out <= (others => '0');
            elsif (filtered_accRAM_addr_out > i_config_q_factor_reg-2) then
              filtered_accRAM_addr_out <= (others => '0');
            else
              filtered_accRAM_addr_out <= filtered_accRAM_addr_out + 1;
            end if;

            -- Flush cell which is read, in accRAM
            we_accRAM      <= '1';
            accRAM_addr_in <= filtered_accRAM_addr_out;
            accRAM_Re_in   <= (others => '0');
            accRAM_Im_in   <= (others => '0');

            -- Update coefficient for next sample
            coef_addr_cnt <= i_config_filterlength_reg(coef_addr_cnt'range) - 1;

            -- Reset decimation counter
            decimation_cnt <= (others => '0');

            -- Store accRAM-address value for next round of filtering before
            -- changing state
            prev_accRAM_addr_in  <= accRAM_addr_in;
            prev_accRAM_addr_out <= accRAM_addr_out;
            state_filter         <= NEXT_SAMPLE;

          when others => state_filter <= NEXT_SAMPLE;
        end case;

      end if;
    end if;
  end process p_filter_fsm;

Here are the filter statemachin which uses the config_q_factor:

This code isn't showing any of the signal processing from your screenshot.  Where is dec_filter?

Yes, this is the filter. Both multiply and accumulate happens in the FILTERING-state, along with truncation. In addition, there is a RAM holding the accumulated sum. Input-samples are not stored when coming in.

  o_coef_addr <= std_logic_vector(coef_addr_cnt);

  -- Accumulator RAM
  p_accRAM : process (clk) is
  begin
    if rising_edge(clk) then
      if (we_accRAM = '1') then
        accRAM_Re(to_integer(accRAM_addr_in)) <= accRAM_Re_in;
        accRAM_Im(to_integer(accRAM_addr_in)) <= accRAM_Im_in;
      end if;
      accRAM_Re_out <= accRAM_Re(to_integer(accRAM_addr_out));
      accRAM_Im_out <= accRAM_Im(to_integer(accRAM_addr_out));
    end if;
  end process p_accRAM;

  -- Sample input-samples and detect tvalid-flanks
  p_edge : process (clk) is
  begin
    if rising_edge(clk)  then
      sample_s1.tvalid <= i_sample.tvalid;
      sample_s1.tdata  <= i_sample.tdata;

      if (i_sample.tvalid = '1' and sample_s1.tvalid = '0') then
        sample_tvalid_posedge <= '1';
        sample_tvalid_negedge <= '0';
      elsif (i_sample.tvalid = '0' and sample_s1.tvalid = '1') then
        sample_tvalid_negedge <= '1';
        sample_tvalid_posedge <= '0';
      else
        sample_tvalid_posedge <= '0';
        sample_tvalid_negedge <= '0';
      end if;
    end if;
  end process p_edge;

A few things.

You have way too much logic in your state machine.  The next state logic should simply determine the conditions for switching state (determined in separate processes or elsewhere) and specify what the next state should be.  Setting outputs in particular states should be in their own separate non-clocked process so the appropriate output appears as soon as you move to the new state.  If you're reliant on some logic within a state to then determine a new value before then assigning an output, that's going to cause timing issues.  Create additional states to give yourself extra clock cycles or pull that logic out.  Assignments like these that rely on other logic within the same filtering state are probably the issue and should be in separate combinatorial processes:

accRAM_Re_in <= std_logic_vector(signed(add_Re_in) + signed(accRAM_Re_out_add));

accRAM_Im_in <= std_logic_vector(signed(add_Im_in) + signed(accRAM_Im_out_add));

Sticking to_integer and signed functions in there doesn't help matters either.

Thanks for the feedback. I will look into rewriting the statemachine next week.

But, how do you go about to avoid type-casting/conversion like to_integer/signed?

Hi, I rewrote my state-machine, but I did not achieve much increase in performance.

Adding multicycle-path statement on a "semi-static" configuration-registers caused the Fmax to go up, but I still have violations related to the filter. The calculations have been extracted from the state-machine as shown in the code below.

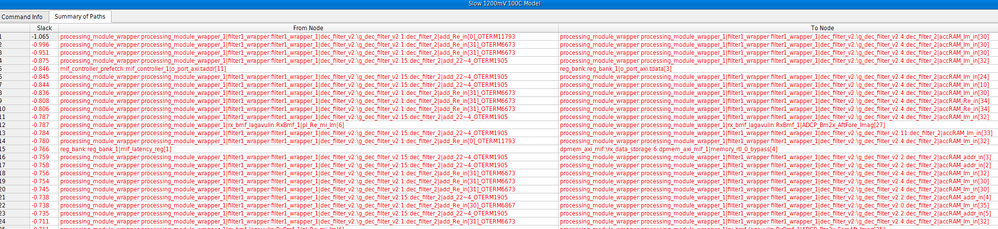

The timing analyzer still complains about long combinational paths. The process below calculates on every clock-cycle. Would it be a solution to added extra pipeline-registers in between the calculation stages, and add multicycle-statements to relax the timing requirement?

  p_filter_calculations : process (clk) is
  begin
    if rising_edge(clk) then
      -- Multiplication of input sample with coefficients
      mult_Re     <= std_logic_vector(resize(signed(sample_in) * signed(i_coef_data(2*GC_COEF_DATA_WIDTH-1 downto GC_COEF_DATA_WIDTH)), mult_Re'length));
      mult_Im     <= std_logic_vector(resize(signed(sample_in) * signed(i_coef_data(GC_COEF_DATA_WIDTH-1 downto 0)), mult_Im'length));
      mult_Re_ext <= std_logic_vector(resize(signed(mult_Re), mult_Re_ext'length));
      mult_Im_ext <= std_logic_vector(resize(signed(mult_Im), mult_Im_ext'length));

      -- Truncate number of bits defined in 'config_lsb_prod_reg'
      case i_config_lsb_prod_reg(2 downto 0) is
        when b"000" =>
          add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH-1 downto 0);  -- (35:0)
          add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH-1 downto 0);
        when b"001" =>
          add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH downto 1);    -- (36:1)
          add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH downto 1);
        when b"010" =>
          add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH+1 downto 2);  -- (37:2)
          add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH+1 downto 2);
        when b"011" =>
          add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH+2 downto 3);  -- (38:3)
          add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH+2 downto 3);
        when b"100" =>
          add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH+3 downto 4);  -- (39:4)
          add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH+3 downto 4);
        when others =>
          add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH-1 downto 0);  -- same as (b"000")
          add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH-1 downto 0);
      end case;

      -- Add new sum and store in accRAM
      if (run_filter_cnt > C_START_WRITING_NEW_SUM and
          run_filter_cnt < C_START_WRITING_NEW_SUM+i_config_q_factor_reg+1) then
        accRAM_Re_in <= std_logic_vector(signed(add_Re_in) + signed(accRAM_Re_out_add));
        accRAM_Im_in <= std_logic_vector(signed(add_Im_in) + signed(accRAM_Im_out_add));
      elsif (next_state = FILTER_OUTPUT) then
        accRAM_Re_in <= (others => '0');
        accRAM_Im_in <= (others => '0');
      end if;

    end if;
  end process p_filter_calculations;

Thanks, but I believe I have tried that too. I still get violations related to the calculations

Is there something fundamental I have misunderstood about FSMs? or maybe Quartus TA?

My FSM now looks like this:

  -----------------------------------------------------------------------------
  -- Filter statemachine
  --
  -- Avoid start filtering in the "middle" of tvalid, if reset is released at a
  -- bad time => need both negative edge and a positive edge on the next tvalid
  -- in order to start filtering.
  -----------------------------------------------------------------------------
  p_filter_fsm : process (clk) is
  begin
    if rising_edge(clk) then
      if (rst = '1') then
        current_state <= IDLE;
      else
        current_state <= next_state;
      end if;
    end if;
  end process p_filter_fsm;

  -----------------------------------------------------------------------------
  -- Counters for handling accRAM-accesses during filtering
  -----------------------------------------------------------------------------
  p_filter_fsm_counters : process (clk) is
  begin
    if rising_edge(clk) then
      if (rst = '1') then
        accRAM_addr_in           <= i_config_q_factor_reg(accRAM_addr_in'range) - 1;
        accRAM_addr_out          <= i_config_q_factor_reg(accRAM_addr_out'range) - 1;
        prev_accRAM_addr_in      <= i_config_q_factor_reg(accRAM_addr_in'range) - 1;
        prev_accRAM_addr_out     <= i_config_q_factor_reg(accRAM_addr_out'range) - 1;
        coef_addr_cnt            <= i_config_filterlength_reg(coef_addr_cnt'range) - 1;
        filtered_accRAM_addr_out <= (others => '0');
        decimation_cnt           <= (others => '0');
        run_filter_cnt           <= (others => '0');
        sample_in                <= (others => '0');
      else

        -- Defaults
        run_filter_cnt <= (others => '0');

        case current_state is
          when IDLE =>
            prev_accRAM_addr_in  <= i_config_q_factor_reg(accRAM_addr_in'range) - 1;
            prev_accRAM_addr_out <= i_config_q_factor_reg(accRAM_addr_out'range) - 1;
            accRAM_addr_in       <= i_config_q_factor_reg(accRAM_addr_in'range) - 1;
            accRAM_addr_out      <= i_config_q_factor_reg(accRAM_addr_out'range) - 1;
            coef_addr_cnt        <= i_config_filterlength_reg(coef_addr_cnt'range) - 1;
            decimation_cnt       <= (others => '0');

          -------------------------------------------------------------------
          when NEXT_SAMPLE =>
            accRAM_addr_in  <= prev_accRAM_addr_in;
            accRAM_addr_out <= prev_accRAM_addr_out;

            if (sample_tvalid_posedge = '1' or sample_tvalid_negedge = '1') then
              sample_in      <= sample_s1.tdata(GC_CH_DATA_WIDTH-1 downto 0);
              coef_addr_cnt  <= coef_addr_cnt - to_integer(i_config_d_factor_reg);
              decimation_cnt <= decimation_cnt + 1;
            end if;

          -------------------------------------------------------------------
          when FILTERING =>
            -- Counter for controlling length of Filtering-state
            run_filter_cnt <= run_filter_cnt + 1;

            -- Update address-counter for coef-RAM, until last overlap is reached
            if (run_filter_cnt < i_config_q_factor_reg-1) then
              if (coef_addr_cnt < i_config_d_factor_reg) then
                coef_addr_cnt <= i_config_filterlength_reg(coef_addr_cnt'range) - 1;
              else
                coef_addr_cnt <= coef_addr_cnt - to_integer(i_config_d_factor_reg);
              end if;
            end if;

            -- Control length of FILTERING-state
            if (run_filter_cnt = i_config_q_factor_reg+8) then
              if (decimation_cnt < i_config_d_factor_reg) then
                coef_addr_cnt <= i_config_filterlength_reg(coef_addr_cnt'range) -1 -decimation_cnt;  -- coef in first overlap
              end if;
            end if;

            -- Read previous sum from accRAM
            if (run_filter_cnt > i_config_q_factor_reg-1) then
              accRAM_addr_out <= filtered_accRAM_addr_out;
            elsif (run_filter_cnt > 0) then
              -- Rotating accRAM-address counter for reading from accRAM
              if (accRAM_addr_out = 0) then
                accRAM_addr_out <= i_config_q_factor_reg(accRAM_addr_out'range) - 1;
              else
                accRAM_addr_out <= accRAM_addr_out - 1;
              end if;
            end if;

            if (run_filter_cnt > C_START_WRITING_NEW_SUM+1 and
                run_filter_cnt < C_START_WRITING_NEW_SUM+i_config_q_factor_reg+1) then
              if (accRAM_addr_in = 0 and we_accRAM = '1') then
                accRAM_addr_in <= i_config_q_factor_reg(accRAM_addr_in'range) - 1;
              else
                accRAM_addr_in <= accRAM_addr_in - 1;
              end if;
            end if;

          -------------------------------------------------------------------
          when FILTER_OUTPUT =>
            -- Flush cell which is read, in accRAM
            accRAM_addr_in <= filtered_accRAM_addr_out;

            if (i_config_q_factor_reg = 1) then
              filtered_accRAM_addr_out <= (others => '0');
            elsif (filtered_accRAM_addr_out > i_config_q_factor_reg-2) then
              filtered_accRAM_addr_out <= (others => '0');
            else
              filtered_accRAM_addr_out <= filtered_accRAM_addr_out + 1;
            end if;

            -- Update coefficient for next sample
            coef_addr_cnt <= i_config_filterlength_reg(coef_addr_cnt'range) - 1;

            -- Reset decimation counter
            decimation_cnt <= (others => '0');

            -- Store accRAM-address value for next round of filtering before
            -- changing state
            prev_accRAM_addr_in  <= accRAM_addr_in;
            prev_accRAM_addr_out <= accRAM_addr_out;

          when others => null;
        end case;
      end if;
    end if;
  end process p_filter_fsm_counters;

  -----------------------------------------------------------------------------
  -- Asynchronous FSM outputs
  -----------------------------------------------------------------------------
  p_filter_fsm_outputs : process (all) is
  begin

    -- Defaults
    next_state <= current_state;

    case current_state is
      when IDLE =>
        next_state <= NEXT_SAMPLE;

      -------------------------------------------------------------------
      when NEXT_SAMPLE =>
        if (sample_tvalid_posedge = '1' or sample_tvalid_negedge = '1') then
          next_state <= FILTERING;
        else
          next_state <= NEXT_SAMPLE;
        end if;

      -------------------------------------------------------------------
      when FILTERING =>
        -- Control length of FILTERING-state
        if (run_filter_cnt = i_config_q_factor_reg+8) then
          if (decimation_cnt < i_config_d_factor_reg) then
            next_state <= NEXT_SAMPLE;
          elsif (decimation_cnt = i_config_d_factor_reg) then
            next_state <= FILTER_OUTPUT;
          end if;
        else
          next_state <= FILTERING;
        end if;

      -------------------------------------------------------------------
      when FILTER_OUTPUT =>
        next_state <= NEXT_SAMPLE;

      when others => next_state <= NEXT_SAMPLE;
    end case;
  end process p_filter_fsm_outputs;

  -----------------------------------------------------------------------------
  -- FSM pipeline stage
  -----------------------------------------------------------------------------
  p_fsm_pipelining : process (clk) is
  begin
    if rising_edge(clk) then
      if (rst = '1') then
        accRAM_Re_out_add                                      <= (others => '0');
        accRAM_Im_out_add                                      <= (others => '0');
        we_accRAM                                              <= '0';
        o_filtered_sample.tdata(4*GC_CH_DATA_WIDTH-1 downto 0) <= (others => '0');
        o_filtered_sample.tvalid                               <= '0';
        o_filtered_sample.tlast                                <= '0';

      else

        -- Defaults
        accRAM_Re_out_add                                      <= accRAM_Re_out;
        accRAM_Im_out_add                                      <= accRAM_Im_out;
        we_accRAM                                              <= '0';
        o_filtered_sample.tdata(4*GC_CH_DATA_WIDTH-1 downto 0) <= (others => '0');
        o_filtered_sample.tvalid                               <= '0';
        o_filtered_sample.tlast                                <= '0';

        case current_state is
          when IDLE =>
            accRAM_Re_out_add        <= (others => '0');
            accRAM_Im_out_add        <= (others => '0');
            o_filtered_sample.tvalid <= '0';
            o_filtered_sample.tlast  <= '0';

          -------------------------------------------------------------------
          when FILTERING =>
            -- Add new sum and store in accRAM
            if (run_filter_cnt > C_START_WRITING_NEW_SUM+i_config_q_factor_reg) then
              we_accRAM <= '0';
            elsif (run_filter_cnt > C_START_WRITING_NEW_SUM) then
              we_accRAM <= '1';
            end if;

          -------------------------------------------------------------------
          when FILTER_OUTPUT =>
            we_accRAM                <= '1';
            o_filtered_sample.tdata  <= accRAM_Re_Out & accRAM_Im_out;
            o_filtered_sample.tvalid <= '1';
            o_filtered_sample.tlast  <= '0';

          when others => null;
        end case;

      end if;
    end if;
  end process p_fsm_pipelining;

  -----------------------------------------------------------------------------
  -- Filter-calculations, synchronous
  -----------------------------------------------------------------------------
  p_filter_calculations : process (clk) is
  begin
    if rising_edge(clk) then
      -- Multiplication of input sample with coefficients
      mult_Re <= std_logic_vector(resize(signed(sample_in) * signed(i_coef_data(2*GC_COEF_DATA_WIDTH-1 downto GC_COEF_DATA_WIDTH)), mult_Re'length));
      mult_Im <= std_logic_vector(resize(signed(sample_in) * signed(i_coef_data(GC_COEF_DATA_WIDTH-1 downto 0)), mult_Im'length));

      -- Resizing of vectors
      mult_Re_ext <= std_logic_vector(resize(signed(mult_Re), mult_Re_ext'length));
      mult_Im_ext <= std_logic_vector(resize(signed(mult_Im), mult_Im_ext'length));

      -- Truncate number of bits defined in 'config_lsb_prod_reg'
      case i_config_lsb_prod_reg(2 downto 0) is
        when b"001" =>
          add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH downto 1);    -- (36:1)
          add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH downto 1);
        when b"010" =>
          add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH+1 downto 2);  -- (37:2)
          add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH+1 downto 2);
        when b"011" =>
          add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH+2 downto 3);  -- (38:3)
          add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH+2 downto 3);
        when b"100" =>
          add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH+3 downto 4);  -- (39:4)
          add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH+3 downto 4);
        when others =>
          add_Re_in <= mult_Re_ext(GC_ADDER_WIDTH-1 downto 0);  -- same as (b"000")
          add_Im_in <= mult_Im_ext(GC_ADDER_WIDTH-1 downto 0);
      end case;

      -- Add new sum and store in accRAM
      if (run_filter_cnt > C_START_WRITING_NEW_SUM and
          run_filter_cnt < C_START_WRITING_NEW_SUM+i_config_q_factor_reg+1) then
        accRAM_Re_in <= std_logic_vector(signed(add_Re_in) + signed(accRAM_Re_out_add));
        accRAM_Im_in <= std_logic_vector(signed(add_Im_in) + signed(accRAM_Im_out_add));
      elsif (next_state = FILTER_OUTPUT) then
        accRAM_Re_in <= (others => '0');
        accRAM_Im_in <= (others => '0');
      end if;

    end if;
  end process p_filter_calculations;
