A design based on the PCIe DMA transfer example design for Arria 10 device.

Hi,

This is a extension of the discussion https://community.intel.com/t5/Programmable-Devices/Modifying-the-PCIe-DMA-transfer-example-design-for-Arria-10/m-p/1484799#M90698 and https://community.intel.com/t5/FPGA-Intellectual-Property/API-calls-failed-while-running-PCIe-DMA-transfer-example-design/m-p/1520494#M28014 where we could not get a solution to the problem we are facing.

We also tried trying to get a Intel Premium help (We are based on a University in USA, but purchased the FPGA and Intel Quartus Prime Pro with normal rate NOT through University reduced rate). But thats is rejected by Intel explaining that since, We are from a University, We are not eligible for Premium help. It would be great if you suggest a way to resolve the issue.

Story in short: We were working on a project to use the FPGA to increase the data throughput in an experiment. We are planning to use FPGA as an intermediate in signal transmission through an optical fiber from electronic readout to the Data Acquisition System. So we need a way to transfer signal though the FPGA (input though the QSFP+ port and output through the PCIe). We were planning to develop a design based on the PCIe DMA transfer example design (that involve the DDR4 memory to store data). In the example design, data is created at a host computer and is written into the DDR4 memory through DMA write through PCIe. And then it read it back to the hot computer to verify the sending data is same as the receiving data.

What we need in our project to stream data from QSFP+ to the DDR4 memory and then DMA read through PCIe to host computer using the API provided.

As an initial step (to test the working of the FIFO + PCIE DMA transfer example design, as our final aim is to get the data from QSFP+ to FIFO to goto the DDR4 element), we used a custom IP of data counter that counts upto 1000 (works on getting an trigger from a switch SW[0] ) to connect to Avalon FIFO IP. Then this design is integrated to the PCIe DMA transfer example design using Platform Builder. The idea is to stream created at the counter though FIFO to the DDR4 memory element. Then DMA read though PCIE to a host computer. But when we try to do DMA read from the host computer, we could not see the counter outputs (which we are suppose to get?).

Great if you could help us out. Any suggestion where to get help for making our design work is highly appreciated.

Pcie

33 Replies

FvM
Super Contributor
2 years ago
Hi,
I reviewed the previous thread but I didn't understand a simple point.
Intel provides a complete DMA example design with test application on the host side. Did you try to run the test framework, did it work for you?
Sijith
Occasional Contributor
2 years ago
Yup the example design provided by Intel works fine (Even though I had some problem initially, It was a kind of random crashes. I assume its somehow related to the physical DDR4 memory element--when I re-insert the physical card the problem resolves)
The real issue is when I modify the design. When I added a FIFO + Counter to the design (I used Platform Designer for Integrating FIFO+ Counter IP to the DMA transfer example design), the test application (I removed the writing part from the test application retaining the read part) simply fails. Fails I mean I could read data but all of then are sum junk data. A screen capture of running the API application from the host computer is attached.
Platform designer view of the modified system (DMA transfer example + FIFO + Counter) : https://community.intel.com/t5/Programmable-Devices/How-to-read-data-from-the-DDR4-memory-of-a-Modified-PCIe-DMA/m-p/1468923#M90078 please go through the attached screenshot (PNG files) of my first message in the thread.
API_terminal.mp416.8 MB
VenT_Altera
Frequent Contributor
2 years ago
Hi @Sijith,

Thanks for reaching out to the Intel Community Forum.

Can you check on the counter and FIFO to ensure that they're working properly by using Signal Tap?

Thanks.
Best Regards,
VenTing_Intel
- Sijith
  Occasional Contributor
  2 years ago
  Hi,
  I tried simulating the counter and FIFO separately using modelsim and found they simulation looks all good. Just curious, do you would like me to try Signal Tap?
FvM
Super Contributor
2 years ago
Hi,
using Signaltap to trace data send to DMA interface would be also my suggestion. Find out if and where it's corrupted in the framework.

I have used it successfully to locate a data alignment problem in PCIe hprxm_master https://community.intel.com/t5/FPGA-Intellectual-Property/PCIe-hprxm-master-doesn-t-handle-unaligned-reads-correctly/m-p/1498943
FvM
Super Contributor
2 years ago
I reviewed the modified design with counter and fifo, but I can't even detect a valid data path from fifo to dma_wr_master. Data seems to run through ddr interface, although ddr is operated at a different clock. No idea why it's connected this way.
- Sijith
  Occasional Contributor
  2 years ago
  Hi FvM,
  Thank you very much for looking into the design. I am new to the hardware design and basically from a basic science background, so any suggestion to improve/correct the modified design design is highly appreciated (this is what I am looking for too).
  The present design i have is on the basis of the my thought that the counter-FIFO data can be written directly to DDR4 memory without the intervention of DMA write (thought DMA write should involve if the transfer of data from the host computer to the DDR4-- in the example design where we create data in host computer and write it to DDR4). Please correct my understanding if it is not possible somehow in this case.
  What I really want is stream the data generated in the counter (which on/off with an external switch) through a FIFO (Intel Avalon MM FIFO IP, with streaming input and MM-output that I have used) then the data should go to the PCIe DMA transfer example design and the data written in DDR4 element then should read from the host computer through API functions provided)
  Any suggestion for this is highly appreciated.
VenT_Altera
Frequent Contributor
2 years ago
Hi @Sijith,

Thanks for your feedback.

Yes, can you please try the Signal Tap as well? To test the real-time signal behavior of the counter and FIFO.
Besides, have you tried to run the example design without modification? The data can be read correctly?

Thanks.
Best Regards,
VenTing_Intel
Sijith
Occasional Contributor
2 years ago
Sure! it would be great if you could have a look into my design (the signal connection of the Counter FIFO to the PCIe DMA example design) to make sure the connections makes sense (pls see png files attached to the link in my first message). If not any suggestions to improve it is highly appreciated. (FYI: What I really want is stream the data generated in the counter (which on/off with an external switch) through a FIFO (Intel Avalon MM FIFO IP, with streaming input and MM-output that I have used) then the data should go to the PCIe DMA transfer example design and the data written in DDR4 element then should read from the host computer through API functions provided)
Also, I have tried run example design and it was running fine that time.
VenT_Altera
Frequent Contributor
2 years ago
Hi @Sijith,

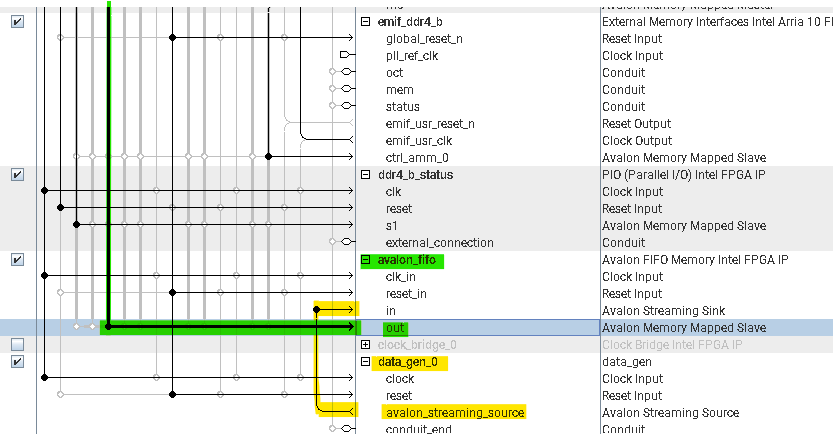

As per your modification, you want to use the counter to generate data and stream the data to DDR4 through FIFO. But when looking into your qsys file (in the attached screenshot) , I found that the Avalon FIFO is not connected to the DDR4. May I know why the Avalon FIFO is connected directly to DMA instead DDR4? The data from the FIFO should be first stored in the DDR4 right?

You may try to generate the Example Design from the External Memory Interfaces Intel Aria 10 IP to view the connections of the DDR4 and data generator.
To keep your EMIF IP configuration settings, open the .qsys of your current design in Platform Designer, click the EMIF IP, and click Generate Example Design in the Parameters tab.

Since you're able to run the example design without modification previously, this means that the DMA is working. Then, we need to check on the data transmitted from the data generator (counter) to ensure it is correctly stored in the DDR4. Can you please run the Signal Tap to check the DDR4 as well?

Thanks.
Best Regards,
VenTing_Intel
VenT_Altera
Frequent Contributor
2 years ago
Sijith
Occasional Contributor
2 years ago
Hi,
Thank you very much for your reply. May I know that you are talking about the .qsys file from the attached ModifiedDesign.zip community.intel.com/t5/Programmable-Devices/Modifying-the-PCIe-DMA-transfer-example-design-for-Arria-10/m-p/1477669#M90418
or some other screenshot attachments?
Actually my modification is the first step of a couple of modification (a kind of step by step). After current step (testing the counter-FIFO writing to DDR4 and then DMA read data on DDR4 from a hostcomputer), I would like to replace the counter data with an input datastream that injected from external source through the QSFP+ port to FIFO(the input data rate is around 1.5 GB/s).
So involving the DMA controller to write data to DDR4 at this step, will help to efficiently handle the high speed input data (1.5 GHz/s in next step of my project ) writing to DDR4 and then DMA read from DDR4 by host computer (without any data loss), is that makes any sense for you? If not please let me know. Also, it would be great if you could give me any idea/suggestion that can help too.
sure I will try generating the EMIF example design as you suggested (could you please elaborate a bit how the EMIF example design will help us?)
