Using 2 inputs to Clock MUX doesn't result in correct answer

I have a design were I am trying to use the Input Clock MUX to Switch between two input pin clock ports. The PLLs are in platform designer and I get the following warning:

Warning: test_system_qsys.pll_26_104.refclk1: Signal refclk1 has unknown type refclk1.

Now the two clock pins already pass through the clock_source IP blocks on the way to the PLL. The PLL has 2 reference clocks in which I have programmed "manual" switching. No matter which clock I put on refclk1 I get the same warning and the result is the second clock is NOT PRESENT at the input of the PLL after fitting as examined in the technology view.

Both clocks are signal ended and arriving on dedicated clock input pins. Both clocks are on the bottom of the die.

I am using Quartus Prime 21.1 build 842. This is for an Arrai5 GX device which is on your Arria5GX Reference board.

Upon further review the manual switchover and activeclk signal are also not present on the PLL in post fit technology view???

Any guidance would be welcome,

TomT...

17 Replies

  • KennyT_altera's avatar
    KennyT_altera
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    Kindly note that there will be some slowness on the first reply due to the public holiday, we will get back to you as soon as possible.



  • Mengzhe's avatar
    Mengzhe
    Icon for Occasional Contributor rankOccasional Contributor
    3 years ago

    Hi,


    Thank you for using Intel's support services. Can you provide your project so that we can help you locate the problem?


    Thanks & Regards,

    Tingjiang


    • ThomasTessier's avatar
      ThomasTessier
      Icon for Occasional Contributor rankOccasional Contributor
      3 years ago

      Unfortunately I cannot provide you the project because of company policy. Here are the details:

      clkin_50_bot pin_AP20

      hsma_clk_in0 pin_AL5

      PLL configured in the Platform Designer with the following behavior:

      refclk1 = clkin_50_bot, passes through Clock Source IP

      refclk = hsma_clk_in0, passes through Clock Source IP

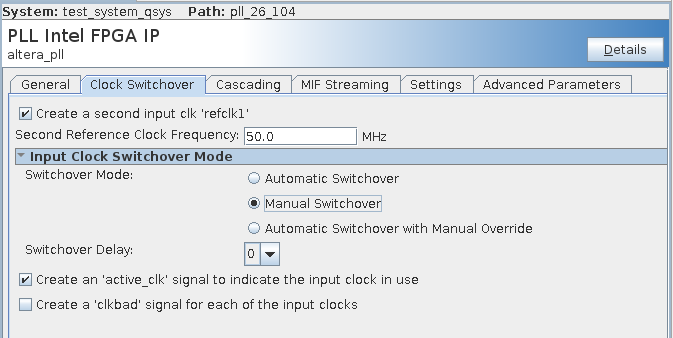

      Configured to use Manual Clock Switchover

      PLL creates:

      outclk0 = 26MHz

      outclk1 = 104MHz

      outclk2 = 520MHz

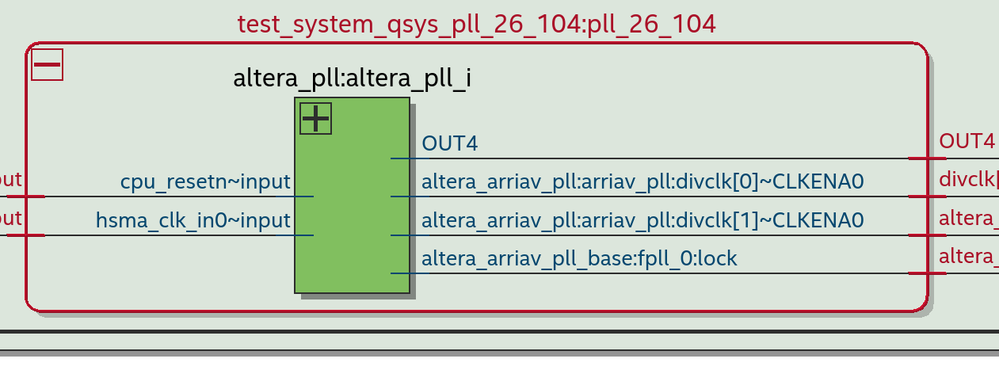

      Once I have created this design through compile I use the Netlist View -> Post Fitter to get the following schematic view:

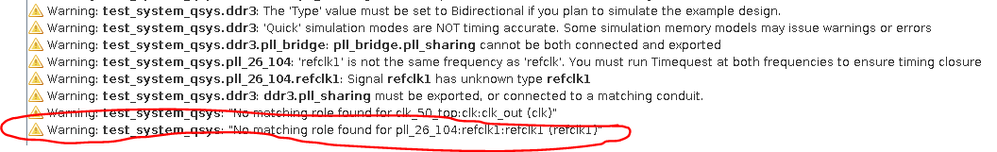

      As you can see only one of the input clocks? Also notice that I don't have the manual clock switching output or the output which tells me which clock is being used. The only "warning" I receive is the following from platform designer:

      So this should be a pretty easy model to make to reproduce this issue. Yes I am aware there is another warning about two frequencies being different. They are 50MHz and 52MHz which are within the 20% requirement. I have also tried making the frequency's the same and get the same refclk1 error.

      Any ideas?

      TomT...

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    Can you show your connections in the System View tab and the component connections that are enabled with the options you've selected in the Block Symbol tab?

  • ThomasTessier's avatar
    ThomasTessier
    Icon for Occasional Contributor rankOccasional Contributor
    3 years ago

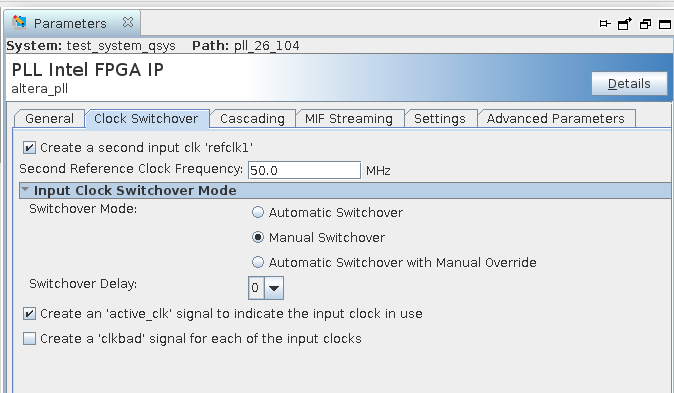

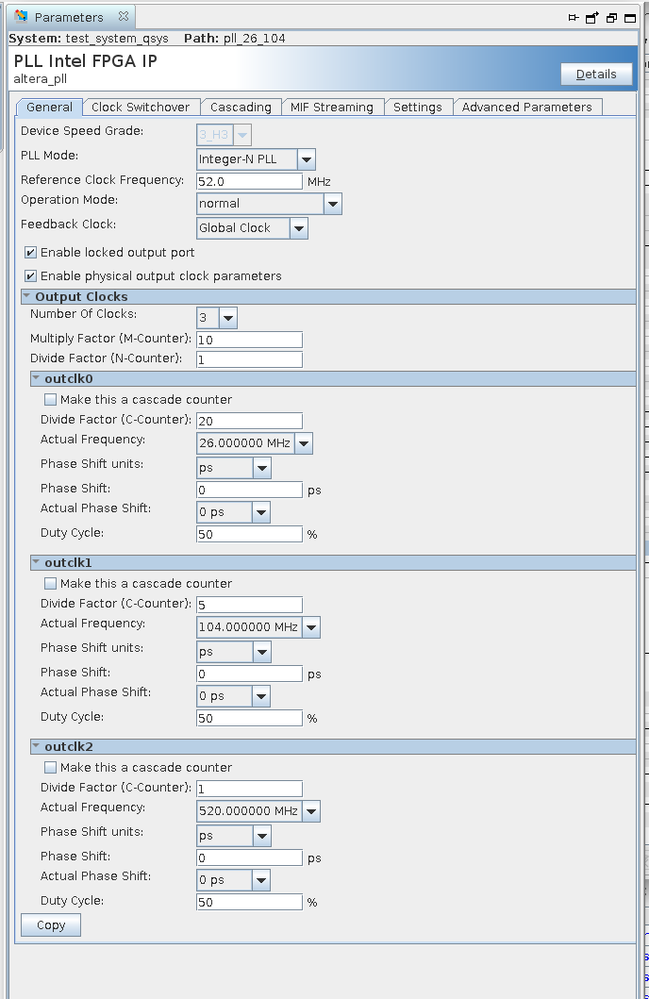

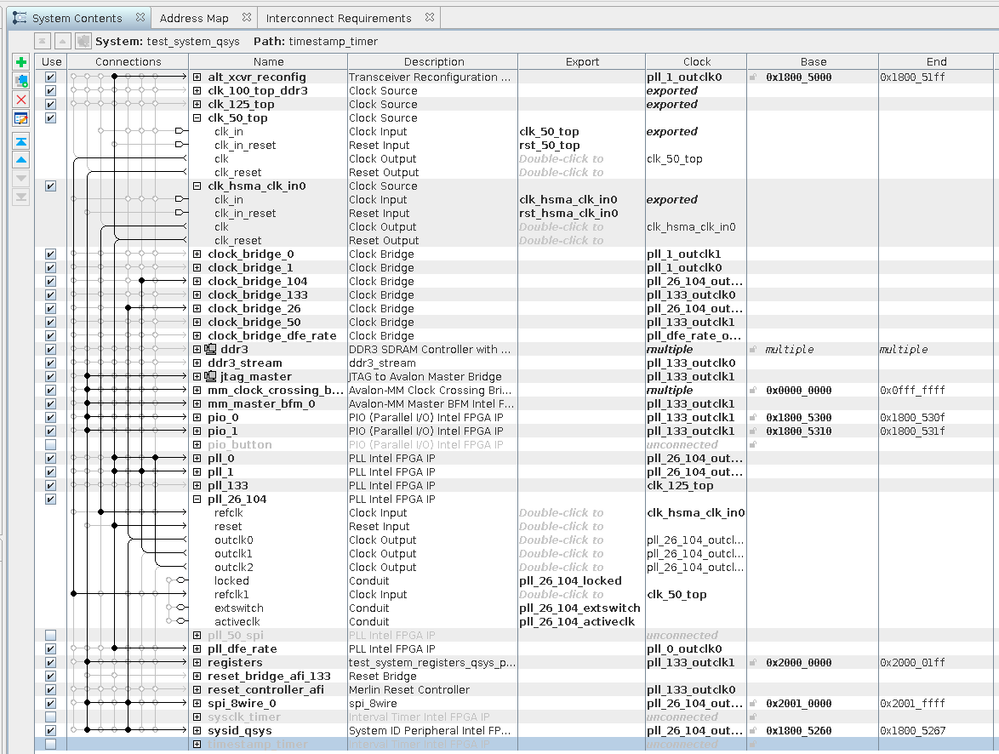

    So are those two tabs in Quartus or Platform Designer? I see the "System Contents" and "Parameters" tabs in Platform Designer. They are showed below. If this isn't what you wanted please let me know:

    The rest of the settings are defaults.

    TomT...

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    Spitballing here. Since your two reference clocks are different, you may be running into the issue mentioned here about the second reference clock frequency (though I'm just noticing you mentioned matching the frequencies and running into the same issue): https://www.intel.com/content/www/us/en/docs/programmable/683359/17-0/ip-core-parameters-clock-switchover-tab.html

    Have you considered using the clock control block instead? https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/ug/ug_altclock.pdf

    Sorry I was thinking of Pro. It's called System View there instead of System Contents. And you can access the Block Symbol tab from the View menu and then select a component to view all the component interfaces and individual signals.

    • ThomasTessier's avatar
      ThomasTessier
      Icon for Occasional Contributor rankOccasional Contributor
      3 years ago

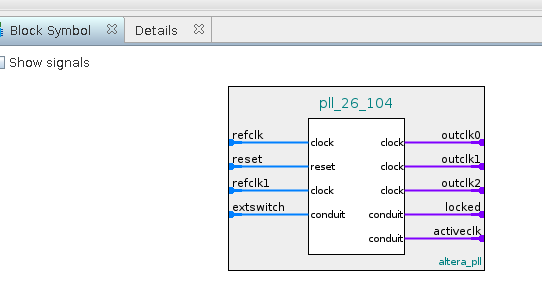

      Here is the block view, Platform Designer believes it will have 2 clocks and the switch controls. But after Fitter, I look at the technology view and that isn't the case. Furthermore the signals extswitch and activeclk are on my QSYS generated interface but are not connected to this PLL like I expected. So Platform Designer is happy but Quartus Fitter is not happy.

      Yes I did fudge it so both clocks had the same frequency into the tool and I got the same wrong result?

      I do have the clock control block in the design for these two clocks, but I think you are saying I can have both clocks coming into one clock control block. Let me investigate more and get back to you.

      TomT...

      • sstrell's avatar
        sstrell
        Icon for Super Contributor rankSuper Contributor
        3 years ago

        Are you saying that extswitch is just optimized away and not connected anywhere outside the system? You have it exported in Platform Designer so you have it connected to other logic or it's connected directly to an I/O pin. Are you saying that it's just gone from the design after compilation?

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    Do you have a bunch of clocks in your design? Maybe you are overusing the global routing channels. You could try taking non-critical clock domains off the global routing channels with the "Global Signal" assignment in the Assignment Editor set to No. Or perhaps at least overusing the GCLK networks that are fed by the particular clock in put pins listed here: https://www.intel.com/content/www/us/en/docs/programmable/683213/current/clock-input-pin-connections-to-gclk.html

    For example, clk3p can only feed GCLK0-3 and clk9p can only feed GCLK8-11, so if you're already using those global routing channels, the Fitter wouldn't be able to make a connection (though the error message for clk9p indicates it tried looking at everything other than GCLK8-11; weird). This is why global signal management in the Assignment Editor may help.

    Very strange problem. I don't know if I'm helping or just confusing matters.

    • ThomasTessier's avatar
      ThomasTessier
      Icon for Occasional Contributor rankOccasional Contributor
      3 years ago

      The real design has lots of clocks, but this was happening on a design where there is the ALTCLKCTRL block and one PLL with all signals coming from the IO; that is it 2 IP blocks and connections. I need these PIN assignments as that is what I have access to on the Development Board; so they are not changing.

      Let me package up the example and attach it to this case. It is so trivial it should work but I am baffled why the tool cannot do this. This might take me today to get approval to move this test design out of our secure area. Sorry don't have access to Quartus anywhere else for this project.

      Thanks,

      TomT...

  • ThomasTessier's avatar
    ThomasTessier
    Icon for Occasional Contributor rankOccasional Contributor
    3 years ago

    Any thoughts on why this simple example doesn't compile?

    TomT...

  • Mengzhe's avatar
    Mengzhe
    Icon for Occasional Contributor rankOccasional Contributor
    3 years ago

    Hi,

    Intel PLL only support directly input from REFCLK and cannot add a MUX between them.

    Here is passed project.

    BR,

    Mengzhe
