PLL is not fully compensated

pls see my comment below.

I am using:

• Quartus: 18.0.0 Build 614 Lite Edition
• Max10 10M40DAF256I7G

The used pins of the Max10 are:

• FPGA_CLK1 --> Max10 Pin_K6
• FPGA_CLK2 --> Max10 Pin_J11

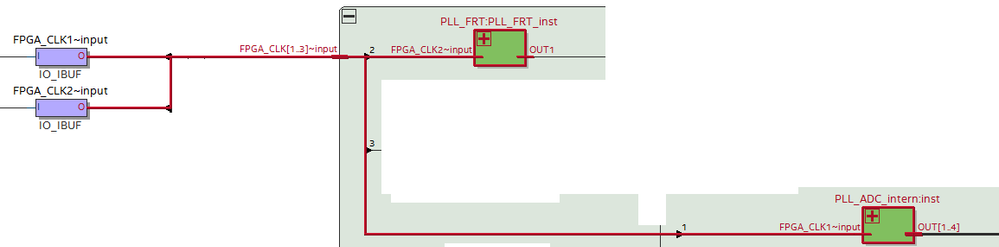

The design is shown above. At the moment there is NO special assignement done in order set a specific PLL to a specifif clock source!

Question:

• Do I need to assign a specific PLL to my clock input? If yes, how can I do it?

Thanks

Hello JwChin

thanks for the answer and the test-project. The problem I am dealing with, is that I get following warning message:

Warning: PLL "PLL_FRT:PLL_FRT_inst|PLL_FRT_altpll_0:altpll_0|PLL_FRT_altpll_0_altpll_nr22:sd1|pll7" input clock inclk[0] is not fully compensated and may have reduced jitter performance because it is fed by a non-dedicated input

The question here is:

• why I get this warning and how can I eliminate it?
• What is the meaning of "non-dedicated input" for my PLL if the fitter selects the right PLL?

Thanks

Hello

attached I send you a simple design with following warning messages:

Warning (15055): PLL "PLL_Main:PLL_Main_inst3|PLL_Main_altpll_0:altpll_0|PLL_Main_altpll_0_altpll_hl92:sd1|pll7" input clock inclk[0] is not fully compensated and may have reduced jitter performance because it is fed by a non-dedicated input

Info (15024): Input port INCLK[0] of node "PLL_Main:PLL_Main_inst3|PLL_Main_altpll_0:altpll_0|PLL_Main_altpll_0_altpll_hl92:sd1|pll7" is driven by FPGA_CLK1~inputclkctrl which is OUTCLK output port of Clock control block type node FPGA_CLK1~inputclkctrl

Warning (15058): PLL "PLL_Main:PLL_Main_inst3|PLL_Main_altpll_0:altpll_0|PLL_Main_altpll_0_altpll_hl92:sd1|pll7" is in normal or source synchronous mode with output clock "compensate_clock" set to clk[0] that is not fully compensated because it feeds an output pin -- only PLLs in zero delay buffer mode can fully compensate output pins

Warning (15064): PLL "PLL_Main:PLL_Main_inst3|PLL_Main_altpll_0:altpll_0|PLL_Main_altpll_0_altpll_hl92:sd1|pll7" output port clk[0] feeds output pin "clk~output" via non-dedicated routing -- jitter performance depends on switching rate of other design elements. Use PLL dedicated clock outputs to ensure jitter performance

Question:

• Why do I get those warnings?
• How to eliminate those warnings?

Thanks

Hello

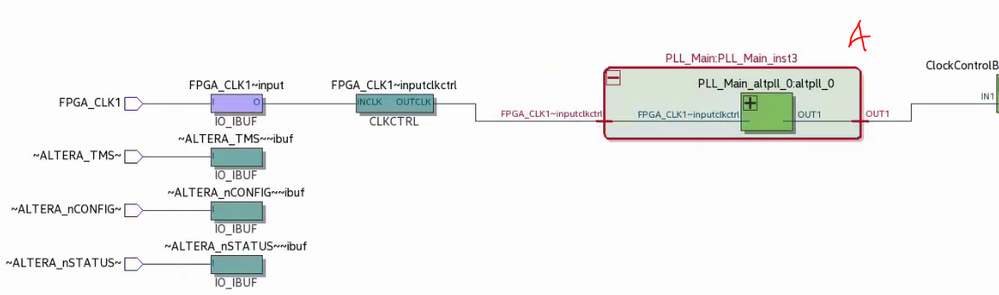

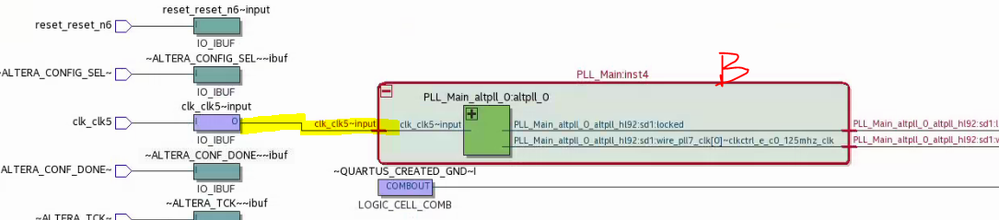

well I do not see any difference between A and B as you mentioned (see yellow marking in B). The only difference is that you are using clk5 - that's all. On the other side you changed the origin design and cut off the clock control block (see orign file at the top again). Of course without clock control block the warning dissapear but again it is a different design.

Therefore I am still confused about the warning message... could you please use my posted design and change it in order to get rid of the warning message? Therefore we have the same design from scratch and a solution would be clear.

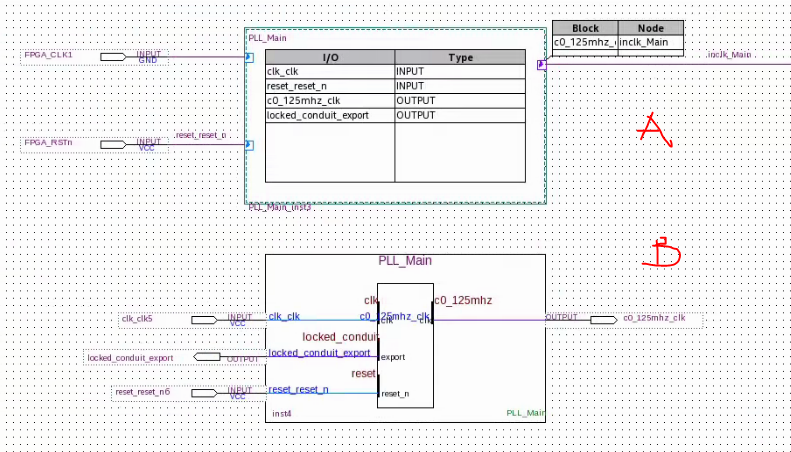

The PLL Block (see A) is the same as your B. The difference is that I insert it in the scheme as "Insert symbol as block".

thanks

Hello JwChin

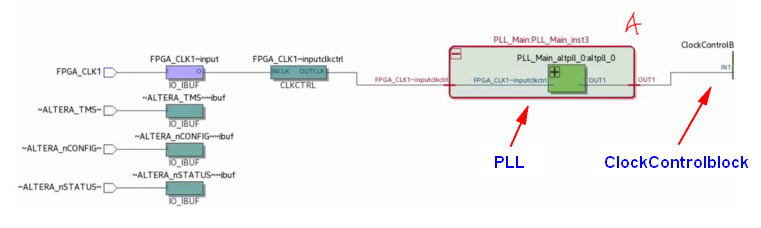

you say "connect the dedicated input clk pin directly to PLL (without CLKCTRL in between)" but in my design I have the PLL followed by the clock controlblock.

The idea is to power down the clock network after the PLL in order to minimize the power consumption. How would you do this?

Thanks

Hello JwChin

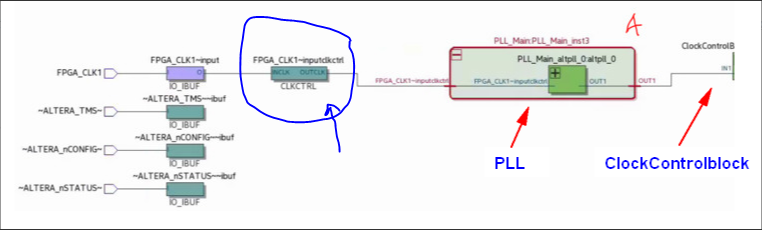

now, I think I understand the problem here. First of all the diagram you showed is the Post Fitting Map Viewer. This is quite importand because the other viewers does not show this contolblock at all!

Second, the showed controlblock is not part of my design and therefore I focused on the assignment editor. Here I have seen that the FPGA_CLK1 has been set as "global signal" and was enabled. Therefore

Quartus put in such controlblock before the PLL!

After disabling it the warning messages is gone and everything fine :)

Thank you!
