Pipeline parameter issues for LPM_Divide

There's still more of the data arrival path that you have not shown. What you have shown does not show the significant delay that may be causing the issue. Scroll down to show the rest.

And it would help to show your .sdc. Multicycle can easily screw things up if you don't use it properly.

Hi,
I performed test compilation of lpm_divide with given parameters and found that it can't achieve higer clock speed than about 190 MHz on Cyclone IV, speed class 6 with maximal lpm_pipeline, despite of huge resource usage. For comparison, a sequential divider, e.g. divider.v contained in stx_cookbook11/arithmetic (see GitHub - thomasrussellmurphy/stx_cookbook: Altera Advanced Synthesis Cookbook 11.0) achieves 170 MHz with less than 1/5 of lpm_divide logic resources.

Means, you are expecting too much from Cyclone IV. Need to run the respective logic with lower clock speed. Recent low cost FPGA, e.g. Cyclone 10 LP achieves similar performance.

What's your ADC sampling rate? If it's really that high (250 MHz), consider an alternative RMS topology that doesn't need continuous full speed division.

It's not clear that pipelining has anything to do with it. You have over 4 ns of data delay on this failing path. What would be really useful to see is the data arrival path section of that report to see where that extensive data delay is coming from. Also, make sure that your design is fully constrained for timing. Seeing your .sdc file would be useful as well.

Hey sstrell,

Thank you for your reply.

I made a screenshot of my timing analyser:

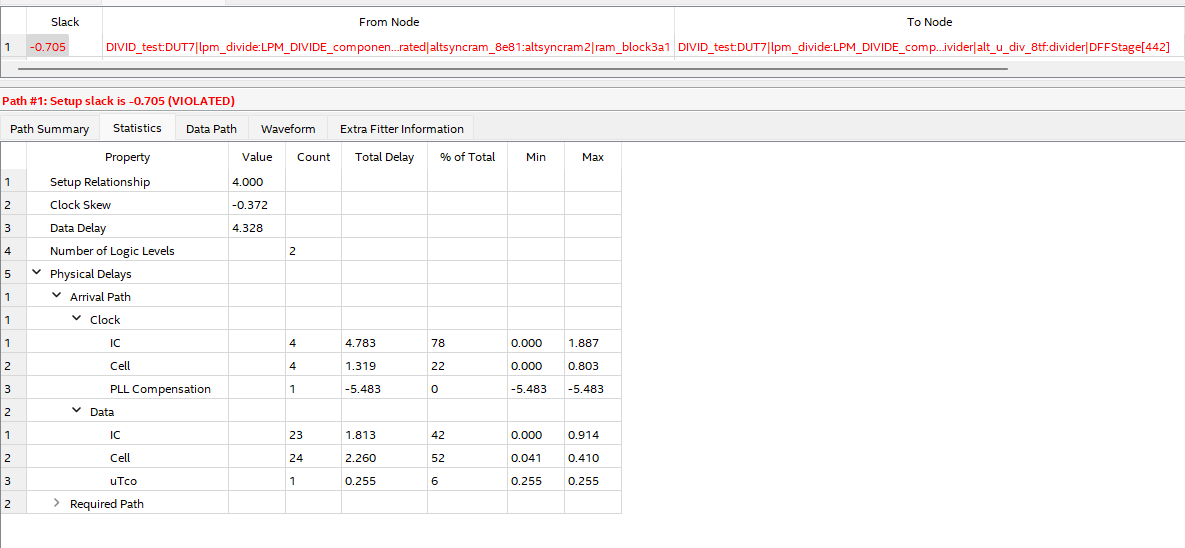

- First the statistics showing the delay coming from the cells.
- Data Arrival Path showing my clock delay 0.619 ns, then the delay for the data path 4.328 ns.
- .sdc file showing the constrained inputs and outputs, plus the generated PLL 250 MHz and set_multicycle_path for controlling the setup and hold for my outputs.

Unfortunately I can't really understand the cause of this timing error, I know it's coming from a lot of cells and ICs, but only from LPM_DIVIDE_component.

I also tried to add a component between the adder and divider to slow down the incoming data for one clock but it didn't work.

If you have any thoughts on how we can manage to control the timing error, I'd appreciate it.

thanks in advance

Hey sstrell,

in the zip file you'll find the .sdc file, the data path and the setup report. Hopefully this will help us find an answer to the timing error.

Hi FvM,

thanks for your replay and the Infos. I'm testing my design on the Cyclone IV FPGA first for other FPGA so i think you're right about expecting too much form it.

I have to use set_mulicycle_path for the outputs otherwise i'll have setup and hold violations. Is there something else i can do there ?
- set_multicycle_path -setup -end -from [get_registers {wr_fifo:DUT10|q_wurzel_s*}] -to [get_ports {q*}] 2
- set_multicycle_path -hold -end -from [get_registers {wr_fifo:DUT10|q_wurzel_s*}] -to [get_ports {q*}] 1

I tried yesterday what the report timing closure recommendations in Timing Analyzer and it showed me this:
- turn off auto shift register replacement in Analysis & synthesis settings.
- turn on physical synthesis for combinational logic in fitter Setting.

Surprisingly it worked and now im having f_max in worst-case up to 257.4 MHz.
Is it right to change the setting like that or what ?

thanks in advance

I can see that there is significant clock skew and possibly a large data delay, which might be causing the issue.

Please check the data path to see if there is a high fanout or a point where there is a substantial delay.

Could you share your design by archiving the project (Project > Archive Project) so that I can investigate it further.

Regards,

Richard Tan

Hi,
I have a comment beyond LPM_divide maximum speed question. I'm frequently implementing RMS measuring circuits, I wonder why you don't use a topology without divider. I have however difficulties to relate your RTL schematic to a usual RMS scheme which is either fixed integration window over n periods of signal fundamental or continuous recursive processing with low pass (equivalent of analog RMS detector circuit). In case of discontinuos processing, division is only performed once per window period or substituted by a multiply.

Hi,

thank you Richard and FvM for your replying.

I've written a testbench for my desgine and the results are great. Thanks to FvM, i know for sure that the lmp_divide with these parameters can't work with 250MHz, so i used anouther PLL output but with 125MHz and connected to this divide IP (of course before that with a component between 250MHz and 125MHz).
Now im facing the Timing Analysis and trying to understand the I/O Constraining and where i can find this Timing in the datasheet my FPGA, maybe i need also help with that too.

Thanks a lot again.

Kind regards
