I have a a differential clk come in to FPGA agilex7 F series
Want to use it as a single clk to the design
Iam using quartus 24 .1 pro
Which good practice is recommended ?
i see on a design a use of ALTDDIO_IN primitive . is this recomended ? is it still relevant for quartus 24 ?
Thx
Kikoss
Regular ContributorHello,
May I know what did you need to use a single ended clock in your design instead of differential clock?
Occasional ContributorHi
To be clearer , what i meant, is that i have a differential clk that comes into the fpga , from an adc converter
I want to use this clock for the ALT_LVDS ip , and this IP is able to receive only single ended clk as we see here
How to handle that in quartus ?
Thx
Super ContributorOccasional ContributorYes but suppose , I have on TOP level , clkin_p , clkin_n , and suppose i assign them to external pins
What to connect to inclock port of the adc contoller ?
Thx
Super ContributorWhy are you using separate clkin_p and clkin_n pins in the port definition? The usual way is to have a single ended logical port and assign a differential pin pair. You can use an ALT_INBUF_DIFF low level primitive to do the translation but it has no benefit for standard differential inputs.
Occasional Contributori will explain why using separate ports
i have an ADC convertere that send data to the FPGA

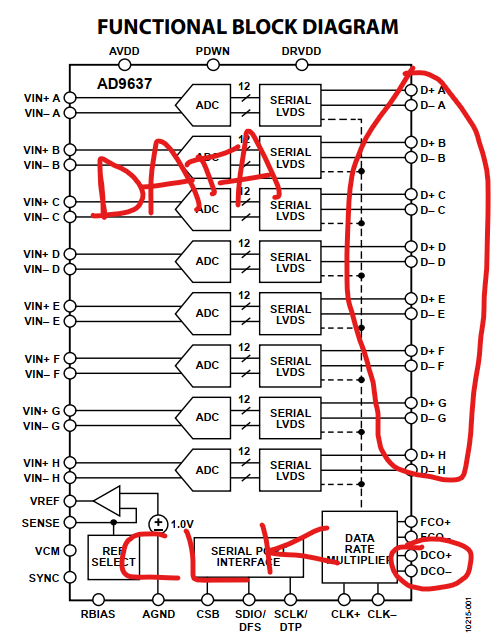

it interface from the ADC to the FPGA is . clk , and data as on the image
As you see the DCO CLK that go the FPGA is a differential pair .
So how to handle this differential pair on FPGA ? The ALT_INBUF_DIFF primitive is supported only for Stratix® III and Cyclone® III devices . and Iam not using those devices
THX
Super ContributorHi,
I know how an ADC LDVS interface looks like, I'm working with it since 15 years or so. Here's an example how I configure clock and data interface for AD9222, in this case I'm using FCO rather than DCO and a PLL to generate bit clock.
top entity port definition
Super ContributorOccasional ContributorHello
OK if i understand you correctly
Thats rigth ?
THX
Super ContributorOccasional ContributorYes , in the example i provide , I agree that this procedure should be applied to the FCO CLK or for the DCO CLK's that are connected to the inclock port (see figure)

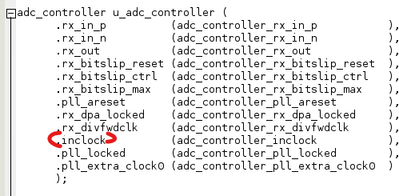

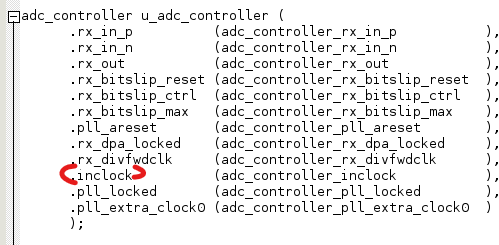

But , for the rx_in_p and rx_in_n, the ALT LVDS ip called adc_controller (in the figure above) handle differential P and N legs ... so I understand that we must declare P and N as well on the RTL as separate ports . rigth ?
