We are having issue getting data out of the CIC core during simulation.

1. What is the device that you are using? 5CSX

2. What is the Quartus version that you are using? 18.1 Standard.

3. Would you mind to further elaborate on the unknown output that you are referring to in the initial description? Some screenshots will be helpful for further understanding.

4. Mind share with me the CIC IP configuration ie .ip file will be helpful.

5. Just wonder if you have had any chance to try simulating the example design generated by the IP to see if the simulation is able to run? ONe of the things on the to do list

Regarding #5, how did you get the example to simulate. The example design did not include a Do file. I ran the TCL script it had created, but was unsure as to the next step. It would be nice if there was a readme file or other instructions, or did I just miss something.

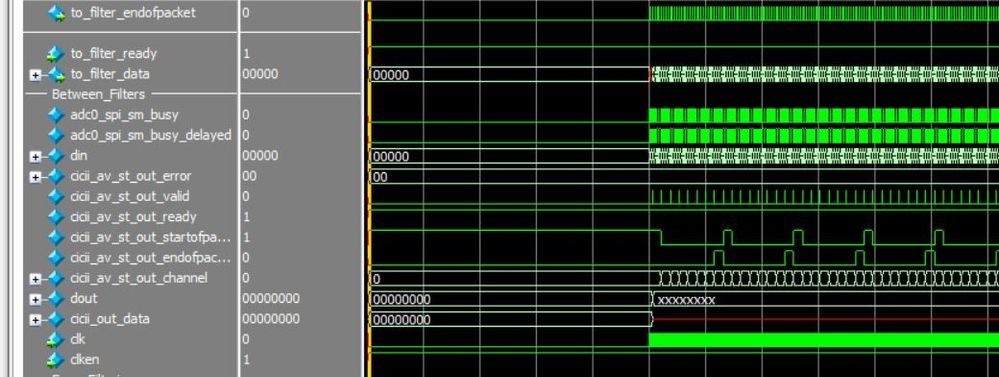

Here is a screen shot of the waveforms.

​Do not close the case! The example design simulates, but the real design does not! We noticed that the example design throughs error codes! We went into the example codes BFM and set the "Forward pressure" variable to False, which disabled the "random" functionality, and caused the SOP and EOF inputs to behave normally, and eliminated the error - IN THE EXAMPLE DESIGN. But we still are not getting data out of the real design, though our SOP and EOF match the example (once random was turned off in the example).

Regarding the errors, they are error codes put out by the core, due to SOP and EOP relationship cased by the FORWARD_PRESSURE defined as "TRUE"

We changed the FORWARD_PRESSURE definition to "FALSE" and the example simulation worked better.

Here is the code from the cicii_example_design_test_program.sv that causes the randomness of the SOP and EOP signals.

fork

begin

while(1) begin

read_input_data_files();

if(`FORWARD_PRESSURE=="TRUE")

begin

src_transaction.idles = ($unsigned($random()) % 10);

end else begin

src_transaction.idles = 0;

end

src_transaction.send_data();

if(source_finished == 0) begin

@(`SRC.signal_min_transaction_queue_size);

end

end

end // source_data_thread

After comparing the two simulations, we noticed differences in the clock rates (ratio between clock frequency and sample rate). After playing with the clock frequency we are now starting to get data out, but only on one channel's time slot.

Can you provide any guidance and/or documentation on setting the clock and sample rates.

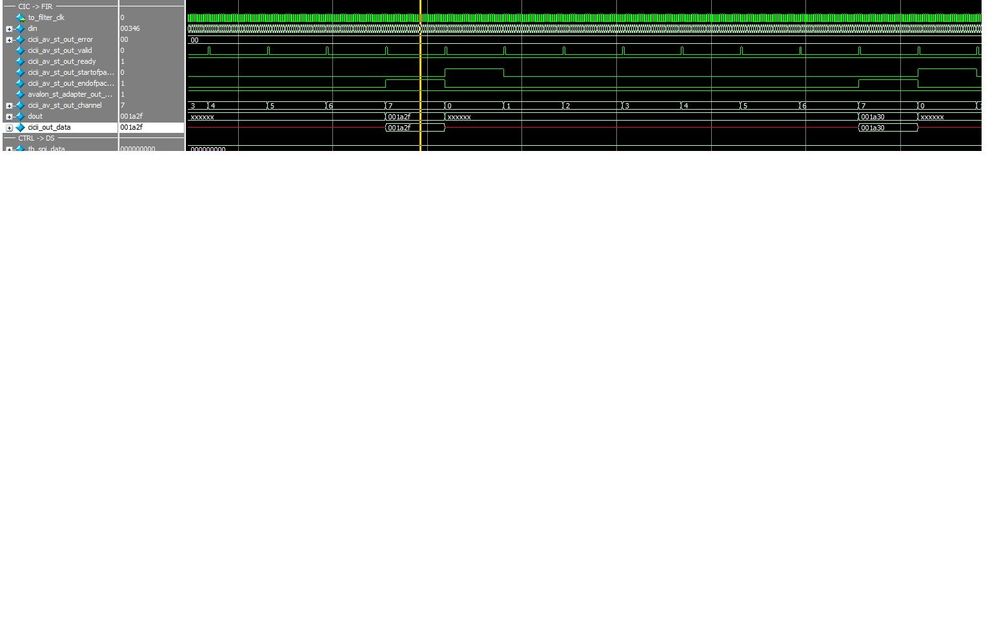

Here is the latest waveform that shows data only coming out on channel 7

​Some other oddities. Jon has tried to generate test bench for his QSYS design and it fails to generate the TB. I have the same design (older version) and I can generate the test bench without issue. Can you try this on the design that you have.

.

​The other thing we are looking at is how the BFMs are being called in the example versus the real design.
