MCDMA/PCIe - what is frequency of coreclkout_hip?

Hello,

In the user guide, with H-tile types - Gen3x8, application clock or coreclkout_hip frequency = 250 MHz. But I could not verify it in the TA clock report.

Instead, I could see

"dut|dut|hip|altera_pcie_s10_hip_ast_pipen1b_inst|altera_pcie_s10_hip_ast_pllnphy_inst|g_phy_g3x8.phy_g3x8|phy_g3x8|xcvr_hip_native|ch0"

and its frequency is 500 MHz.

It matches the constraints below:

set clk_source_freq "250.0 MHz"
set datarate_100m  80
...
# 500M for  aibx2 clocks if BW less or equal 64G
} elseif { [expr $datarate_100m * 8] <= 640 }  {
  dict set multiply_factor_dict aib_internal_div 2
  dict set divide_factor_dict   aib_internal_div 1
  dict set multiply_factor_dict clkout 1
  dict set divide_factor_dict   clkout 1
}
...

create_generated_clock \
              -name  $inst|xcvr_hip_native|ch${channels} \
              -source $no_inst_tx_internal_div_reg \
              -master_clock $tx_internal_div_reg_name \
              -multiply_by [dict get $multiply_factor_dict clkout] \
              -divide_by   [dict get $divide_factor_dict   clkout] \
              $no_inst_tx_clkout -add

I think this clock is transport-layer clock and it is used to derive application clock/ coreclkout_hip / pld_clk250 as in the code below

assign  coreclkout_hip = enable_512adapter_hwtcl? pld_clk250                : coreclkout_hip_wire    ;
...

altera_ep_g3x16_avst512_io_pll_s10 altera_avst512_iopll (
		.outclk_0      (pld_clk250),
		.refclk        (coreclkout_hip_wire),
		.rst           (~pin_perst),
        .locked        (iopll_locked),
        .permit_cal    (serdes_pll_locked_wire)
	);

Do I understand it correctly?

If it is correct, then, it is confusing to me. Here is what I found.

I use application clock / coreclkout_hip as the refclk of PLL to derive another clock domain (200 MHz). The setting of PLL is

  • Reference clock = 250 MHz
  • Output clock = 200 MHz

However, when re-check the TA clock report:

  • Reference clock = 500 MHz
  • Output clock = 400 MHz

what is wrong here?

My platform is Stratix 10 MX | Quartus Prime Pro ver 22.2

Thank you,

TN

  • Hi,


    I think that indicates the Clock Fmax.
    If you changed the optimization Mode from Balanced to Aggressive Area you can achieve the 500MHz.

    The Fmax specification is based on the fast clock used for serial data.

    The interface Fmax is also dependent on the parallel clock domain which is design dependent and requires timing analysis.

    Hope this clarified.

    Regards,

    Wincent_Intel

27 Replies

  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor

    Hi,


    The frequency of coreclkout_hip is for gen3x8 is 250 MHz as per mention in the user guide.

    Are you using the design example provided in Quartus ?


    Can you check if you enable two clock together ?


    Regards,

    Wincent_Intel


    • bibo's avatar
      bibo
      Icon for New Contributor rankNew Contributor

      Hi Wincent,

      I used the example design provided in Quartus. Running PIO transfer, gencheck, loopback seem OK.

      Then, I want to insert our accelerators to receive data from the HOST, doing computations, and send back results to the HOST.

      I want to run these accelerators at a lower frequency (200MHz), so I pulled PLL core which uses coreclkout_hip as the reference clock.

      But when re-checking TA clock report, it showed the output clock freq = 400 MHz and refclk = 500 MHz


      @Wincent_Altera wrote:

      Can you check if you enable two clock together ?


      Could you clarify this? I could not see where to enable two clocks when pulling the MCDMA IP Core.

      There is only 1 selection regarding frequency: "PCIe gen3 x8 - 250 MHz"

      Thanks,

      TN

      • Wincent_Altera's avatar
        Wincent_Altera
        Icon for Regular Contributor rankRegular Contributor

        Hi,


        Can you please provide me the printscreen of the TA report that mentioning 500 MHz ?

        Regards,

        Wincent_Intel

  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor

    Would expect to see actual PLL frequencies in timing analysis report under "clocks" and also in synthesis report under Resources/PLLs.

    • bibo's avatar
      bibo
      Icon for New Contributor rankNew Contributor

      Hi,

      Thanks for your reply!

      That is why I was confused.

      Under "Clock" report in Timing Analysis, it showed 'output_clk" of PLL is 400 MHz.

      Meanwhile, my setting ratio of PLL is 'refclk/output_clk' = 250MHz/ 200MHz

      That's why I thought refclk frequency should be: 500 MHz, and it violates the user guide where the frequency should be 250 MHz.

      Thanks and Regards,

      TN

      • Wincent_Altera's avatar
        Wincent_Altera
        Icon for Regular Contributor rankRegular Contributor

        Hi,


        Glad that you get your answer.

        So do you still have any further questions on this forum case ? Or everything is nice ?

        if yes, I shall close this case from my place and leave this thread to the public community.


        Regards,

        Wincent_Intel

  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor

    Hi,


    Apologize for late reply, as I am looking at the design provided by you.

    I am able to replicate your issue based on the MCDMA design provided in the IP catalog of H-tile.

    I am getting the same result as yours which is 500MHz.


    The next action I will do is to raise an internal ticket to the responsible team.

    Temporarily we do not have any solution to this issue, expected to be fixed in next release version of Quartus.

    I will update you if there is any update from the related team.


    Regards,

    Wincent_Intel


    • bibo's avatar
      bibo
      Icon for New Contributor rankNew Contributor

      Hi Wincent,

      Thanks for the confirmation and your support.

      I think you can close the case now.

      Regards,

      TN

  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor

    Hi,


    Thanks for your understanding. I just close in my support portal.

    This thread still remain for public command, I will keep you in post if there is any update related team.


    If you have a new question, feel free to open a new thread to get support from Intel experts.

    If you feel your support experience was less than a 9 or 10,

    please allow me to correct it before closing or let me know the cause so that I may improve your future support experience.


    Regards,

    Wincent_Intel


    • Wincent_Altera's avatar
      Wincent_Altera
      Icon for Regular Contributor rankRegular Contributor

      Hi,

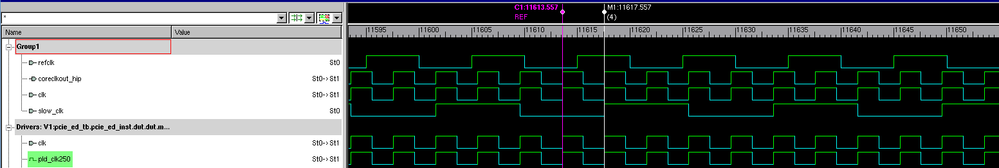

      The input clock frequency of H-Tile MCDMA(intel_pcie_mcdma) is 250 MHz and the IP runs on 250MHz only. Please refer the attached snippet.

      The paths shown in the timing report are the QHIP paths and not inside MCDMA.

      Time period = 4ns. Clock Frequency(dut.dut.mcdma.clk)= 250 MHz.

      • bibo's avatar
        bibo
        Icon for New Contributor rankNew Contributor

        Hi Wincent,

        Sorry for my late reply due to holiday.

        From your attached snippet, one thing can be confirmed is MCDMA clock is 250 MHz.

        Your statement:


        @Wincent_Altera wrote:

        The paths shown in the timing report are the QHIP paths and not inside MCDMA.


        And because the reference clock of PLL is taken from "coreclkout_hip".
        It means the reference clock is QHIP paths and it is not 250 MHz, isn't it?

        Regards,

        TN
