Executing a application/executable file on customized boot image for DE1SOC board

Hello,

I'm trying to execute a simple led switch application on customized boot image.

PFA screenshot of the error received.

Can anyone help me diagnose what the issue is?

Thanks,

snehal_p

  • tehjingy_Altera's avatar
    tehjingy_Altera
    3 years ago

    Hi

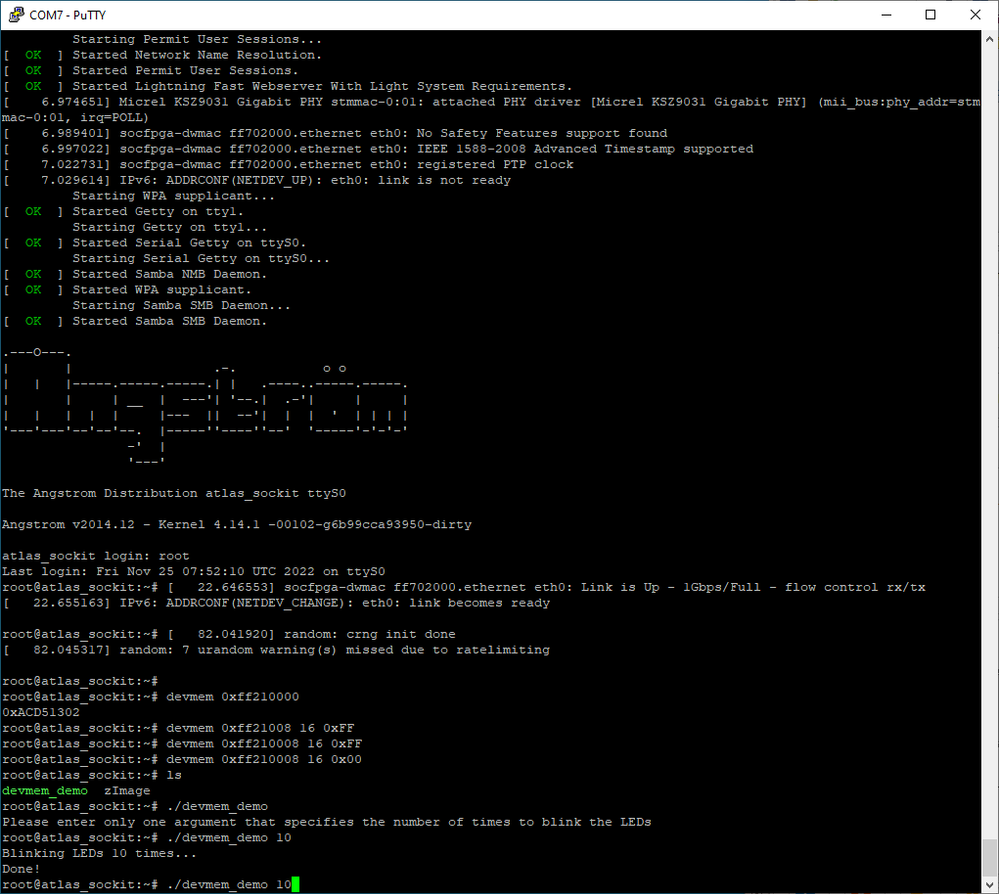

    I have tried out your zImage and able to run the led application successfully.

    Please find the screenshot below:

    Did you flash the FPGA configuration before booting into the linux environment?

    As for the fitter error, you will need to run both of the TCL script below (located:soc_system\synthesis\submodules):

    hps_sdram_p0_parameters.tcl

    hps_sdram_p0_pin_assignments.tcl

    Regards

    Jingyang, Teh

54 Replies

  • tehjingy_Altera's avatar
    tehjingy_Altera
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi snehal_p


    Could you share the steps that was used to compile the application file?

    What are the environment details run on the DE1SOC board?


    Regards

    Jingyang, Teh


  • tehjingy_Altera's avatar
    tehjingy_Altera
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi snehal_p


    Sorry for the late reply as there was a public holiday.


    Have you tried running the led application on the non customized image? Is it working?

    What are the changes you made to the image?

    Did you made any changes to the application code?If yes could you share with me the changes you made?

    Did you compile the application on the user space of the non customized image?


    Regards

    Jingyang, Teh


    • snehal_p's avatar
      snehal_p
      Icon for Contributor rankContributor
      4 years ago

      Hi Jingyang,

      I tried running the application on non customized image ,it works.

      Also with customized image it gave output once please find attached screenshot , but again when I try executing it gives error.

      Thanks,

      snehal_p

  • tehjingy_Altera's avatar
    tehjingy_Altera
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi Snehal

    The application that was run on the customized image was it a copied version from the non-customized image?

    What are the major changes made to the customized image?

    Regards

    Jingyang, Teh

    • snehal_p's avatar
      snehal_p
      Icon for Contributor rankContributor
      4 years ago

      Hello Jingyang,

      The application that was run was the demonstration project led switch application. Customization I changed the linux version.

      PFA screenshot of the error received when I execute the application file.

      Thanks,

      snehal_p

    • snehal_p's avatar
      snehal_p
      Icon for Contributor rankContributor
      4 years ago

      Hello Jingyang,

      Yes, I followed the same steps. It is still giving issues.

      Also I'm facing issues in launching DS5 eclipse despite of successful installation. Can you help me with the linux commands to diagnose what the actual issue is.

      Thanks,

      snehal_p

  • tehjingy_Altera's avatar
    tehjingy_Altera
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi snehal_p


    Just to confirm, you did not make any changes to the uboot right?

    Could you share your u-boot.scr of the custom image?


    Right now I am suspecting it could be some privilege issue that causes the application to fail to read from the h2f bridge.


    Could we try accessing the memory region from the linux user space manually to check the privilege in linux user space?


    In the linux user space do you have any tool to read to write memory region like "memtool" "devmem"?

    Could you try the following steps:

    1.Write to memory address 0xFF2010008 with value 0xFF

    2.Observe the led should turn on.

    3.reading the memory address 0xFF2010008 it should be the value 0xFF

    4.Write to memory address 0xFF2010008 with value 0x00

    5.Observe the led should turn Off.

    6.reading the memory address 0xFF2010008 it should be the value 0x00


    Regards

    Jingyang, Teh




    • snehal_p's avatar
      snehal_p
      Icon for Contributor rankContributor
      4 years ago

      Hello Jingyang,

      PFA uboot.scr

      I'm new to using SOC and linux, can you please help me with steps to write to hps memory region

      Thanks,

      snehal_p

  • tehjingy_Altera's avatar
    tehjingy_Altera
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi snehal_p


    You could try one of this command "memtool" or "devmem".

    Try entering the command in the linux environment on your target and see if either command is available in your target environment.


    Next try command below to read :

    devmem 0xFF2010008 16

    memtool md -l 0xFF2010008



    Next try command below to write:

    devmem 0xFF2010008 16 0xFF

    memtool mw -l 0xFF2010008 0xFF



    Regards

    Jingyang, Teh


    • snehal_p's avatar
      snehal_p
      Icon for Contributor rankContributor
      4 years ago

      Hello Jingyang,

      Thanks, I tried with the commands but it is giving invalid argument.

      Also I tried executing file and every application file I have generated worked well, PFA screenshot and debug log, but when I executed it again it is giving issues.

      PFA debuglog and help me analyze the issue.

      Zimage used is customized .

  • tehjingy_Altera's avatar
    tehjingy_Altera
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi Snehal


    I see that you are mounting a device "mmcblk0p1" is this an sd card or a flash device?

    Are the files in the mmcblk0p1 the same through each start?

    If so, this could be the reason. The files needs to be compile for each change in linux environment.


    Regards

    Jingyang, Teh


    • snehal_p's avatar
      snehal_p
      Icon for Contributor rankContributor
      4 years ago

      Hello Jingyang,

      "mmcblk0p1" is a sd card.

      Files in sdcard are all compiled for each change in linux environment.

      As you see in the debug log that I got output for led switch program and all the executable files gave respective output, but when I reprogram FPGA or HPS or both it starts giving the unhandled fault error.

      Thanks,

      snehal_p

  • tehjingy_Altera's avatar
    tehjingy_Altera
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    HI Snehal_p


    Please give me sometime while I try to reproduce the issue on my side here.

    I find it weird that it could run once only each time.

    Let me try out the steps from the website and try making changes to it whether i could reproduce the issue on your side.


    Regards

    Jingyang, Teh


    • snehal_p's avatar
      snehal_p
      Icon for Contributor rankContributor
      4 years ago

      Hi Jingyang,

      Thanks, application file does not run each time we program it executed few times.

      Thanks,

      snehal_p

  • tehjingy_Altera's avatar
    tehjingy_Altera
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi Snehal_p


    Sorry that I do not have an update at the moment.

    Please give me some more time to work on this.

    I will try to give you an update by the end of Friday this week.


    Regards

    Jingyang, Teh
