DisplayPort Only Connects to Windows not Linux

Hi,

I am trying to use the DisplayPort sample design on a Stratix 10 board. I have implemented the exact sample project from Intel with the Bitec daughter card but am seeing some issues.

When I plug a Windows PC (7 or 10) into the daughter card it immediately performs the link training and connects to the Operating System. Using SignalTap I can see data flowing out of the Clkrec core (VSYNC, HSYNC, DE, Data). When I plug in a monitor to the TX port I can see a windows desktop as if it were a second monitor to my Windows PC desktop.

When I plug a linux machine (or same hardware but dual boot) into the DisplayPort RX port, Linux recognizes the DisplayPort sink as a monitor. However I am not seeing any data come out of the Bitec Clkrec.

Linux is reporting that it found valid modes for the DisplayPort monitor.

Can you help me figure out why the DisplayPort core has no trouble connecting to Windows but has trouble connecting to Linux?

Setup:

OS: CentOS 6

Graphics Card Vendor: NVIDIA

DisplayPort Core: GPU mode enabled, AUX debug enabled, core is set for HBR3 and 4k60 resolution.

Tool: Quartus 19.1

Thanks!

Daniel

33 Replies

  • Deshi_Intel's avatar
    Deshi_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi Daniel,

    I presume your system setup is like below. Correct me if I am wrong

    • win/linux CPU -> DP Rx -> DP Tx -> monitor

    Does connecting win CPU -> monitor directly (via DP cable) works ?

    Do you have S10 GX dev kit board to try out to rule out potential board setup issue ?

    Have you try different brand or shorter DP cable to check for potential signal integrity concern ?

    Are you using below Stratix 10 Intel FPGA DisplayPort design example ?

    I believe it's not about the OS difference issue but rather on the graphic card issue

    • I presume you are using different graphic card on Win and Linux machine ?
    • Have you compare the spec between these 2 graphic card to find out the difference that maybe the root cause
    • Have you try to play around with Nvidia graphic card setting to see if it helps ? (Like BPC setting, lower down video resolution, disable adaptive sync and etc)
    • Also do you really need HBR3 (8G datarate) for 4Kp60 resolution ? Can you try change DisplayPort IP to 4G datarate channel to see if works ?
    • If you are using DP example design, can you dump out the MSA log as per attached 4k support sample screenshot ?

    Thanks.

    Regards,

    dlim

    • DZuck1's avatar
      DZuck1
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago
      Hi Dlim, I did not have access to the hardware today but will try to get the logs you are asking for tomorrow. As for the setup question. I am using a dual boot PC that boots both into Windows and Linux. The exact same graphics card, DisplayPort cable and Bitec RX port are being used for the test. The only variable here is the OS which is why I am confused why it doesn’t work. The hardware all works with Windows. I will also try to grab the AUX logs and send that to you if that is of any help. Thanks, Daniel
      • Deshi_Intel's avatar
        Deshi_Intel
        Icon for Regular Contributor rankRegular Contributor
        6 years ago

        Hi Daniel,

        Thanks for the clarification on dual OS boot using same graphic card. That means your hardware setup should be fine and no signal integrity concern.

        In this case, I don't think sending debug log to me will be any useful anymore. The most we can prove is graphic card is not sending correct data to DP Rx in Linux OS.

        • DP Rx is just a reception IP. DP Rx cannot control how DP Tx source (graphic card) transmit AUX data to DP Rx.
        • Something is funny happening on Linux OS.

        The direct relation that I can think of between graphic card interaction with OS would be graphic card driver.

        • The easiest way will be to either upgrade or downgrade Nvidia Linux OS driver installation and hope that it fix the issue
        • Or the other possibility is you configure different graphic card setting in Linux OS vs Win OS that somehow cause the failure. You may want to cross check the setting between 2 OS.
        • Finally if you had confirmed the graphic card setting used in both OS is the same but video output failure still happened. Then my suggestion is you can raise this issue back to Nvidia to seek their help in understanding graphic card driver difference between Win OS and Linux OS.

        Thanks.

        Regards,

        dlim

  • DZuck1's avatar
    DZuck1
    Icon for Occasional Contributor rankOccasional Contributor
    6 years ago

    Hi Dlim,

    I don't have a unigraf analyzer but can provide the AUX logs that the NIOS II prints out. Would that be useful? Would you like both the working Win7 and not working CentOS logs?

    Thanks,

    Daniel

  • DZuck1's avatar
    DZuck1
    Icon for Occasional Contributor rankOccasional Contributor
    6 years ago

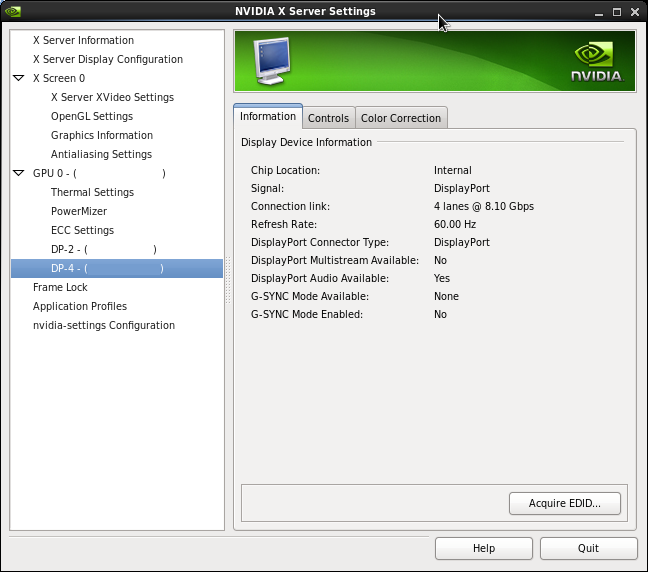

    Here is the NVIDIA Control Panel showing that the DP output is using 4 lanes all at 8.1 Gbps.

    • DZuck1's avatar
      DZuck1
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      Hi Dlim,

      1. I have tried this and it didn’t seem to make a difference
      2. I am recompiling with the lower data rate set to try it out. Are the only changes to the IP core data rate settings or do I need to make changes in the RTL as well?
      3. I am downloading Quartus Pro v20.2 (Stratix 10 file is over 20 GB) and will try that out once it finishes downloading.
      4. We are targeting and doing the bulk of the testing with an NVIDIA RTX 6000 Graphics card. I have also been testing with a Geforce 660 Ti. The monitor I am using in conjunction with the IP core is a Dell U2718Q.
      5. The logs are attached.

      The AUX logs are for linux and windows for both the GeForce 660 and the RTX 6000. The only combination that has data flowing out of the clkrec core is the Geforce 660 running win7.

      Thanks,

      Daniel

      • DZuck1's avatar
        DZuck1
        Icon for Occasional Contributor rankOccasional Contributor
        6 years ago

        Hi dlim,

        Installing the Stratix 10 device file for Quartus Pro v20.2 is taking longer than I expected. It is 20 GB and exceeds the download file size allowed by my company. Are there plans to break up these larger device files into multiple parts in the future releases?

        Thanks,

        Daniel

  • Deshi_Intel's avatar
    Deshi_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi Daniel,


    Sorry, I am back. I have been reading your recent update and looks like it's not just simple Wins vs Linux issue anymore.

    • 660 TI (Win 7) - pass with video output
    • 660 TI (Ubuntu) - failed with no video output ?
    • RTX 6000 (Win 10) - failed with no video output ?
    • RTX 6000 (CentOS) - failed with no video output ?


    1. For Quartus v20.2 compilation error issue
    • This looks like some Quartus internal error which is totally new issue here.
      • Does it happen in your own design only or also affect DisplayPort example design ?
    1. For no video output debug
    • I don't have your exact graphic card spec but google search review some info below
      • GPU (Nvidia GTX 660Ti)
        • DP version ? (suspect it's DP v1.2)
        • 4096x2160 (including 3840x2160) at 60Hz supported over Displayport
      • GPU (Nvidia RTX 6000)
        • DP v1.4, support 4 DP connector port
        • 4096x2160 @ 120Hz, 5120x2880 @ 60Hz
      • Dell monitor U2718Q
        • DP v1.2
        • 3840 x 2160 at 60 Hz
      • Nvidia RTX 6000 never works could be due to it's too advance and it maybe exercising some new DP feature that's not supported by Dell Monitor that's just supporting DP v1.2.
        • For instance, DP v1.2 only support till HBR2 (5.4Gb/s). So, it doesn't make sense to configure Intel FPGA DP IP to use HBR3 (8.1Gb/s) setting.
        • I also don't think this DELL monitor support adaptive sync feature. Pls disable it in GPU card setting. Anyway, Intel FPGA DP IP doesn't support Nvidia G-sync feature, we only support AMD adaptive sync feature but it needs to be special enabled in Intel FPGA DP IP
      • You are also stressing both Nvidia 660 TI GPU and Dell monitor since their max video resolution capability is also just 4kp60
        • Not sure if you had try out below debug option ?
        • Changed Intel FPGA DP IP data rate setting from 8.1Gb/s to 5.4Gb/s
        • Try out different bit per colour (bpc) setting in Intel FPGA DP IP. Also do you know what's the bpc setting in GPU card ?
        • Thanks for sharing the AUX log but it's very hard to read without the decoder aid. Do you manage to dump the MSA log file for the failure case as well ?


    Thanks.


    Regards,

    dlim


    • DZuck1's avatar
      DZuck1
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      Hi dlim,

      I am happy that you are back and the forum is back up and running.

      When I compile the sample design in Quartus v20.2 it does not have this issue. My project started in v19.1 then migrated to v19.2 and then v20.2. The project never had any compilation issues remotely similar to what I am seeing in v20.2.

      I tried enabling Adaptive Sync in the NIOS code, per the sample design user guide, but it had no effect.

      I am not sure why the dell monitor's version of DP plays a role in the FPGA's version of DP. The setup I test with is either:

      • monitor<-GPU->FPGA
      • GPU->FPGA->Monitor

      The issue is between the GPU and the FPGA.

      I tried recompiling the design with the only the lower rates enabled (2.7 Gbps and below) but I am not sure that I did it right. Is the only change i need to make the DP RX IP Core drop down in Platform Designer or do I need to make RTL changes as well (param to bitec reconfig module, etc.).

      As for the MSA log file, are you referring to the print out on the screen when the 's' key is pressed?

      Thanks,

      Daniel

  • Deshi_Intel's avatar
    Deshi_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    HI Daniel,


    I drop you a private message.


    I hope you can see it. Let me know if there is an issue in viewing private message as Intel forum system just got upgraded.


    As for lower video resolution control - you just need to set Intel DP IP datarate to HBR2 (5.4G). No other RTL change is required.


    As for the MSA screen shot. yup. Just type "s" and hit "enter" key in NIOS II shell terminal. I can see you already have it in the end of your previous working Nvidia 660 Ti Win 7 log file. I would like to see the MSA log for the failing case.


    Thanks.


    Regards,

    dlim


    • DZuck1's avatar
      DZuck1
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      Hi dlim,

      I was able to see the private message. I will respond to that directly.

      I will work on recompiling with the lower resolution and printing out the MSA tomorrow. From my memory, the VB-ID and MSA lock are both 0 and the BER is a high number for all of the lanes.

      Thanks,

      Daniel

    • DZuck1's avatar
      DZuck1
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      I will test out the compilation with the lower link rate (HBR2).

      When I try to dump out the MSA from the NIOS when plugged into Linux I sometimes run into a problem where the NIOS has become unresponsive. The DP Debug AUX trace stops printing mid line and does not respond to any commands.

      I was able to print out this MSA dump:

      ------------------------------------------
      ------ TX Main stream attributes -----
      ------------------------------------------
      --- Stream 0 ---
      MSA lock : 0
      VB-ID : 19 MISC0 : 20 MISC1 : 00
      Mvid : 138E5 Nvid : 8000
      Htotal : 0000 Vtotal : 0000
      HSP : 0000 HSW : 0000
      Hstart : 0000 Vstart : 0000
      VSP : 0000 VSW : 0000
      Hwidth : 0000 Vheight : 0000
      CRC R : 0000 CRC G : 0000 CRC B : 0000
      --- Stream 1 ---
      MSA lock : 0
      VB-ID : 00 MISC0 : 00 MISC1 : 00
      Mvid : 0000 Nvid : 0000
      Htotal : 0000 Vtotal : 0000
      HSP : 0000 HSW : 0000
      Hstart : 0000 Vstart : 0000
      VSP : 0000 VSW : 0000
      Hwidth : 0000 Vheight : 0000
      CRC R : 0000 CRC G : 0000 CRC B : 0000
      ------------------------------------------
      -------- TX Link configuration -------
      ------------------------------------------
      Lane count : 0
      Link rate : 0 Mbps
      ------------------------------------------
      ------ RX Main stream attributes -----
      ------------------------------------------
      --- Stream 0 ---
      VB-ID lock : 0 MSA lock : 0
      VB-ID : 19 MISC0 : 00 MISC1 : 00
      Mvid : 0100 Nvid : 0000
      Htotal : 0000 Vtotal : 0000
      HSP : 0000 HSW : 0000
      Hstart : 0000 Vstart : 0000
      VSP : 0000 VSW : 0000
      Hwidth : 0000 Vheight : 0000
      CRC R : 0000 CRC G : 0000 CRC B : 0000
      --- Stream 1 ---
      VB-ID lock : 0 MSA lock : 0
      VB-ID : 00 MISC0 : 00 MISC1 : 00
      Mvid : 0000 Nvid : 0000
      Htotal : 0000 Vtotal : 0000
      HSP : 0000 HSW : 0000
      Hstart : 0000 Vstart : 0000
      VSP : 0000 VSW : 0000
      Hwidth : 0000 Vheight : 0000
      CRC R : 0000 CRC G : 0000 CRC B : 0000
      ------------------------------------------
      -------- RX Link configuration -------
      ------------------------------------------
      CR Done: 0 SYM Done: 0
      Lane count : 1
      Link rate : 1620 Mbps
      BER0 : 17F0 BER1 : 11A4
      BER2 : 076C BER3 : 0DD8

      • DZuck1's avatar
        DZuck1
        Icon for Occasional Contributor rankOccasional Contributor
        6 years ago

        HI dlim,

        When I was trying out the different versions of Quartus (19.1, 19.2 and 20.2) I can see that 19.1 does not support the Bitec rev 11 FMC card but 19.2 does. However, the I2C setup commands for the retimer chip in the NIOS code is significantly different between 19.2 and 20.2. v20.2 also implements an MC_monitor and other new functions that v19.2 did not use. Which version of the I2C commands should I be using?

        Thanks,

        Daniel

  • Deshi_Intel's avatar
    Deshi_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi Daniel,


    I understand that your system setup is like below :

    ------------

    system setup

    ------------

    GPU -> DP cable -> Bitec DC rev11 -> custom board (S10 SX280 FPGA) -> same Bitec DC rev11 -> DP cable -> Monitor


    Lets' stick with using Intel FPGA DP default example design for debug purpose. Don't integrate with additional design block for now to keep thing simple.

    • Quartus version : v19.2 (I am thinking v19.2 since you mentioned it started support Bitec DC rev11 as compared to not supported v19.1)
    • DP IP bpc : 8 bpc
    • DP data rate setting : 5.4G (HBR2)
    • GPU mode : turn on GPU mode is fine


    After that, share with me the MSA log for Nvidia GTX 660Ti running in Linux.


    For my side, I will try to check for some transceiver Rx channel internal status signal that you can add to signal_tap to aid in debug purpose.


    Thanks.


    Regards,

    dlim


    • DZuck1's avatar
      DZuck1
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      I removed my entire project and only used the sample project (v19.2) with my pinout.

      With both Win7 and Win10 I am seeing the same issue I had before where LT goes and goes and goes until the NIOS/UART gives out (unresponsive).

      I was able to grab this MSA dump right before it stopped:

      ------------------------------------------
      ------ TX Main stream attributes -----
      ------------------------------------------
      --- Stream 0 ---
      MSA lock : 0
      VB-ID : 19 MISC0 : 00 MISC1 : 00
      Mvid : 138E5 Nvid : 8000
      Htotal : 0000 Vtotal : 0000
      HSP : 0000 HSW : 0000
      Hstart : 0000 Vstart : 0000
      VSP : 0000 VSW : 0000
      Hwidth : 0000 Vheight : 0000
      CRC R : 0000 CRC G : 0000 CRC B : 0000
      --- Stream 1 ---
      MSA lock : 0
      VB-ID : 00 MISC0 : 00 MISC1 : 00
      Mvid : 0000 Nvid : 0000
      Htotal : 0000 Vtotal : 0000
      HSP : 0000 HSW : 0000
      Hstart : 0000 Vstart : 0000
      VSP : 0000 VSW : 0000
      Hwidth : 0000 Vheight : 0000
      CRC R : 0000 CRC G : 0000 CRC B : 0000
      ------------------------------------------
      -------- TX Link configuration -------
      ------------------------------------------
      Lane count : 4
      Link rate : 5400 Mbps
      ------------------------------------------
      ------ RX Main stream attributes -----
      ------------------------------------------
      --- Stream 0 ---
      VB-ID lock : 0 MSA lock : 0
      VB-ID : 19 MISC0 : 00 MISC1 : 00
      Mvid : 0100 Nvid : 0000
      Htotal : 0000 Vtotal : 0000
      HSP : 0000 HSW : 0000
      Hstart : 0000 Vstart : 0000
      VSP : 0000 VSW : 0000
      Hwidth : 0000 Vheight : 0000
      CRC R : 0000 CRC G : 0000 CRC B : 0000
      --- Stream 1 ---
      VB-ID lock : 0 MSA lock : 0
      VB-ID : 00 MISC0 : 00 MISC1 : 00
      Mvid : 0000 Nvid : 0000
      Htotal : 0000 Vtotal : 0000
      HSP : 0000 HSW : 0000
      Hstart : 0000 Vstart : 0000
      VSP : 0000 VSW : 0000
      Hwidth : 0000 Vheight : 0000
      CRC R : 0000 CRC G : 0000 CRC B : 0000
      ------------------------------------------
      -------- RX Link configuration -------
      ------------------------------------------
      CR Done: F SYM Done: 0
      Lane count : 4
      Link rate : 5400 Mbps
      BER0 : 7FFF BER1 : 08A8
      BER2 : 072A BER3 : 17A6

      I am now compiling with v20.2 to see if it works any better.

      Thanks,

      Daniel

  • Deshi_Intel's avatar
    Deshi_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    HI Daniel,


    I am setting this forum case to closure since we have moved into private debug discussion.


    Thanks.


    Regards,

    dlim
