Stratix 10 PHY Lite Avalon bus waitrequest issue

Hi Sir,

Please accept my apology for the delay in response due to workload.

Can you please help to verify following ?

1. Ensure reset_n is toggle out of reset mode. From 0 to 1

2. Ensure correct clock frequency is supplied to DDR4 pll_refclk input pin. This will enable DDR4 PLL to operate and generate all desired output clk to DDR4 IP

3. Ensure the pll_locked and interface_locked is high. Data transfer should start after the assertion of this signal.

Regards,

Aida

Hi Samson,

Thanks for checking.

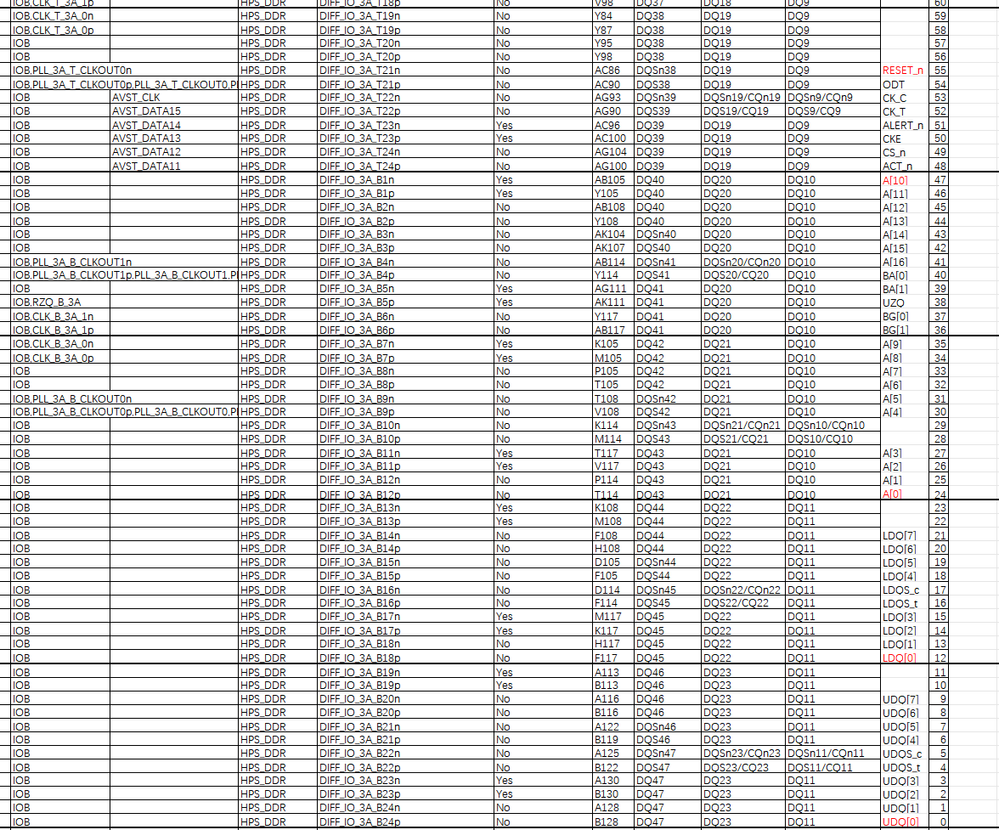

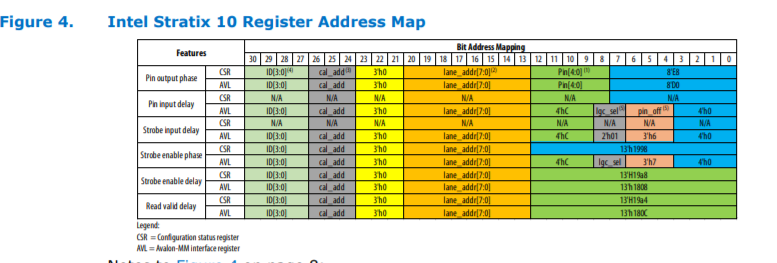

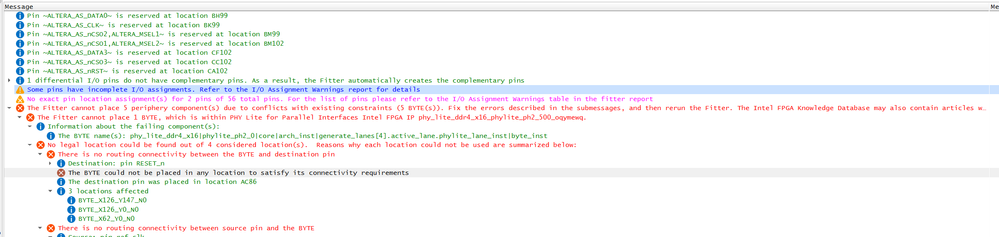

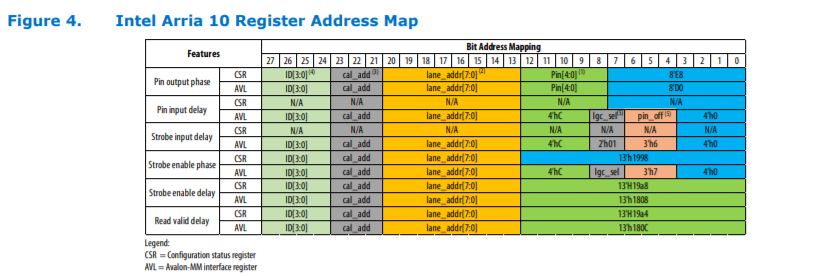

When you migrate the design (from Arria 10 PHY Lite to Stratix 10 PHY Lite), just wonder whether do you make any changes or just migrate the design only? As I know there is a different on bit address mapping between Arria 10 and Stratix 10. As you can see below, for Arria 10 it have 28 bits but for Stratix 10 is 31 bits.

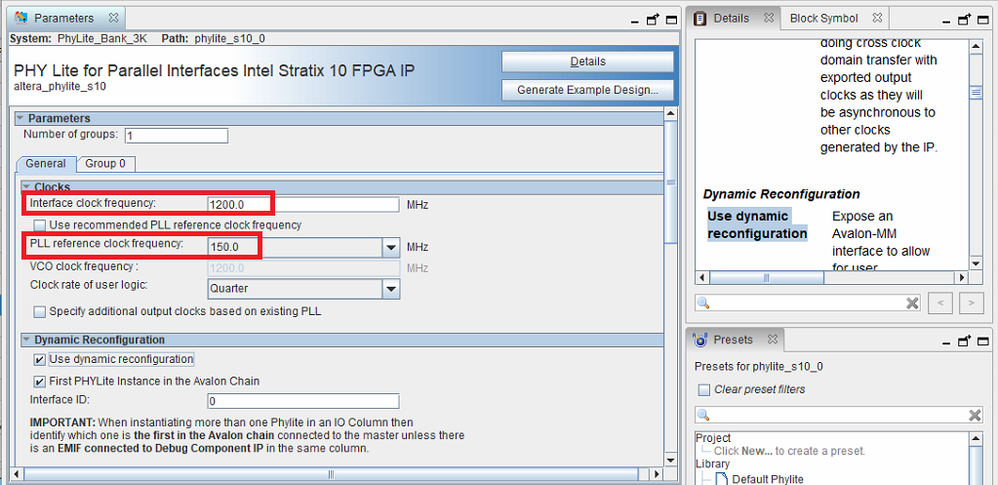

I can see that you are enabling dynamic configuration in the design. Have you try run the reference design ? You may find it useful to run the reference design simulation and see whether the waitrequest signal issue is able to replicate and compare the signal with your custom design. The reference design files can be downloaded from Intel Design Store and restore the design using Intel Quartus Prime Pro Edition software. It is always recommended to use latest version of Quartus software. You can use this reference design as a starting point design and modify as required to suit your design application.

Refer to this Application Note (AN) on the steps to set up and run the simulation reference design --> https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/an/an888.pdf

Let me know your feedback.

Thanks

Regards,

Aida

Hi Samson,

Some additional info:

Regarding the waitrequest stuck, probably it is due to the rd/wr command asserting in wrong way. This might cause the wait request stuck. Please check on this.

Another thing to take note is please try not to send any Avalon transaction before calibration is completed and the controller is ready to accept user Avalon command.

Regards,

Aida

Hi Aida ,

We have checked all the connections in our design but we do not find any thing wrong yet.

Could we send you part of our codes which involves PHY Lite and have Altera AE help us to take a look ?

Thanks ,

Samson

Hi Samson,

Please accept my apology for not follow-up sooner.

Do you have a chance to try out the reference design given and compare the signals with your custom design? If yes, can you share with me the results seen? Is the waitrequest issue replicate-able with reference design ?

Regarding the code, i really wish I could help but unfortunately, I'm not the expert on the coding area. But, I will try my best to help you. Allow me sometime to consult my colleague that have this expertise. I'll get back to you later regarding this.

Thanks

Regards,

Aida

Hi Samson,

I have reached out my colleague and I received few inputs as below. Please take a look.

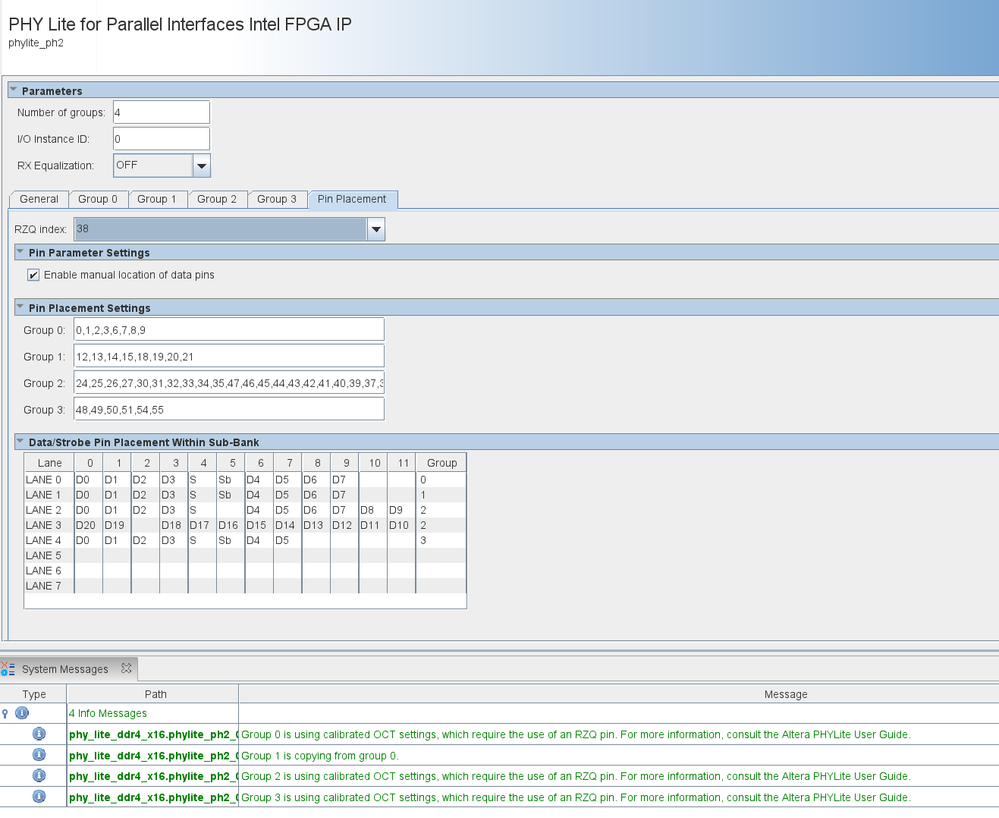

• Check the register address, we should confirm the lane and pin addresses are correct.
• Please check the pin assigned correctly.
• Suspected avl_readdata and avl_writedata are always empty that represents no data receive or send out to Avalon.

Thanks

Regards,

Aida

RE-copy from email to Forum for tracking purpose :

Dear Samson,

Sorry for the long wait.

From what I discussed with my colleague, please refer to comments below:

1.Reference Design ( from AN 888) :

• Firstly, we need to know whether this is IP problem or user traffic problem.
• Hence, please run the ref design. Yes, the ref design use NIOS is true. And it differs from what you are doing. I acknowledge that. But you can proceed to run it regardless use nios or not and check if the waitrequest signal stuck or behave as expected. The reason behind is from the ref design, you can observe how the Nios control the PHYLite and get the idea on how it works so that you are able to do the same on your side. Most importantly, this is the way to isolate whether the failure is due to IP issue or user traffic issue.

2. Signal Tap:

• Have you tried to run using signal tap on the Stratix 10 design, see if there is any anomaly? I checked the design (IO_Library.qar), but I can’t see any Signal Tap file.

3.Avl_clk:

• The waitrequest signal comes from Nios and Nios is driven by avl_clk. You may want to re-check if avl_clk is correctly connected to PHYLite IP.

4. I/O Column:

• Does the EMIF IP and PHYLite IP located in the same IO column? I recall there was issue with EMIF IP in the same column.
• Both the local_cal_fail signal and the local_cal_success signal may not assert high after EMIF calibration when both EMIF IP and an PHYLite IP with dynamic reconfiguration enabled are placed in the same I/O column.

Regards,

Aida
