Source Synchronous representation in TimeQuest - FPGA is a transmitter

Hi,

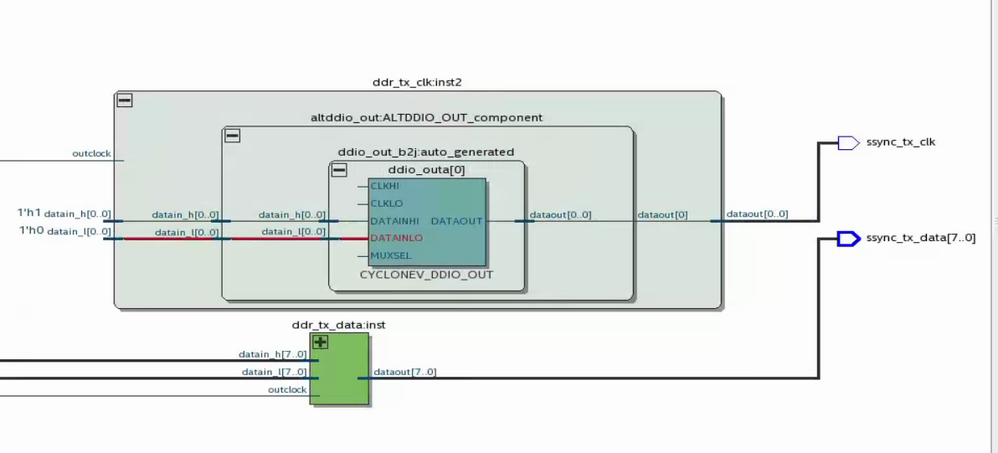

From the design, the DATAINHI and DATAINLO are connected to 1'h1 and 1'h0.

In general, you would see clock sources as the starting point of timing paths in a "clock-as-data" scenario, when a clock feeds a data input pin of a register (or an output pin with a "data-like" constraint like set_output_delay).

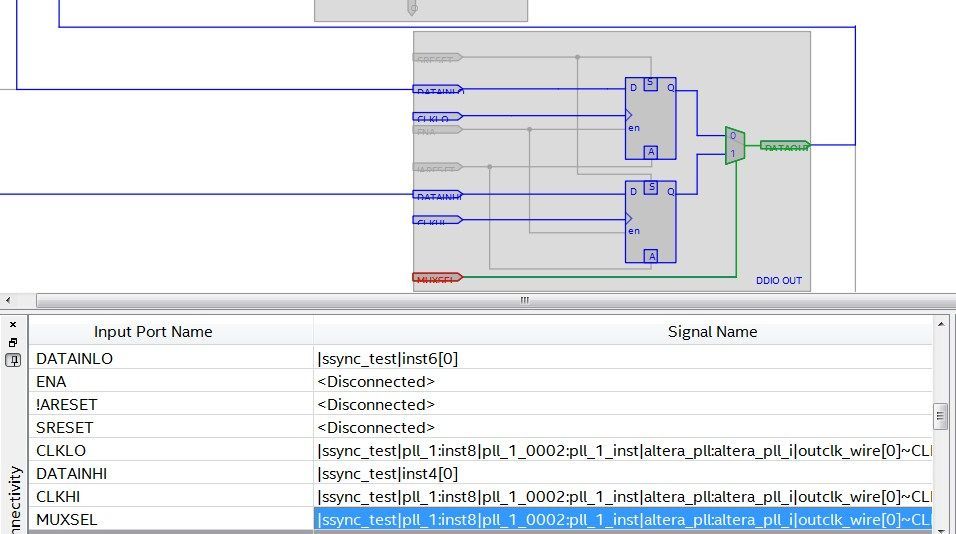

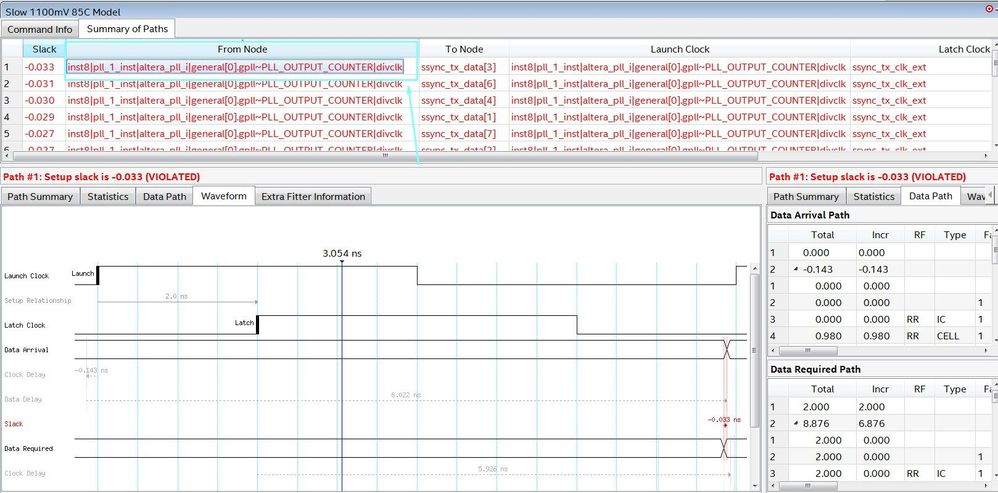

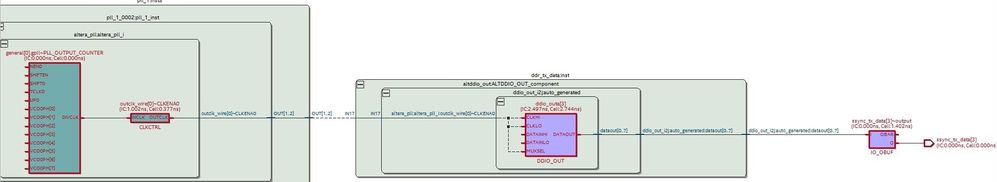

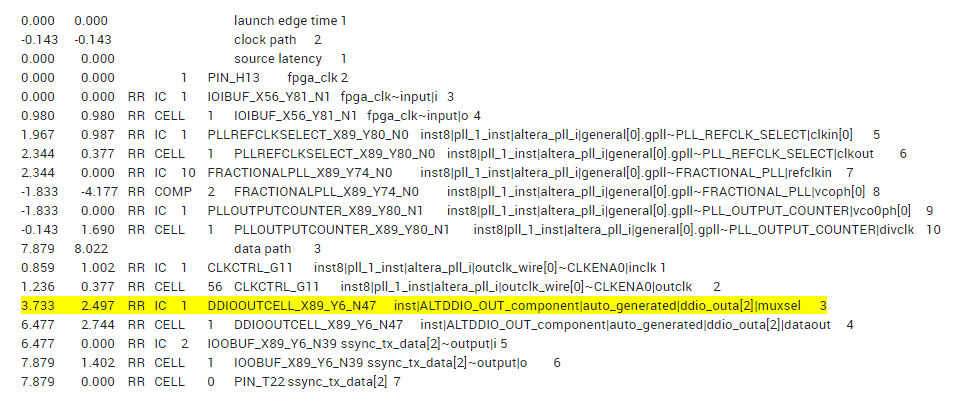

Looking at the circuit in netlist viewer, it seems that the PLL output is driving "CLKHI", "CLKLO" and "MUXSEL" inputs of the DDIO_OUT blocks. Looking at the timing path report (pasted below), it looks like the MUXSEL input is modeled as a data input (as opposed to a clock input). So, we have a "clock-as-data" path, where the PLL output clock is driving the ssync_tx_data pin (via MUXSEL of the DDIO), which has a set_output_delay constraint, creating a valid timing path.

So, Timing Analyzer behavior looks correct.

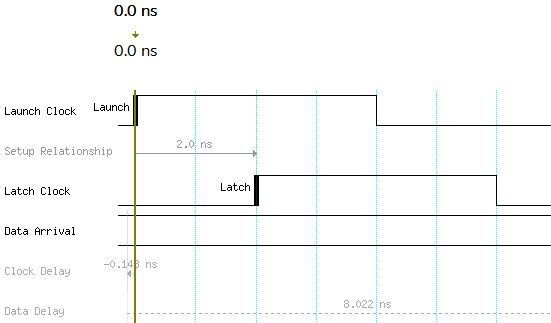

The clock is 0ns from input pins, get shifted by 2ns through the PLL . This clock inst8|pll_1_inst|altera_pll_i|general[1].gpll~PLL_OUTPUT_COUNTER|divclk has 2ns delay compared to inst8|pll_1_inst|altera_pll_i|general[0].gpll~PLL_OUTPUT_COUNTER|divclk, which is why the latch clock edge is 2ns but not 0ns.

Thanks.

Can you post just the .sdc file?

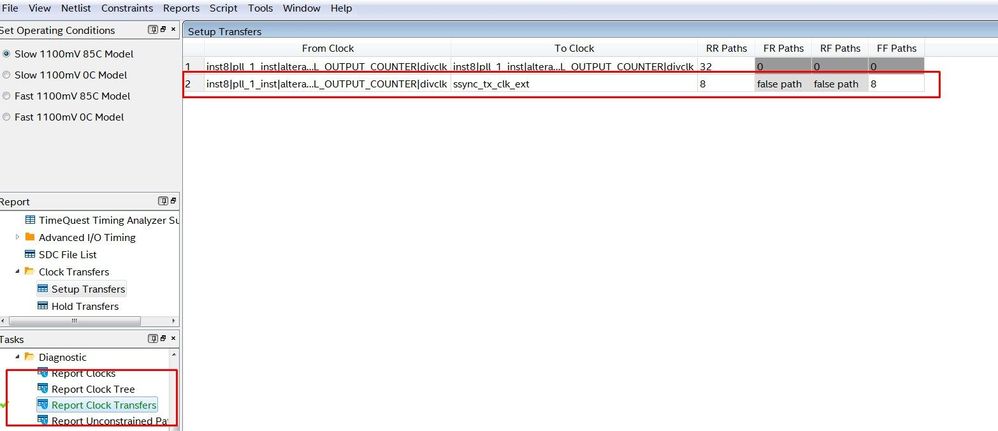

You need a false path on your output clock path because the tool is looking at this path still as a data path:

set_false_path -to [get_ports ssync_tx_clk_ext]

The false paths you mention you created should be from the data clock (the clock that is driving out data) to ssync_tx_clk_ext, something like this:

set_false_path -setup -rise_from [get_clocks data_clk] -fall_to [get_clocks ssync_tx_clk_ext]

set_false_path -setup -fall_from [get_clocks data_clk] -rise_to [get_clocks ssync_tx_clk_ext]

set_false_path -hold -rise_from [get_clocks data_clk] -rise_to [get_clocks ssync_tx_clk_ext]

set_false_path -hold -fall_from [get_clocks data_clk] -fall_to [get_clocks ssync_tx_clk_ext]

Can you confirm this is how you did your constraints?

#iwork4intel

Hi sstrell.

Yes, my .sdc file looks like that:

create_clock -period 8.0 -name fpga_clk [get_ports fpga_clk]

# Constrains PLL outputs. One output has 90 degree phase-shift for transmit clock

derive_pll_clocks

derive_clock_uncertainty

# Put a generated clock on output clock port to be referenced by set_output_delay constraints

create_generated_clock -source [get_pins {inst8|pll_1_inst|altera_pll_i|general[1].gpll~PLL_OUTPUT_COUNTER|divclk}] -name ssync_tx_clk_ext [get_ports {ssync_tx_clk}]

set_output_delay -clock ssync_tx_clk_ext -max 0.9 [get_ports {ssync_tx_data[*]}]

set_output_delay -clock ssync_tx_clk_ext -min -1.0 [get_ports {ssync_tx_data[*]}]

set_output_delay -clock ssync_tx_clk_ext -max 0.9 [get_ports {ssync_tx_data[*]}] -clock_fall -add_delay

set_output_delay -clock ssync_tx_clk_ext -min -1.0 [get_ports {ssync_tx_data[*]}] -clock_fall -add_delay

set_false_path -fall_from [get_clocks {inst8|pll_1_inst|altera_pll_i|general[0].gpll~PLL_OUTPUT_COUNTER|divclk}] -rise_to [get_clocks ssync_tx_clk_ext] -setup

set_false_path -rise_from [get_clocks {inst8|pll_1_inst|altera_pll_i|general[0].gpll~PLL_OUTPUT_COUNTER|divclk}] -fall_to [get_clocks ssync_tx_clk_ext] -setup

set_false_path -fall_from [get_clocks {inst8|pll_1_inst|altera_pll_i|general[0].gpll~PLL_OUTPUT_COUNTER|divclk}] -fall_to [get_clocks ssync_tx_clk_ext] -hold

set_false_path -rise_from [get_clocks {inst8|pll_1_inst|altera_pll_i|general[0].gpll~PLL_OUTPUT_COUNTER|divclk}] -rise_to [get_clocks ssync_tx_clk_ext] -hold

set_false_path -to [get_ports {ssync_tx_clk}]

So I can confirm that my constraints are like you suggested.

--

Best regards,

Ivan

This is a stupid question, but are the correct clocks from the PLL connected to the data DDIO (and clock DDIO) in your design? Like you said, it doesn't make sense that you're seeing data path analysis with a PLL output as the from node.

#iwork4intel

Hi Ivan,

The DATAINHI and DATAINLO have constant value and the output of the PLL is connected to the MUXSEL/CLKHI/CLKLO of the ddio. Besides this, the clock relationship is 2ns, which is why you see 2ns in the latch edge time under Data Required Path.

Thanks.

Hi YY.

Thank you.

As about your answer.

About my first question - as for the data path, there are no constant values on DATAINHI and DATAINLO. DATAINHI and DATAINLO connected to synchronizers, which are in turn connected to input ports.

And yes, output of the PLL is connected to the MUXSEL, CLKHI and CLKLO.

So it is a strange situation, where as I understand, we need to consider the whole DDIO and a mux as its ending element as a one trigger-like sequential element, which launches data to the output port.

My question was is it a right explanation, or not. It looks like previous customer (sstrell) who tried to answer that question said "it doesn't make sense that you're seeing data path analysis with a PLL output as the from node."

So it is an interesting case, isnt' it?

As my second question - maybe my question was not descriptive enough, my question was not why I'm seeing 2ns in the latch edge time under Data Required Path,

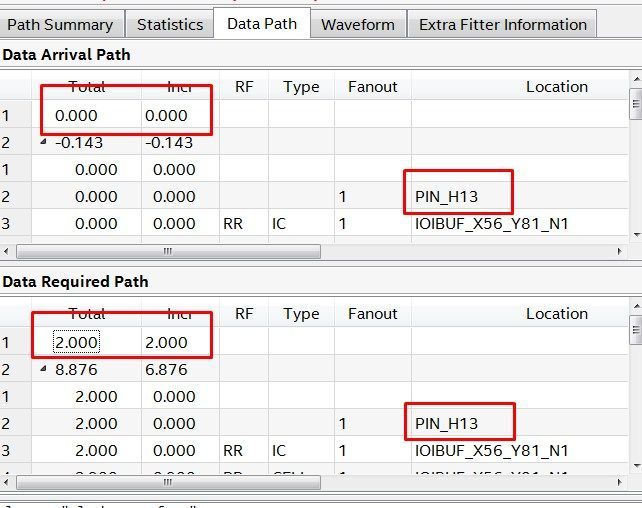

but why in the Detailed Data Path report we start the clock Path from the input pin and it starts from 2 ns?

Again, I can post my question:

"clock gets shifted inside PLL, and the right report for Data Required Path should start from 0 ns time and should get a 2 ns inside the PLL.

So the second question is - why it is so? There is no reflection of clock phase shift inside detailed path analysis - the shift is incorporated at the start of the analysis."

I can try to explain that - for example - "clock shifts inside PLL aren't represent in the timing path report".

--

Best regards,

Ivan
