CFM0 Overlaps with Configuration Data (Error 20646 Quartus Prime)

Hi,

The Error (20646) is due to the start address overlaps with configuration data. You can see in the page 42 below

https://cdrdv2-public.intel.com/666495/ug-683865-666495.pdf

Please ensure to follow all the guidelines sated in the userguide.

Regards,

Aiman

Hi Aiman,

We do know the reason for the error. But how to correct this?

Let me give a detailed explanation about the problem below:

1. In our design, we are using 10M25 device instead of 10M16 compared to in our reference design.

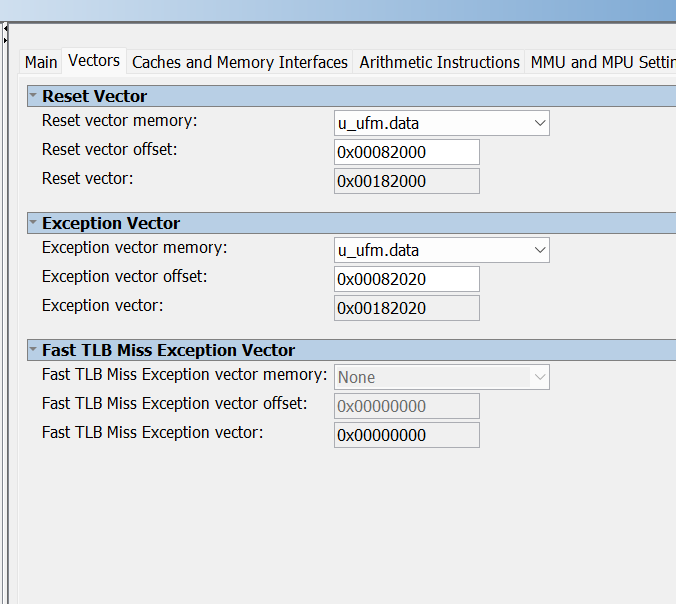

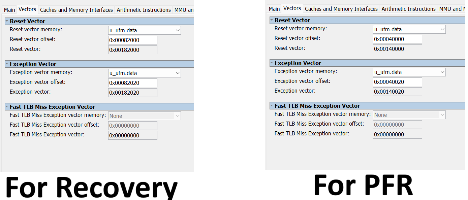

2. we are reusing the reset vector offset, exception vector offset etc. as per the reference design itself. Pls see the below images for reference.

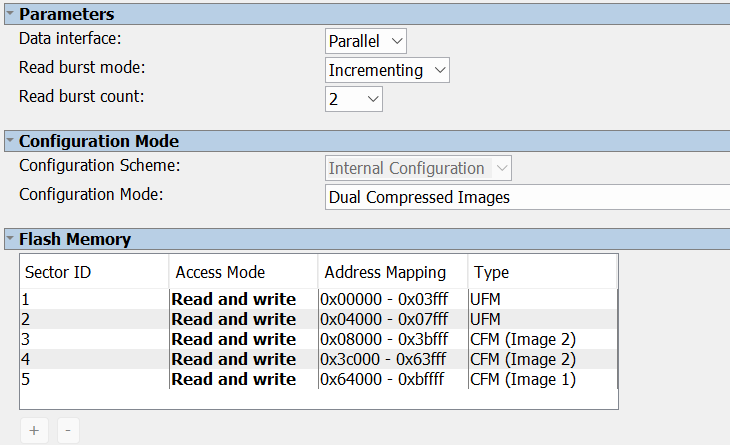

1. Pls see the below image showing the flash layout:

1. Here we could notice that the address mapping of CFM is different from that of reference design probably because of the change in device.
2. Now we have compiled and generated the .sopcinfo file from platform designer for both pfr and recovery.
3. We created a BSP project from this .sopcinfo file
4. Using this settings.bsp, we created the .hex file for both pfr and recovery using the commands below:

alt-file-convert -I elf32-littlenios2 -O hex --input=recovery_app.elf --output=recovery_code.hex --base=0x00182000 --end=0x0018bfff --reset=0x00182000 --out-data-width=8 --boot="C:/intelFPGA_lite/18.1/nios2eds/components/altera_nios2/boot_loader_cfi.srec"

alt-file-convert -I elf32-littlenios2 -O hex --input=pfr_app.elf --output=pfr_code.hex --base=0x00140000 --end=0x0018bfff --reset=0x00140000 --out-data-width=8 --boot="C:/intelFPGA_lite/18.1/nios2eds/components/altera_nios2/boot_loader_cfi.srec"

1. While creating both BSP and .hex files, we didnt change any addresses and offsets and reused everything that was used in the reference design which used 10M16. For example, the base, end, reset addresses in the above commands were reused.

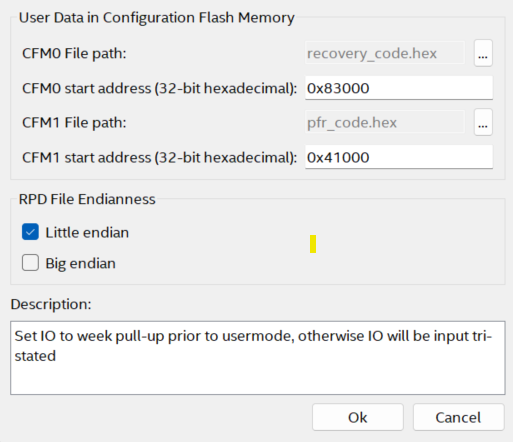

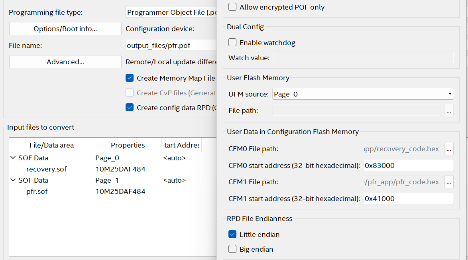

2. Now on creating a .pof file in Quartus, we are using the following settings. Pls see the image below:

1. However, on generating .pof file, we are getting an error as follows:

-" Error (20646): The page CFM0 user data requested start address 0x00083000 overlaps with configuration data that end at address 0x000A3767."

1. What could be the reason for this? When the device is changed, should the reset vector offsets also need to be changed? Pls let us know how if it is to be changed.
2. Should we change the other addresses which we use during BSP generation and .hex file creation as well? Let us know if it is required.
3. Pls let us know the actual cause for this and how to avoid this issue so that we can successfully create the .pof file.

Regards,

Ashbin

Hi Frank,

Can you show an example on how you calculate these new recommended offsets?

Regards,

Ashbin

Hi,
I was comparing CFM1 and CFM0 area of both devices.

CFM1 (usually application image) memory range 0x08000 - 0x49fff on 10M16 and 0x08000 - 0x63fff on 10M25
CFM0 (usually factor image) memory range 0x4a000 - 0x8bfff on 10M16 and 0x64000 - 0xbffff on 10M25

User data is placed in upper free space of each block.

Hi,

May I know if you need any further assistance upon solution given by FvM?

Regards,

Aiman

• As we do not receive any response from you on the previous question/reply/answer that we have provided. Please login to ‘ https://supporttickets.intel.com’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.

Thanks @FvM and @NurAiman_M_Intel for the help. I have posted another query - MAX 10 - Not Able to run TCL Scripts Pls see if you have any update on that as well.

Regards,

Ashbin
