Bug report: synthesis optimizes out the signal if data type is declared in generic package

Hi,

The bus length of o_bug was different with the input i. So, the o_bug was not connected. You may change the bus length of o_bug to (17 downto 0).

The entity will be:

--

entity bug is

generic(

G_MODULE_DISABLED : boolean := false;

G_ID : std_logic_vector(7 downto 0) := X"17"

);

port(

i : in std_logic_vector(17 downto 0);

o_bug : out std_logic_vector(17 downto 0);

o_ok : out std_logic_vector(17 downto 0)

);

end entity;

architecture rtl of bug is

signal sp : test_type_t;

begin

sp.pixel_data(0) <= i;

o_bug <= sp.pixel_data(0);

o_ok <= sp.pixel_data(0);

end rtl;

--

Thank you.

Regards,

Ean

Hi Ean,

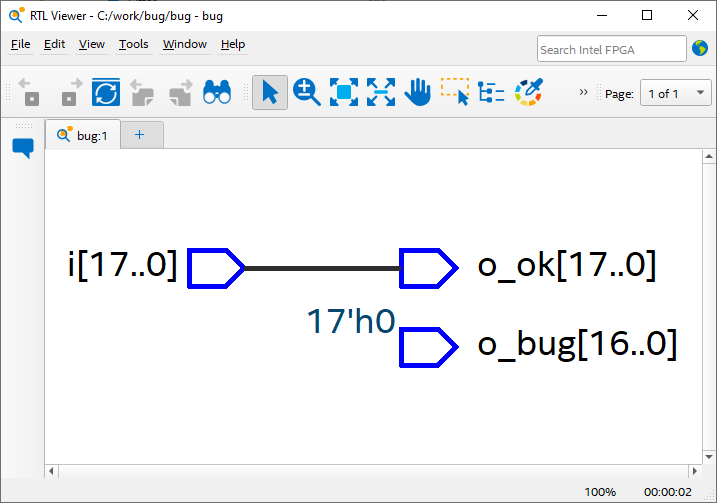

i have chosen different output bus size in order to demonstrate the bug. The bug manifests itself when subscript is used on the right side.

When I resize the bus, the o_bug[16 downto 0] must be connected to i[16 downto 0], only bit 17 should be removed. Instead the whole connection is removed.

This happens only if the type test_type_t is defined in a generic package.

Best regards,

Ivan

Hi Ean,

yes, that would work. If you dont use test_type_t in the o_bug signal, then o_bug is generated properly.

The wrong behaviour shows only when a data type from the generic package is used. This is the subject of this thread:

"Bug report: synthesis optimizes out the signal if data type is declared in generic package"

Can i assume that you have reproduced the bug and there will be a fix in a future version of Quartus ?

Best regards,

Ivan

Dear Ean,

you have not provided a solution to the bug, you have provided a workaround. By avoiding the use of generic package you have avoided the bug.

In the case I have presented, the Intel Quartus synthesis generates wrong design. It does not produce any error messages. And I also do not want to consider changing my architecture, because the code I wrote is valid VHDL and I expect Quartus to produce correct results from it. It also simulates fine in Modelsim.

I also do not need a workaround.

I just wanted to report a bug in the synthesis tool and to get it fixed.

Let's try again. Below I have provided an example, where the synthesis tool wrongly removes the whole connection. No errors are generated in Quartus.
I can also simulate this file in Modelsim and the connection is there.

Can you explain the behavior of the synthesis tool? Why is the whole connection to o_bug removed in this case?

library ieee;
use ieee.std_logic_1164.all;
use work.parallel_pixel_type_pkg.all;

entity bug is
    port(
        i     : in  std_logic_vector(17 downto 0);
        o_bug : out std_logic_vector(16 downto 0)
	  );
end entity;

architecture rtl of bug is
    signal sp      : test_type_t;
begin
 sp.pixel_data(0) <= i;
 o_bug <= sp.pixel_data(0)(16 downto 0);
end rtl;

If you need any more information, let me know.

Best regards,

Ivan

Hi Ivan,

May I know how you view the connection in ModelSim? So, I'm able to understand your design more.

Thanks,

Ean

Hi Ean,

I am feeding some data into the i port of the design and monitoring the o_bug port. As expected, the o_bug port is equal to the i port.

Here is the testbench:

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;
entity bug_tb is
end bug_tb;
architecture test of bug_tb is
    signal i:      std_logic_vector(17 downto 0);
    signal o_bug:  std_logic_vector(16 downto 0);
begin
    stimuli : process
    begin
        for j in 0 to 10 loop
	    i <= std_logic_vector(to_unsigned(j, 18));
            wait for 1 ns;
        end loop;
    wait;
    end process;

    uut : entity work.bug port map(i => i, o_bug => o_bug);

end;

Here is the result of the simulation.

As you can see, it works in simulation.

Best regards,

Ivan

P.S. It has been almost two weeks that i am trying to prove you that such simple construct as A<=B does not work in this case. I have provided an VHDL example, the proof in the RTL view, now we are down to simulating the basic VHDL A<=B construct. This is really a very basic VHDL. You have multiple times sent me completely false and misleading information, which leads me to believe that you do not have experience with that language. Is there anybody in support with VHDL knowledge who might have a look at it? Because realizing that the problem here is not due to "coding issues"(what does it even mean anyway?) should not take more then 10 min.

Hi Ean,

is there an update on the issue?

I would really like this VHDL-2008 feature to be supported in the future.

Best regards,

Ivan

Hi Ivan,

I'm pending reply from them too. I will ask for update asap. But, this issue probably will be resolved in future version.

Thanks,

Ean
