Why won't PLL Reconfig IP allow access to cascaded tap?

So, I have created a PLL with a 50MHz clk in.

From there I generate two clocks. C0 = 100MHz, and C1 is 100KHz.

The PLL achieves these values by having an M = 12, N=1 and a C0 counter of 6 for the 100MHz clock.

However for C1 it use post counter of 500 but also a cascade tap of 12 to get the 100KHz.

All good as far as I am concerned and I generate the mif file for use in the PLL reconfig IP.

So when I fire up the PLL out of reset all is good, C0 = 100MHz and C1 = 100KHz.

However if I reconfigure the PLL using the reconfig IP that has been setup using the generated mif, then C1= 1.2MHz, in other words it stops using the cascade tap for C1.

The same is true if I try to change the post scale counter for C1 and then change it back to its original setting.

How can I prevent this from happening? There does not seem to be a way to setup the use of cascade tap using the 144bit scan chain????

please help

6 Replies

  • a_x_h_75's avatar
    a_x_h_75
    Icon for Contributor rankContributor
    7 years ago

    I can't explain why this is happening. However, I can offer some thoughts.

    Which device are you using? I'm surprised Quartus allows you to specify a clock out of 100kHz. Outputs are often restricted to something over 1MHz. However, it clearly works. My suspicion is that the cascade simply cannot be reconfigured and you're ending up with the lowest frequency that the PLL can generate.

    Regardless of this I'd highly recommend not designing in this way. Operate your logic at a higher frequency and have a 100kHz 'tick' within your logic indicating when to run the circuitry that needs to operate at 100kHz. If you need a true, 50/50 mark/space ratio output signal, generate this in logic as well.

    If, by reconfiguring your PLL, you need to move away from 100kHz, then adapt your logic as appropriate.

    Cheers,

    Alex

    • Dde_B's avatar
      Dde_B
      Icon for New Contributor rankNew Contributor
      7 years ago

      I think the following image might explain why the cascaded taps don't work after reconfig. I just noticed this comment below the checkbox in the PLL config wizard!

  • SreekumarR_G_Intel's avatar
    SreekumarR_G_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    7 years ago
    Hello David, Can you let me know which device you are using ? As Alex mentioned already, I also wonder how tool let you allow to change to 100KHz . I just tried with Arria 10 device. Tool is not letting me allow less than 1MHZ. can you please clarify ? Thank you , Regards, Sree
    • Dde_B's avatar
      Dde_B
      Icon for New Contributor rankNew Contributor
      7 years ago

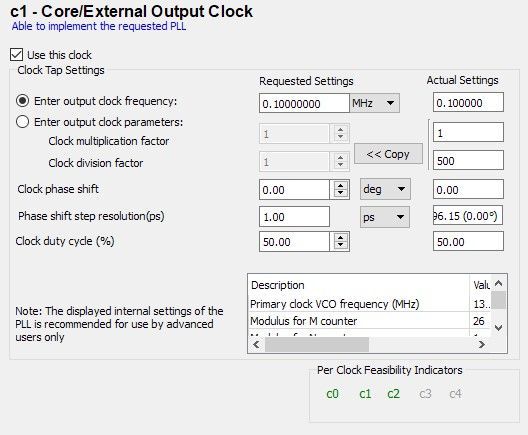

      Here is the config wizard stating that 0.1MHz is achievable: I have synthesized and implemeted this on the HW.

  • Dde_B's avatar
    Dde_B
    Icon for New Contributor rankNew Contributor
    7 years ago

    Hi Gentlemen,

    I am using the MAX10 10M08SA I use the ALTTPLL IP in quartus prime (18.xx), I set up clkin at 50MHz, and then C0 I set to 100MHz. I then set up C1 and C2 to be 0.1MHz and it works fine. I actually do something a bit naughty after this and phase shift C1, then XOR the together to get very narrow pulses at twice the freq, but that is an aside. I have proven that I can do this physically using an eval board, but I havent proved physically that I can also do this once I use the reconfig IP. The physical test was done with the ALTPLL config fixed and no reconfig options enabled.

    ddB
