How do you configure the pcie root port on the Stratix 10 to allow the HPS to map an I/O BAR?

20 Replies

Wincent_Altera
Regular Contributor
3 years ago
Hi,

Configuring PCIe root port on Stratix 10 to allow the HPS to map an I/O BAR can be a complex process.
To be honest , I never try such deep before, but I can lay down some of the tips/suggestion for you to move on further.

Modify the device tree: The device tree is used by the kernel to determine the system's hardware configuration. You can modify the device tree to map an IO space for the PCIe bridge. You can use the "ranges" property in the device tree to specify the base address and size of the I/O space. The "reg" property can be used to specify the base address and size of the memory space. Here's an example of what the device tree entry might look like:
pcie0: pcie@ffe201000 {
compatible = "pci-host-ecam-generic";
reg = <0x0 0xffe201000 0x0 0x1000>;
#address-cells = <3>;
#size-cells = <2>;
ranges = <0x81000000 0x0 0x00000000 0x00010000 0x00000000 0x00010000>,
<0x82000000 0x0 0x00000000 0x00010000 0x00000000 0x00010000>;
interrupts = <0 184 4>;
num-lanes = <8>;
max-functions = <8>;
dma-coherent;
status = "okay";
};
Enable the I/O space in the PCIe root port configuration: In the Qsys Designer, you can enable the I/O space in the PCIe root port configuration. Under the "Root Port" tab, set the "I/O Space Enable" option to "Enabled".
Verify that the PCIe bridge supports I/O space: Not all PCIe bridges support I/O space. You can verify that the PCIe bridge in your system supports I/O space by checking the device datasheet or manual. If the PCIe bridge does not support I/O space, you may need to use a different bridge that does support it.
Check the PCIe endpoint configuration: The PCIe endpoint device (e.g. video card) must be configured to use the I/O space instead of memory space. This is usually done using the device's configuration registers. The configuration registers can be accessed using the "setpci" command in Linux.

Hope this is able to help.

Regards,
Wincent_Intel
- bralston7
  New Contributor
  3 years ago
  Thank you for the response. I've had the device tree side all worked out for a bit now, but its what you describe in 1) is what I am missing. There is no root port tab in Qsys Designer (yes, my type is set to Root Port, not Endpoint), and no checkbox anywhere for "I/O Space Enable". Ive been all over that GUI and I can't find it. There's no way a full implementation of a PCI root port IP doesn't include a way to make an IO space. How could they leave something like that out? There is an I/O space described in the documentation (ug_s10_pcie_avmm.pdf) called the CRA, but it appears to have a specific purpose for the driver, and not for creating an I/O space.

  Could you please reach out to somebody who is intimately familiar with the PCIe IP?
  - Wincent_Altera
    Regular Contributor
    3 years ago
    Hi,

    Which varient of Stratix 10 board you are testing on ? GX or SOC version ?

    Regards,

    Wincent_Intel
bralston7
New Contributor
3 years ago
Right, I don't seem to be able to follow your steps. Perhaps we have our Platform designer windows layed out totally differently. I made best guesses and have posted a screenshot.

In your 3) above, I do not have anything labeled "System" in the left hand pane. I do have a "System View" in the middle". I also do have a "System Info" on the right pane, and I have left that selected in the screenshot. I'm assuming you intended for me to have my pcie IP selected first.

In your 4) above, I do not have an "Address Spaces" section. I do have an "Address Map" in the middle section. I have most of my pcie components listed there, but there is no "I/O" row to be found.
Wincent_Altera
Regular Contributor
3 years ago
Hi,

the IO Space enable is at bit[0] of command register.
Can you please try it out and see if you are able to do that ?

Regards,
Wincent_Intel
- bralston7
  New Contributor
  3 years ago
  Sorry, I cannot see where I could possibly do that in Platform designer. I can't find anything resembling 'command register' on the PCIe IP settings

  Did you look at my screenshot? Could you show me a screenshot of what you are looking at?
  - Wincent_Altera
    Regular Contributor
    3 years ago
bralston7
New Contributor
3 years ago

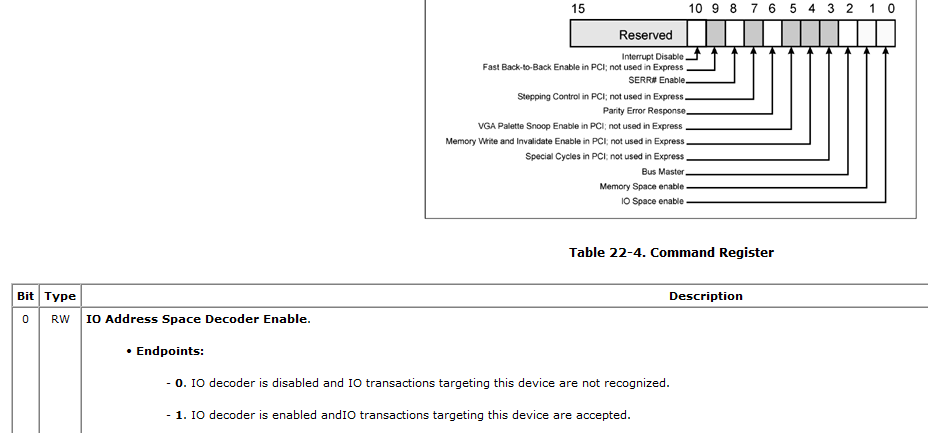

While I appreciate the follow-up, that is just a diagram from the PCI spec. It doesn't tell me anything about making this work in the Intel PCIe IP component for Stratix 10. The Platform Designer GUI does not have the granularity or visibility to the command status registers.
- Wincent_Altera
  Regular Contributor
  3 years ago
  Hi,

  If refer to the document Stratix 10 Avalon-MM Interface for PCI Express Solutions User Guide, under Figure 73 there is I/O space address map. Refer to 10.4.3, there are steps to configure the Root Port and Endpoint Configuration Space registers before you issue transactions to the Endpoint. Step 3a mentions that the I/O is assigned in the Endpoint BAR register. Hence, you do not need to assign the I/O bar address on the rootport. The Root Port BFM does not support accesses to Endpoint I/O space BARs.

  Regards,

  Wincent_Intel
Wincent_Altera
Regular Contributor
3 years ago

Hi,

I wish to follow up with you about this case.
Do you have any further questions on this matter ?
Else I would like to have your permission to close this forum ticket

Regards,
Wincent_Intel
Wincent_Altera
Regular Contributor
3 years ago

Hi,

I wish to follow up with you about this case.
Do you have any further questions on this matter ?
Else I would like to have your permission to close this forum ticket

Regards,
Wincent_Intel
- bralston7
  New Contributor
  3 years ago
  Wincent, my problem has not been solved. I don't think the question has been understood. Let me try another direction. Look back at those address' back in the linux-side device tree that you posted your very first response:

  ranges = <0x81000000 0x0 0x00000000 0x00010000 0x00000000 0x00010000>,

  <0x82000000 0x0 0x00000000 0x00010000 0x00000000 0x00010000>;

  You added the line that starts with an 0x81000000, which is correct, because that declares an I/O BAR. Now look at the red highlighted 64-bit addresses. These point to an address of the pci bus controller. They can't be the same thing. They also must have a backing on the FPGA side created by the PCIe IP. This backing exists for the second line that declares a MEM bar, which is called the txs or hptxs on the FPGA side. But the backing does not exist for the first line. The whole point of this question is how to make a compatible IO space on the FPGA side so that I can point to it with that 0x81 line from the device tree.
Wincent_Altera
Regular Contributor
3 years ago
Hi,

I take a deep look at it, the Rootport for AVMM configuration is support IO read and write via CRA port.
https://www.intel.com/content/www/us/en/support/programmable/articles/000077505.html

if refer to the rocketboard website , you can try to configure it by using the address offset.
https://www.rocketboards.org/foswiki/Projects/Stratix10PCIeRootPortWithMSI

Also, friendly reminder, the root port testbench is not available for AVMM..
Stratix 10 Avalon-MM Interface for PCI Express Solutions User Guide

Hope this answering your question. Let me know if you need any further clarification.
Regards,
WIncent_Intel
Wincent_Altera
Regular Contributor
3 years ago
Hi,

I wish to follow up with you about this case.
Do you have any further questions on this matter ?
Else I would like to have your permission to close this forum ticket

Regards,
Wincent_Intel
Wincent_Altera
Regular Contributor
3 years ago
Hi,

I wish to follow up with you about this IPS case.
Hoping to hear back from you so that we can proceed for next step.

Regards,
Wincent_Intel
bralston7
New Contributor
3 years ago
I'm not really sure how to proceed, as I don't think we're going to come to a conclusion here. I have been working from the rocketboards PCI link from day 1, which doesn't use an I/O bar, and I have also read the knowledge base article you linked on several occasions while googling. The problem with what the knowledge base solution (using the CRA port), is that it nowhere does it tell you where it is legal to map to in that region. The CRA port is used by the bridge driver and has custom translations for driver-ish configuration stuff. But its external interface is not defined. Only its base address. You can't just map to a random part of it or everything breaks. I've actually tried it.

So, if you don't have any further suggestions, then go ahead and close this and I'll explore other options.
