DDR3_CLK_DQS_SIGNALS_PIN_ASSIGNMENT

Question

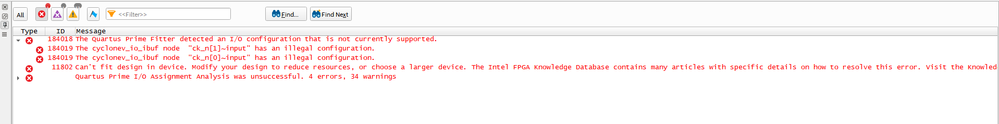

Hi team, I have tried to check the pin assignments with design files. I am getting error for DDR3 signals I/O Standard.  Initially, I have configured the ddr3 I/Os with SSTL-15 CLASS I. when I checked the fitter results, the below errors are reported. Then Reconfigured the signals with Differential SSTL-15 CLASS I. For that also, the below errors are reported.When I referred the eval board design of cyclone v gt, SSTL-15 CLASS I I/O standard is used.  can you  please help us to assign the correct I/O assignment in pin

sstrell · Answer

It doesn't look like the I/O standard is your issue.  It looks like your pin location assignments are the problem.

sermaswathika · Answer

Hi

Thanks, I Have resolved my clock signal issue.(it is related port direction in top file)

now I am getting error for dq signals.

I am using 7A bank for ddr3 io mapping

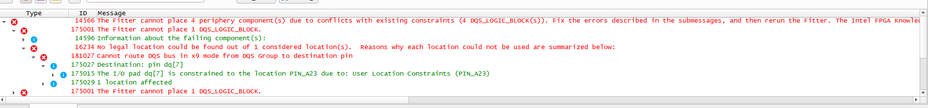

I have properly configured that. the following error is reporting for the design,

sstrell · Answer

Looks like that pin cannot be used for DQ.  Are you doing this in Pin Planner?  Have you set the view for x8/x9 to highlight the pins supported for these functions?

sermaswathika · Answer

Hi,

Yes, I am doing it in pin planner only with the highlights of DQ pins. i have assigned in dq pins only. I am sharing pin details sheet with this. can you please help me to resolve this?

do we need to connect rzq signal to ground?

FPGA DEVICE: 5CGXFC5C6F27C7

To	Direction	Location	I/O Bank	VREF Group	Fitter Location	I/O Standard
cas_n	Output	PIN_A9	7A	B7A_N0	PIN_A9	SSTL-15 Class I
ck[1]	Output	PIN_H12	7A	B7A_N0	PIN_H12	Differential 1.5-V SSTL Class I
ck[0]	Output	PIN_G15	7A	B7A_N0	PIN_G15	Differential 1.5-V SSTL Class I
ck_n[1]	Output	PIN_G11	7A	B7A_N0	PIN_G11	Differential 1.5-V SSTL Class I
ck_n[0]	Output	PIN_G14	7A	B7A_N0	PIN_G14	Differential 1.5-V SSTL Class I
cke	Output	PIN_D21	7A	B7A_N0	PIN_D21	SSTL-15 Class I
cs_n	Output	PIN_A16	7A	B7A_N0	PIN_A16	SSTL-15 Class I
dm[3]	Output	PIN_B17	7A	B7A_N0	PIN_B17	SSTL-15 Class I
dm[2]	Output	PIN_A18	7A	B7A_N0	PIN_A18	SSTL-15 Class I
dm[1]	Output	PIN_C22	7A	B7A_N0	PIN_C22	SSTL-15 Class I
dm[0]	Output	PIN_C12	7A	B7A_N0	PIN_C12	SSTL-15 Class I
dq[31]	Bidir	PIN_D13	7A	B7A_N0	PIN_D13	SSTL-15 Class I
dq[30]	Bidir	PIN_D15	7A	B7A_N0	PIN_D15	SSTL-15 Class I
dq[29]	Bidir	PIN_A11	7A	B7A_N0	PIN_A11	SSTL-15 Class I
dq[28]	Bidir	PIN_C14	7A	B7A_N0	PIN_C14	SSTL-15 Class I
dq[27]	Bidir	PIN_D11	7A	B7A_N0	PIN_D11	SSTL-15 Class I
dq[26]	Bidir	PIN_C19	7A	B7A_N0	PIN_C19	SSTL-15 Class I
dq[25]	Bidir	PIN_C9	7A	B7A_N0	PIN_C9	SSTL-15 Class I
dq[24]	Bidir	PIN_C18	7A	B7A_N0	PIN_C18	SSTL-15 Class I
dq[23]	Bidir	PIN_C17	7A	B7A_N0	PIN_C17	SSTL-15 Class I
dq[22]	Bidir	PIN_D16	7A	B7A_N0	PIN_D16	SSTL-15 Class I
dq[21]	Bidir	PIN_E19	7A	B7A_N0	PIN_E19	SSTL-15 Class I
dq[20]	Bidir	PIN_C10	7A	B7A_N0	PIN_C10	SSTL-15 Class I
dq[19]	Bidir	PIN_M12	7A	B7A_N0	PIN_M12	SSTL-15 Class I
dq[18]	Bidir	PIN_N12	7A	B7A_N0	PIN_N12	SSTL-15 Class I
dq[17]	Bidir	PIN_C15	7A	B7A_N0	PIN_C15	SSTL-15 Class I
dq[16]	Bidir	PIN_C20	7A	B7A_N0	PIN_C20	SSTL-15 Class I
dq[15]	Bidir	PIN_B21	7A	B7A_N0	PIN_B21	SSTL-15 Class I
dq[14]	Bidir	PIN_A24	7A	B7A_N0	PIN_A24	SSTL-15 Class I
dq[13]	Bidir	PIN_B9	7A	B7A_N0	PIN_B9	SSTL-15 Class I
dq[12]	Bidir	PIN_E10	7A	B7A_N0	PIN_E10	SSTL-15 Class I
dq[11]	Bidir	PIN_B19	7A	B7A_N0	PIN_B19	SSTL-15 Class I
dq[10]	Bidir	PIN_F16	7A	B7A_N0	PIN_F16	SSTL-15 Class I
dq[9]	Bidir	PIN_E15	7A	B7A_N0	PIN_E15	SSTL-15 Class I
dq[8]	Bidir	PIN_A13	7A	B7A_N0	PIN_A13	SSTL-15 Class I
dq[7]	Bidir	PIN_A23	7A	B7A_N0	PIN_A23	SSTL-15 Class I
dq[6]	Bidir	PIN_G12	7A	B7A_N0	PIN_G12	SSTL-15 Class I
dq[5]	Bidir	PIN_B11	7A	B7A_N0	PIN_B11	SSTL-15 Class I
dq[4]	Bidir	PIN_B10	7A	B7A_N0	PIN_B10	SSTL-15 Class I
dq[3]	Bidir	PIN_A21	7A	B7A_N0	PIN_A21	SSTL-15 Class I
dq[2]	Bidir	PIN_A17	7A	B7A_N0	PIN_A17	SSTL-15 Class I
dq[1]	Bidir	PIN_A12	7A	B7A_N0	PIN_A12	SSTL-15 Class I
dq[0]	Bidir	PIN_A8	7A	B7A_N0	PIN_A8	SSTL-15 Class I
dqs[3]	Bidir	PIN_J12	7A	B7A_N0	PIN_J12	Differential 1.5-V SSTL Class I
dqs[2]	Bidir	PIN_L12	7A	B7A_N0	PIN_L12	Differential 1.5-V SSTL Class I
dqs[1]	Bidir	PIN_M11	7A	B7A_N0	PIN_M11	Differential 1.5-V SSTL Class I
dqs[0]	Bidir	PIN_H18	7A	B7A_N0	PIN_H18	Differential 1.5-V SSTL Class I
dqs_n[3]	Bidir	PIN_J11	7A	B7A_N0	PIN_J11	Differential 1.5-V SSTL Class I
dqs_n[2]	Bidir	PIN_K11	7A	B7A_N0	PIN_K11	Differential 1.5-V SSTL Class I
dqs_n[1]	Bidir	PIN_L11	7A	B7A_N0	PIN_L11	Differential 1.5-V SSTL Class I
dqs_n[0]	Bidir	PIN_H17	7A	B7A_N0	PIN_H17	Differential 1.5-V SSTL Class I
odt	Output	PIN_E11	7A	B7A_N0	PIN_E11	SSTL-15 Class I
ras_n	Output	PIN_B20	7A	B7A_N0	PIN_B20	SSTL-15 Class I

adzimzm_altera · Answer

Hi,Have you check out the pin placement for DDR3 in Pin-Out file?If not, you may download it in this page: https://www.intel.com/content/www/us/en/support/programmable/support-resources/devices/lit-dp.html#cyclone%C2%AEvdevicesFor your selected device, the Pin-Out file should be 5CGXFC5.Also can download with this link: https://cdrdv2.intel.com/v1/dl/getContent/657074Regards,Adzim
