Stratix 10 PCI Express Avalon®-MM DMA Reference Design. Interrupt generation.

Hi,

Thanks for reaching, Apologize that I cannot get your question very clear.

1. As I understood from the description, I must first enable interrupts by accessing the PCIe Interrupt Enable Register, which is located at 0x0050.

• Can I know which description and which document that you are referring at ?

1. Please tell me how to properly translate the address from BAR in order to access this register from under windows.

• Can you specific which BAR that you need to translate ?

Also, I attach with AN 829 User guide, it might contain information that needed by you.

https://www.intel.com/content/www/us/en/docs/programmable/683554/18-0/working-with-the-reference-design.html

Regards,

Wincent_Intel

Hi,

I wish to follow up with you about this forum case.

Hoping to hear back from you so that we can proceed for next step.

Regards,

Wincent_Intel

Hello ! thanks for your reply !
Your question :

• Can I know which description and which document that you are referring at ?

This is UG - 20033 (2019.07.18) Intel Stratix10 Avalon - MM Interface for PCI Express Solutions User Guide.

7.2.1. PCI Express Avalon-MM Bridge Register Address Map.

• Can you specific which BAR that you need to translate ?

as shown in the Qsys structure (picture above), from the BAR 0 register I get access to the DMA mechanism. bar4 provides access to the internal memory. at the moment I don’t know how to access the Avalon-MM to PCIe Interrupt Enable Register via CRA

thanks for the answer

Hi,

For Avalon-MM to PCIe Interrupt Enable Register via CRA,

You may refer user guide at below link, there might got the information you needed.

https://www.intel.com/content/www/us/en/docs/programmable/683724/18-0/avalon-mm-to-pci-express-interrupt-registers.html

Let me know if any other further clarification is needed.

Regards,

Wincent_Intel

Thanks for your reply.
I have already seen this documentation many times. But I work with Stratix10 Avalon MM PCIExpress with DMA. I will repeat my question. It is as follows: how do I get access to these registers that you link to. Namely Avalon-MM to PCIe Interrupt Enable Register and Avalon-MM to PCIe Interrupt Status Register. Should it be a call through the BAR or is it a call to the configuration space type 0 , type 1 ?
thanks for your reply

Hi,

​

I dont understand your question on that, can you explain more where you stuck at ?

Are you mean you stuck on you not sure how to register Avalon-MM to PCIe Interrupt Enable Register?

Regards,

Wincent_Intel

Good day! Thanks for your attempt to help.

Perhaps my first question was not read carefully.

Let's go first.

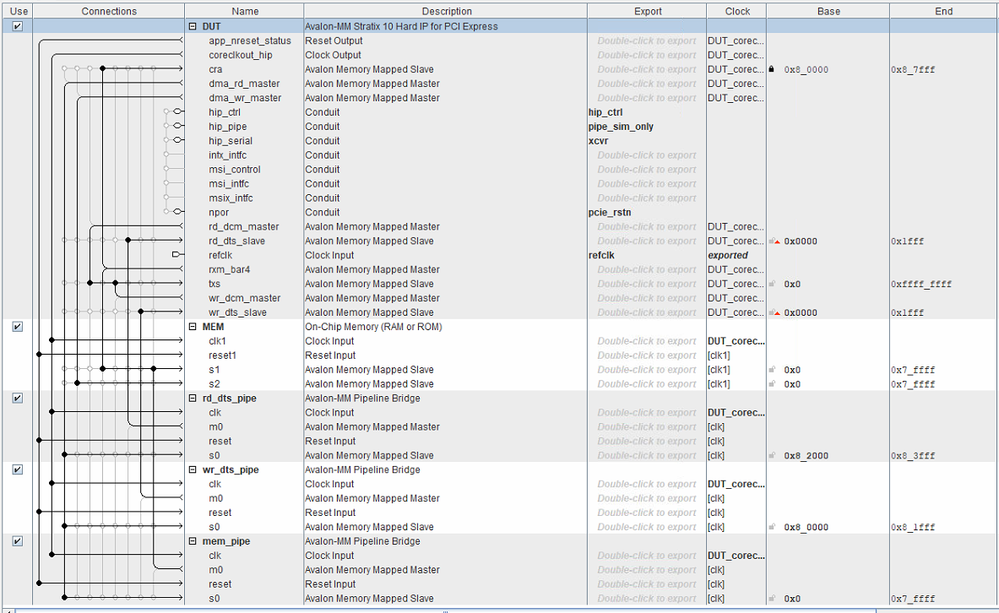

I am developing a system (PCIExpress endpoint) based on a Stratix 10 board. This card contains a PCI Express interface. To read and write data to the board, I independently develop a driver for the Windows operating system. I built the system using Quartus Platform Designer. System Contents is shown in the figure. With a driver and BAR0 register, I control reads and writes from the board via DMA. Also, if necessary, through BAR4 I carry out simple read and write operations in on-chip memory.

SYSTEM CONTENTS

When my algorithms work

I need to generate custom interrupts. For this I use the rxm_irq_i{15:0} interface. When a pulse is applied to any of these inputs, interrupt registration does not occur. From the descriptions of the AN 829 User guide and the Intel Stratix10 Avalon - MM Interface for PCI Express Solutions User Guide, I realized that I need to enable interrupts through the Avalon-MM to PCIe Interrupt Enable Register .

my question to you is how to access this register through driver in windows ? how to correctly translate the address in accordance with the system contents shown in the figure? or should I implement logic inside the FPGA? without the participation of the host, will provide access to this register through the CRA interface?

Thanks for your reply. I hope that this time you understand the question.

Regards

Hi,

I wish to follow up with you on this case.

Else, This thread will be transitioned to community support.

If you have a new question, feel free to open a new thread to get support from Intel experts.

Regards,

Wincent_Intel

Hi ! Thanks for the answer.

You wrote:

……. if you are using rxm_irq_i signal, please noted that These signals are not available when the IP core is operating in DMA mode (i.e. when the Enable Avalon-MM DMA option in the Avalon-MM Settings tab of the GUI is set to On).

My question is in continuation of an open topic

How to generate a custom (MSI) interrupt with multiple sources? And when I need use Avalon-MM DMA?

In progect I will translate rxm_irq_i signals from altera_pcie_s10_hip_avmm_bridge.v module to top level ep_g3x8_avmmdma256_integrated.v.

When using .intx_req_i I only get the legacy interrupt, and DMA does not work because it will generate MSI interrupt.

I am currently using a design that I adapted for my board and that should be very familiar to your team:

Intel pcie example design.

https://community.intel.com/t5/FPGA-Wiki/Reference-Design-Gen3x8-AVMM-DMA-Stratix-10/ta-p/735907

Regards

Hi,

You can try to use AVMM code For Qsys-generated Avalon-MM PCIe Hard IP,

• it has up to 16 individual interrupt signals, RxmIrq_<n>[<m>:0], <m>< 16.
• All these inputs will be mapped to one single MSI interrupt output.
• You can create your logic to detect when the wireless frame is received,
• and then use the rxm_irq_i signal to trigger the interrupt. It should work.
• https://community.intel.com/t5/FPGA-Wiki/Handling-PCIe-Interrupts/ta-p/736044

For AVMM DMA,

• the DMA descriptor controller sends an MSI interrupt to the host via TXS interface.
• You need to enable export MSI interface to implement custom MSI interrupt handle
• and send the MSI interrupt via TXS interface,
• I apologize that there is no example for this as I can see.
• As far as I understand, you need to create a MSI (Memory Write) Transaction,
• and transmit it through the TXS interface based on the information that you obtain from the MSI conduit interface,

Hope this answer your question,

Regards,

Wincent_Intel
