ContributorClock constrains for GPIO IP core of arria 10
Hi, all
fpga : 10ax115N3f45I1sg
quartus : 18.0.0 standard version
Now I'm using GPIO IP core to design using bus lvds. And for this IP, I use half rate design, read and wirte use seperate clocks. IP design likes below:
gpio_ip gpio_ip_inst(
.fr_ck_in ()
.hr_ck_in ()
.dout()
.fr_ck_out()
.hr_ck_out()
.oe()
.din()
.pad_io()
.pad_io_n()
);
fr_ck_in = 2* hr_ck_in; fr_ck_out = 2* hr_ck_out;
din belongs to hr_ck_out domain. like below:
always @ (posedge hr_ck_out, posedge rst)
if(rst)
din <= #1 4'h0;
else
din <= #1 din + 4'h1;
Now for the input, I saw the din as the async input; And for the output, I will not output the source clock. (async output)
fr_ck_out/hr_ck_out; fr_ck_in/hr_ck_in are all from the same PLL
/////output

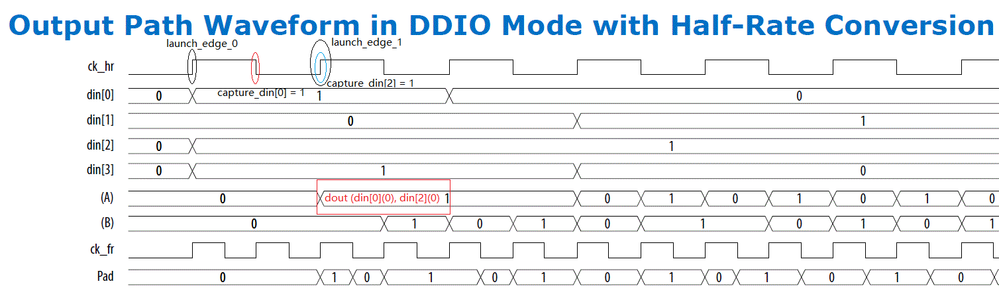

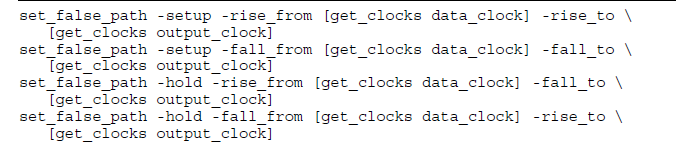

And for output hr_ddio, I found that for the din (din[0] and din[2]， din[1] and din[3]) generated current rising edge of hr_ck_out, it will output at hr_ddio_dout at the next rising edge and falling edge of hr_ck_out. And from the timing analysis result, there's no timing violation. And I didn't found any timing path from din to hr_ddio_dout and only exist the path from din to dr_ddio_datain*. So I don't think there necessary need to set all output ddio timing constrain, right?
///input

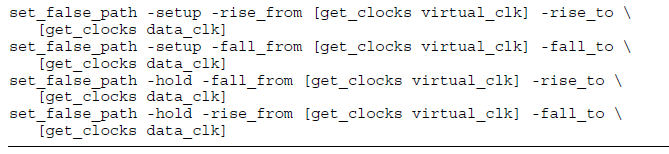

And for input, just because it belongs to async input, there's no necessary need to set the ddio timing constrains and only make sure fr_ck_in and hr_ck_in from the same PLL, right?
////result.
So, for the only constrain for the GPIO design, it only need one constrain: derive_pll_clocks, right?
BRs,
Lambert
Hi Lambert,
Probably should be fine since there's no timing violation.
Since that's asynchronous input and output so not need to set input delay and set output delay. Without set input delay and set output delay, you wouldn't see any timing violation one.
Thanks,
Regards,
Sheng
