Arria 10 HPS EMIF DDR3 Calibration Failure

Hi!

"The EMIF example design calibrates properly using the same timing parameters as I have in the HPS project."

• Can you share the pin connection of the EMIF interface in the EMIF example design?

"Most of the debug guidelines suggest getting the example design to calibrate successfully and then use those settings for the HPS project, but what other things could cause the calibration failure only on the HPS side?"

• After confirming with FPGA EMIF that the memory and device is working properly, then need to check on U-Boot side.

"Are there any debug interfaces that could be useful in gathering additional calibration status information?"

• Unfortunately we don't have a debug interface to debug the HPS EMIF IP directly.
• To debug the HPS EMIF IP, we instantiated a FPGA EMIF interface at the HPS IO Bank and checked the calibration report from EMIF Debug Toolkit.

Regards,

Adzim

Hi Greg,

Thank you for providing the pin assignment.

• The pins are placed at HPS EMIF IP.
• Calibration is successful at this pin assignment and with IP timing parameter.
  • Can you provide the EMIF IP setting from the Parameter Editor GUI?
  • Please provide the memory datasheet as well for checking purpose.

But there is an issue in the U-Boot when using HPS EMIF IP.

1. Can you share some snapshots of the errors?
2. Is there any timing violation occurred after compiling the design?
3. May I know which Quartus version and OS environment that you used?

Thanks!

Regards,

Adzim

Hi Greg,

Is there any update in this thread?

Thank you.

Hi Greg,

You're already using the latest version. This should be fine.

Since you're using a custom board, can you confirm below points:

• The board skew parameter has been set to right configuration for EMIF IP in custom board?
• The EMIF example design can pass calibration and working properly in custom board?
• In Arria 10 SoC Dev Kit, the EMIF example design and GHRD are working properly?

Can you take some snapshots of the EMIF IP and share it here?

Also can you let me know the memory part that you used? You can share the memory datasheet if possible.

Thanks!

Regards,

Adzim

Hi Greg,

Thank you for the information.

I have checked the EMIF setting with the given memory datasheet.

Some of your setting may not be accurate as stated in the datasheet.

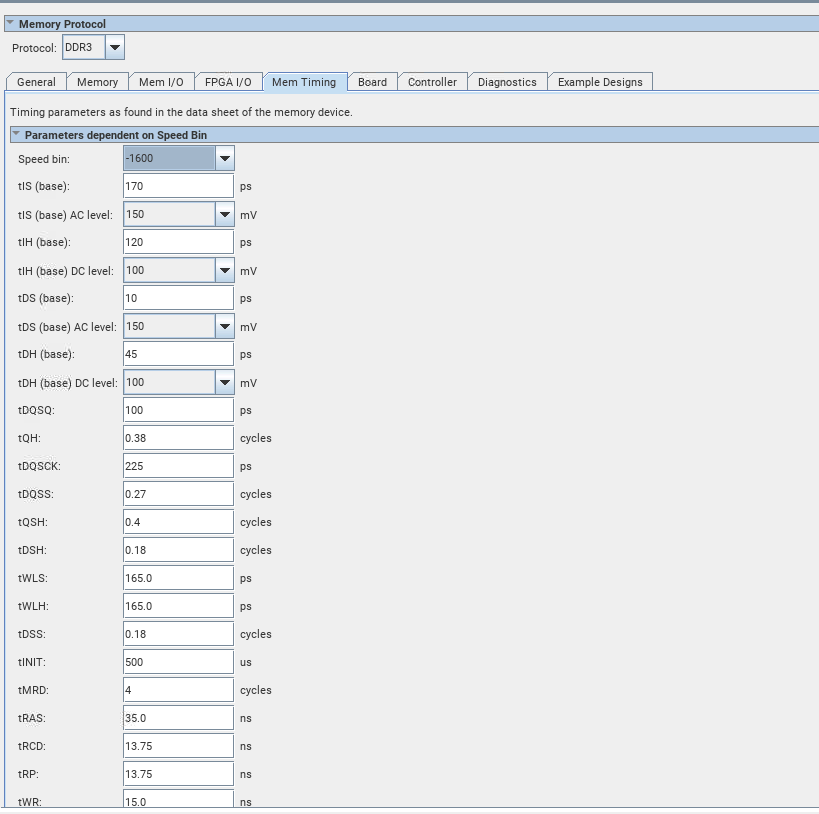

I may suggest you to compare with the snapshot that I will attach later.

For HPS EMIF design in custom board, do you see any timing issue in the timing report?

I like to suggest you to perform the board simulation first to get the accurate skew information because this part can be a potential cause of the calibration issue.

Regards,

Adzim

Hi Greg,

Thank you for the update.

1. We are currently testing with a memory clock of 400MHz (DDR3-800) with the thought that slowing down the memory interface would give us the best chance of successful calibration. Is this a good idea, or should we run at the rated DDR3-1600 speed of the SODIMM?

• Yes it's sometimes can pass the calibration at lower frequency.
• Have you tried to run at 800MHz? This may need to change some settings that related to memory clock frequency.

2. Are the settings you provided taking into account our memory clock of 400MHz, or should we make additional adjustments (such as dropping our CAS latency to 6 and write CAS latency to 5)?

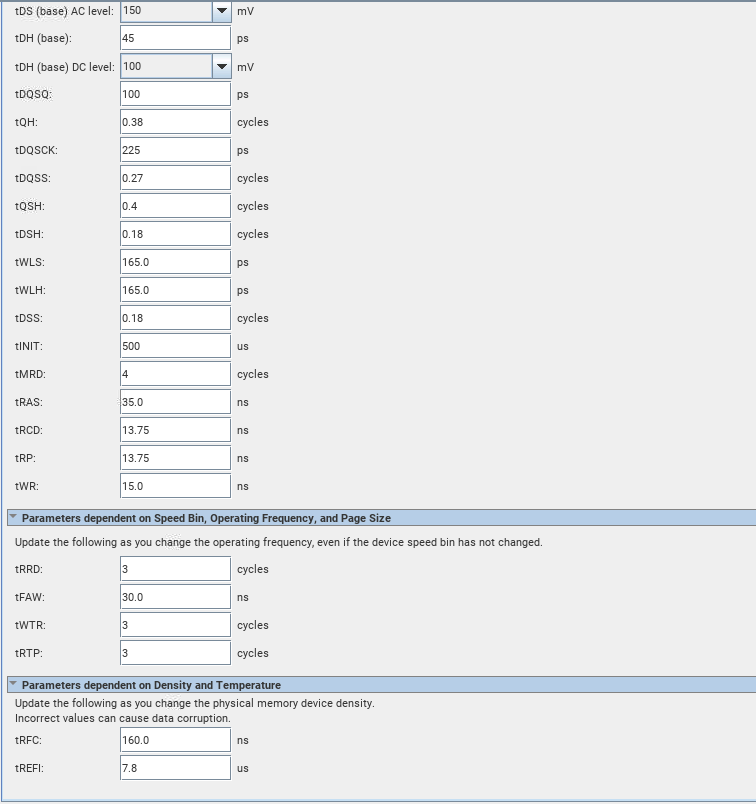

• Yes I have used the memory clock of 400MHz to set the tIS, tIH, tRRD, tFAW, tWTR, tRTP.

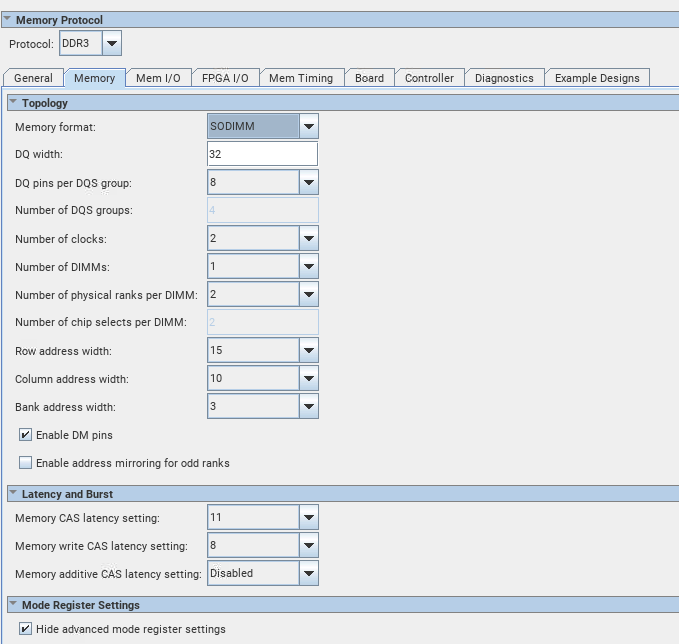

• The CAS latency and write CAS latency have been taken from Speed Bin table for DDR3-1600.

3. For tRRD, tWTR, and tRTP, you changed the values from 4 cycles to 3. Is this correct per pg. 81 of the memory datasheet? Also, would you set tFAW to 50ns for DDR3-800 or 40ns for DDR3-1600 since we're using x16 devices?

• My understanding on the datasheet that you have given that the base device is configured with 256Meg x 8.
• Then the page size for this configuration is 1KB.
• Therefore I have referred to DDR3-1600 Speed grade column and 1KB page size row.
• The cycle values are been calculated based on the memory clock of 400MHz.

4. Since the EMIF example design passes calibration, are there things specific to the GHRD that we should be looking at (e.g. reset, PLL lock status, any debug registers, etc) to let us know the status of the calibration?

• The HPS EMIF is a harden IP that is not exposed to user logic.
• The status signal is not provided from the IP to analyze the calibration status.
• That's why we used FPGA EMIF that placed at similar pin location and have similar EMIF IP configuration to debug the interface.
• But currently the calibration is okay at the FPGA EMIF.

Since you have the skew information, are you seeing any timing violation in the design after finishing compilation process?

Thanks.

Regards,

Adzim

Hi Greg,

"Given that the EMIF example design passes calibration (at least per the local_cal_status_pass signal), can you think of anything that would cause the HPS to fail other than something in the HPS design structure, timing errors, or the U-Boot SPL bootloader configuration?"

• From the EMIF perspective, we always check the HPS EMIF design by implementing FPGA EMIF interface with HPS EMIF pinout. So then we can check the issue in between the memory and FPGA device.
• But then there is no issue at EMIF part.

"Does the HPS calibration do anything different that what occurs during the EMIF example design calibration (e.g. the EMIF always exercises the same address, but the HPS does a more exhaustive memory test)?"

• No, it's run through similar process as describe in the User Guide.

"Or should any DDR3 memory configuration that passes calibration for the EMIF example design always pass when combined with the HPS EMIF conduit?"

• It's should be passed calibration as well as FPGA EMIF design.

"For the HPS test, I am programming the full FPGA bitstream (i.e. not using Early Release mode) via JTAG and then running the ARM DS bootloader script from RocketBoards to load and execute the SPL initialization code. Does this seem like the best way to test the HPS calibration, or should I try another method?"

• I will get back to you on this question.
• I may suggest you to follow the Arria 10 SoC Boot User Guide for a reference.
• Link: https://www.intel.com/content/www/us/en/docs/programmable/683735/current/arria-10-soc-boot-user-guide.html

Regards,

Adzim

Hi Greg,

Thank you for the update on your tests.

On our custom board, it looks like we pass the traffic generator test when we are operating in quarter rate user clock mode, but in half rate user clock mode we don't get any result from the traffic generator test (no pass, fail, or timeout). Do you have any idea what could cause this? I would at least expect a fail or timeout if there was an issue detected during the calibration.

• I'm not aware of this issue that occur when using half rate clock mode.
• Maybe you can try to run with a few seed and check if that can give another result.
• But so far the calibration is always passing in all board which is means that the memory interface should be working fine on the board.

Also, when I step through the U-Boot SPL code in the debugger on the HPS design, I am seeing the code jump to an error handler that says to "hang forever" very close to a comment that says that the MPFE hang workaround should be complete. This looks like it would be just before or possibly during DDR calibration. The MPFE seems to refer to the "Multi-port Front End" memory arbiter. Any ideas what could cause this?

• I'm not very familiar with U-Boot part. Maybe you can open another ticket to check on U-Boot part.
• I got an info from Embedded team to ask you to follow the setup from the document in the link. https://www.rocketboards.org/foswiki/Documentation/BuildingBootloaderCycloneVAndArria10

Regards,

Adzim

Hi Greg,

I think it's better for you to open another thread for checking on bootloader part.

So then the embedded expert can directly help you on that part.

Please let me know on your concern. Thanks!

Regards,

Adzim
