error message: can't fit into the design

Hello,

i am trying to use QSPI controller along with ALTPLL. But during compilation it gives an error. Am using pll configuration with 2 clocks C0 and C1.

the error message is:

Error (176394): Can't fit 2 PLLs in the device -- only 1 PLLs are available

Info (176395): Location PLL_3 cannot be used due to package or device migration constraints

Info (176395): Location PLL_4 cannot be used due to package or device migration constraints

Info (176395): Location PLL_2 cannot be used due to package or device migration constraints

can someone please suggest how to overcome the error

20 Replies

  • JOHI's avatar
    JOHI
    Icon for Contributor rankContributor
    7 years ago

    Hello,

    A single pll can have multiple outputs depending on the frequencies you want to generate. Did you consider this option?

    Br.

    Johi.

    • AKAYA's avatar
      AKAYA
      Icon for Occasional Contributor rankOccasional Contributor
      7 years ago

      thanks for the reply

      am using 10M25SAE144C8G device. it shows a resource count of 4

      I can't change the device. is there any other option....

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    7 years ago

    Hi AKAYA,

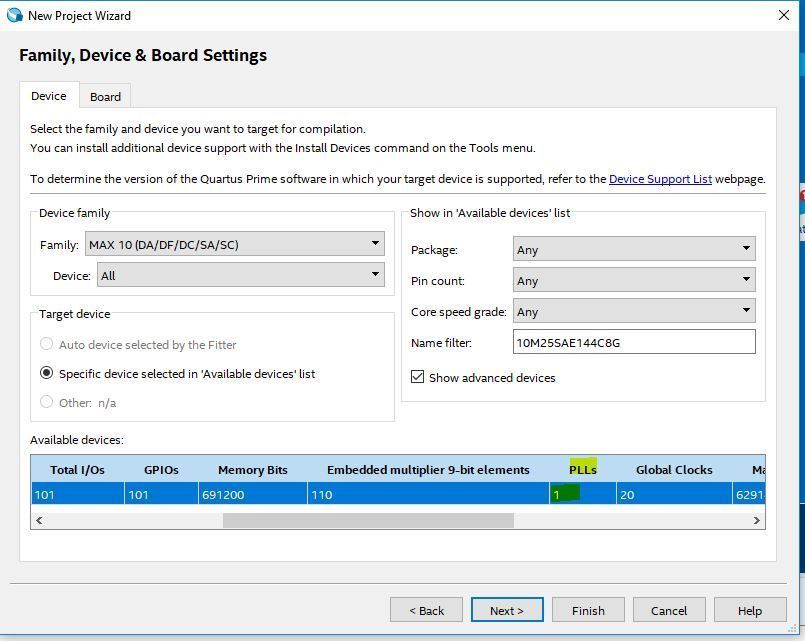

    The device 10M25SAE144C8G is having only 1 PLL.Please check the image.

    You can follow the suggestion given by @JOHI​ , use single PLL with multiple outputs depending frequency requirement.

    Regards

    Anand

    • AKAYA's avatar
      AKAYA
      Icon for Occasional Contributor rankOccasional Contributor
      7 years ago

      thanks for the reply...

      but can you tell me what exactly is the reason for the error...

      I have used an ALTPLL IP with C0 as the compensated output....

      • AnandRaj_S_Intel's avatar
        AnandRaj_S_Intel
        Icon for Regular Contributor rankRegular Contributor
        7 years ago

        Hi Akaya,

        Fitter cannot place the specified node at the specified location which has been disabled to drive to the clock networks because the current package does not support it, or because it cannot be used when device migration is selected.

        I guess, Initial design was for some other device from same family 10M25 which had 4-PLL and you have migrated to 10M25SAE144C8G which is having only 1 PLL because of which you are having error.

        If you are using 10M25SAE144C8G device you can have 1-pll with 4-output max.

        Check .qsf file for lines like set_location_assignment PLL_{number} -to "{path}"

        set_location_assignment PLL_0 -to "{path}"

        set_location_assignment PLL_1 -to "{path}"

        set_location_assignment PLL_2-to "{path}"

        set_location_assignment PLL_3 -to "{path}"

        have set_location_assignment PLL_0 -to "{path}" and remove other line set_location_assignment PLL_1/2/3 -to "{path}" and Delete db and incremental_db folders and recompile the design and check.

        Let me know if this has helped resolve the issue you are facing or if you need any further assistance.

        Best Regards,

        Anand

    • AKAYA's avatar
      AKAYA
      Icon for Occasional Contributor rankOccasional Contributor
      7 years ago

      thanks for the reply....

      I am attaching the project here...

      the QSYS is in the folder RSU--> OnChip.qsys

      • AKAYA's avatar
        AKAYA
        Icon for Occasional Contributor rankOccasional Contributor
        7 years ago

        am not able to attach the project here

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    7 years ago

    ​Hi,

    I have not modified the design which you have shared in previous post attachments.

    1. You can add Qspi and PLL in Qsys system(onchip.qsys/onchip.qip) and remove the pll.qip file from project and onchip.qip set as top level entity and compile. Attached the file do pin assignment and other configuration as per you requriment

    For RSU design example (QSPI &PLL) look into design stores or follow an741 or check below video links

    https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/an/an741.pdf

    https://fpgacloud.intel.com/devstore/platform/?search=RSU&acds_version=any&family=max-10search for reference design.

    https://www.youtube.com/watch?v=Qgwd8ftiTZc

    https://www.youtube.com/watch?v=bAyqWWm1yLU

    https://www.youtube.com/watch?v=r3wcgr3LmjA

    Let me know if this has helped resolve the issue you are facing or if you need any further assistance.

    Regards

    Anand

    • AKAYA's avatar
      AKAYA
      Icon for Occasional Contributor rankOccasional Contributor
      7 years ago

      thank you for the reply....

      the project is compiling now without any error...

      thanks for the help
