New ContributorStratix 10 Development Kit HiLo connector
Where can I find the Stratx 10 development kit DDR* HiLo board schematics and part number for the HiLo connector on these boards?
Forum Discussion
11 Replies
AqidAyman_AlteraRegular Contributor
Hi, can you confim which exact development kit from below link?
Stratix 10 devkit
- AqidAyman_Altera
Hello, I wish to follow up with you.
Alternatively, you can check the Installer Package of the devkit you are using from the website.
DaveMM"Stratix 10 GX FPGA Development Kit Edition"
- AqidAyman_Altera
Hi David,

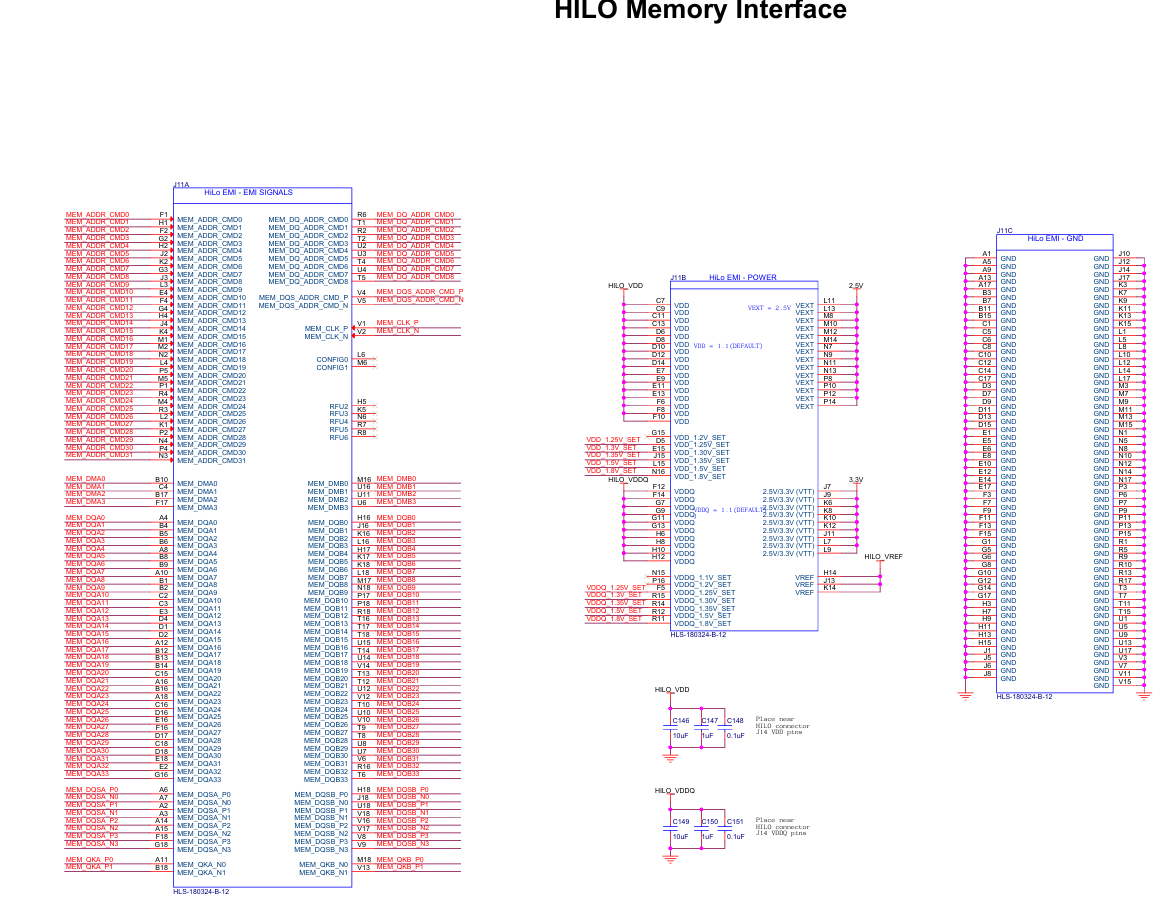

Unfortunately, we are no longer supported this specific development kit. However, I managed to find the old schematic for this board from Terasic website:
Terasic - Phased Out - Main Boards - Stratix 10 GX FPGA Development Kit
The part number stated is HLS-180324-B-12.
- AqidAyman_Altera
Hi David,
Unfortunately, we are no longer supported this specific development kit. However, I managed to find the old schematic for this board from Terasic website:
Terasic - Phased Out - Main Boards - Stratix 10 GX FPGA Development Kit
The part number stated is HLS-180324-B-12.
- AqidAyman_Altera
Hi David,
Unfortunately we are no longer supported this specific development kit version. The official schematic from our website is not found.
However, I managed to find the old schematic for this board from the Terasic website.
The part number stated is HLS-180324-B-12.
sstrellSuper Contributor
It's very weird that a kit I have (a number of them actually) now only has documentation at Terasic, especially considering it's not a Terasic board!
JohnT_AlteraI am trying to find older installation kit as it should be included part of the installation kit.
- DaveMM
I contacted the vendor for the connector. It is no longer available. Case closed. Thanks.
