Issue: using LVDS SERDES IP core, the full compilation stops in the Timing Analysis phase, with the following error: "Tcl error: ERROR: Argument <node_object> is an object filter that matches no objects. Specify one matches only one object"
This happens in:
Quartus Pro 19.3
Quartus Pro 19.4
Quartus Pro 20.1
The same design in Quartus Pro 19.1 works flawlessly.
As specified, the .sdc file contains the -create_base_clocks option
Attachment: a reduced version of the full project that has however the issue.

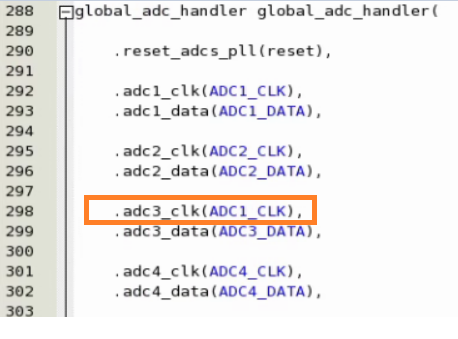

Upon checking, this is caused by the typo in Arria10_DAQ.v (Line 298)
After replacing line 298 with .adc3_clk(ADC3_CLK), you will see Fitter error below:
Error(14566): The Fitter cannot place 1 periphery component(s) due to conflicts with existing constraints (1 IOPLL(s)). Fix the errors described in the submessages, and then rerun the Fitter. The Intel FPGA Knowledge Database may also contain articles with information on how to resolve this periphery placement failure. Review the errors and then visit the Knowledge Database at https://www.altera.com/support/support-resources/knowledge-base/search.html and search for this specific error message number.
Error(175001): The Fitter cannot place 1 IOPLL, which is within LVDS SERDES Intel FPGA IP adc_lvds_rx_altera_lvds_1940_p47vjlq.
Info(14596): Information about the failing component(s):
Info(175028): The IOPLL name(s): global_adc_handler|adc_lvds_rx3|lvds_0|core|arch_inst|internal_pll.pll_inst|altera_lvds_core20_iopll
Error(16234): No legal location could be found out of 16 considered location(s). Reasons why each location could not be used are summarized below:
Error(175006): There is no routing connectivity between source pin and the IOPLL
Info(175026): Source: pin ADC3_CLK
Info(175015): The I/O pad ADC3_CLK is constrained to the location PIN_AL5 due to: User Location Constraints (PIN_AL5)
Info(14709): The constrained I/O pad is contained within this pin
Info(175021): The pin was placed in location pin containing PIN_AL5
Error(175022): The IOPLL could not be placed in any location to satisfy its connectivity requirements
Info(175029): 14 locations affected
Info(175029): IOPLL_2A
Info(175029): IOPLL_2F
Info(175029): IOPLL_2G
Info(175029): IOPLL_2H
Info(175029): IOPLL_2I
Info(175029): IOPLL_2J
Info(175029): IOPLL_2K
Info(175029): IOPLL_2L
Info(175029): IOPLL_3C
Info(175029): IOPLL_3D
Info(175029): IOPLL_3E
Info(175029): IOPLL_3F
Info(175029): and 2 more locations not displayed
Error(20196): Location(s) already occupied and the components cannot be merged. (2 locations affected)
Info(175029): IOPLL_3A. Already placed at this location: IOPLL global_adc_handler|adc_lvds_rx1|lvds_0|core|arch_inst|internal_pll.pll_inst|altera_lvds_core20_iopll
Info(175029): IOPLL_3B. Already placed at this location: IOPLL global_adc_handler|adc_lvds_rx2|lvds_0|core|arch_inst|internal_pll.pll_inst|altera_lvds_core20_iopll
This error indicates that there is another design component already placed at this location and the two components are not mergeable. Refer to details in Info(175029)
To fix this fitter error, reassign ADC3_CLK to other pin location. After reassigning the pin location, the compilation passed without the error
Error(23035): Tcl error: ERROR: Argument <node_object> is an object filter that matches no objects. Specify one matches only one object.
I'm driving two LVDS SERDES RX IP cores with the same clock because I do not have space for other pins (and as you said only 1 PLL for every bank), so two ADCs are read with the same clock.
Quartus 19.1 correctly understands this and generates two instances of LVDS IP connected to the same clock that shares the same PLL.
Do you suggest that I have to try and merge the two LVDS cores that have the same clocks, i.e. from 2 LVDS of 8 bits to 1 LVDS of 16 bits, for example?
I also used a similar solution in the "altera_lvds_core20_191\synth\lvds_rx_altera_lvds_core20_191_5u346cy.sdc" file to get rid of some warning messages.
I replaced
set pll_fclk_tree_name "${lvds_clock_tree_inst_name}|lvdsfclk_in"
It is glad that the solution in the post solves the error in your design. Thanks for the update. This is beneficial to other customer who faces the same problem.
I have written a script that allows for a more or less automatic solution within Quartus to replace the line causing the error. As it is possible to execute a tcl script after quartus_ipgenerate to replace the line in sdc_util.tcl, I wrote such a script.
The content of the script is:
set module [lindex $quartus(args) 0]
if [string match "quartus_ipgenerate" $module] {
post_message "Correcting name of LVDS clock tree instance"
set timestamp [clock format [clock seconds] -format {%Y%m%d%H%M%S}]
set filename "ip/../xxx_lvds_rx/altera_lvds_core20_191/synth/sdc_util.tcl"
set temp $filename.new.$timestamp
set backup $filename.bak.$timestamp
set in [open $filename r]
set out [open $temp w]
# line-by-line, read the original file
while {[gets $in line] != -1} {
if {[string first "set fclk_name" $line] != -1} {
set line " foreach_in_collection lvds_node \[get_nodes -nowarn \"\$lvds_instance_name|*|fclk\"\] { set fclk_name \[get_node_info -name \[get_edge_info -src \[get_node_info -clock_edges \[lindex \$lvds_node 0\]\]\]\]; break }"
}
# then write the transformed line
puts $out $line
}
close $in
close $out
# move the new data to the proper filename
file link -hard $backup $filename
file rename -force $temp $filename
}
You have to set the filename to the correct location.
Additionally, add the following line to .qsf file:
