New ContributorSchematic Symbol Parameter in Hex
Hello,
how can I input a hexadecimal value in the parameter table of a block diagram/schematic file (.bdf)?
behind the block is the following VHDL code:
entity reg is generic ( constant REG_BASE_ADDR : natural := 16#4010#; ); port ( ... ); end;
every variant I could imagine results in an error like:
Parameter | Value | Type REG_BASE_ADDR | x"4010" | Auto Error (10515): VHDL type mismatch error at reg.vhd(17): natural type does not match string literal
Hi,
Done testing. Use the following for example:
addr : std_logic_vector(15 downto 0) := x"FFFF"
Then change line 16 from:
signal reg : std_logic_vector(15 downto 0) := std_logic_vector(to_unsigned(addr, 16));
to:
signal reg : std_logic_vector(15 downto 0) := addr;
You'll be able to use Hexadecimal type for example value AAAA
Thanks,
Best Regards,
Sheng
9 Replies
sstrellSuper Contributor
Assuming you are using Standard or Lite, you may be running into the limited VHDL 2008 support there: https://community.intel.com/t5/Programmable-Devices/Does-Quartus-20-1-std-support-VHDL-2008-vector-aggregation/m-p/1468730#M90058%3Fwapkw=Error%2010515
- FvM
Hi,
the problem doesn't seem related to VHDL support in my view. You can neither send a hexadecimal literal to a numerical Verilog module parameter. Only decimal numbers seem to be accepted as block parameters for numerical values.
pertrlI'm using Quartus Prime Lite 22.1.2 and 23.1
With verilog it works for me like so:
Parameter | Value | Type REG_BASE_ADDR | 4002 | HexadecimalBut something like X"4000" or 16#4000# is not a VHDL-2008 thing, or is it?
ShengN_alteraHi,
To input a hexadecimal value in the parameter table of a block diagram/schematic file (.bdf), set the (Type) to either Auto or Hexadecimal then under (Value) straight away give a value for example like: a, not need the symbol x""
Thanks,
Regards,
Sheng
- pertrl
This does not work. here is some test code:
library ieee; use ieee.std_logic_1164.all; use ieee.numeric_std.all; entity test2 is generic ( addr : natural := 16#4000# ); port ( i_clk : in std_logic; o : out std_logic_vector(15 downto 0) ); end; architecture arch of test2 is signal reg : std_logic_vector(15 downto 0) := std_logic_vector(to_unsigned(addr, 16)); begin o <= reg; end;generating a symbol from this code results in the following table:
Parameter | Value | Type addr | 16384 | Signed Integerand synthesizes correctly to
using
Parameter | Value | Type addr | 4000 | Hexadecimalresults in an error:
Error (10515): VHDL type mismatch error at /asd.vhd(8): natural type does not match string literal
using
Parameter | Value | Type addr | 4000 | Autosynthesizes incorrectly to:
- ShengN_altera
Hi,
May I know which block you're using in .bdf?
Thanks,
Regards,
Sheng
- pertrl

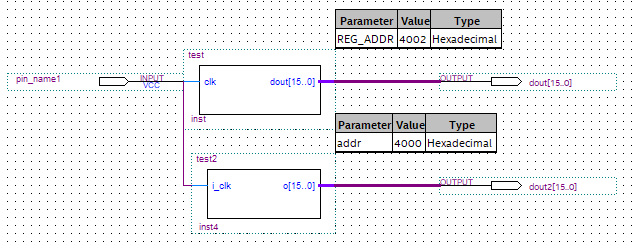

The one you get by clickling File -> Create/Update -> Create Symbole Files from Current File in the*.vhd file.
the upper block with with Verilog works, VHDL does not.
- ShengN_altera
Hi,
Done testing. Use the following for example:
addr : std_logic_vector(15 downto 0) := x"FFFF"
Then change line 16 from:
signal reg : std_logic_vector(15 downto 0) := std_logic_vector(to_unsigned(addr, 16));
to:
signal reg : std_logic_vector(15 downto 0) := addr;
You'll be able to use Hexadecimal type for example value AAAA
Thanks,
Best Regards,
Sheng
- pertrl
Not exactly the same, but it will do, thanks.
