Questasim INTEl EDITION counter simulation

Hello.

I'm using this vhdl code to make an 8 bit counter with enable. Quetasim Intel fpga does not increment the counter regularly (defined as variable).
It goes from 'X' to '1' and then it doesn't count anymore.
Where am I doing wrong?
The code:

library IEEE;
use IEEE.std_logic_1164.all;
use IEEE.numeric_std.all;

entity COUNT8 is

port(

CLK : in std_logic;
EN : in std_logic;
DOUT : out std_logic_vector(7 downto 0)
);

end COUNT8;

architecture behavior of COUNT8 is

begin
-- notice the process statement and the variable COUNT
clk_proc:process(CLK)
variable COUNT:std_logic_vector(7 downto 0) := x"00";
begin
if rising_edge(CLK) then
if en = '1' then
COUNT := std_logic_vector((unsigned(COUNT)) + 1);
DOUT <= COUNT;
end if;
end if;
end process clk_proc;

end behavior;

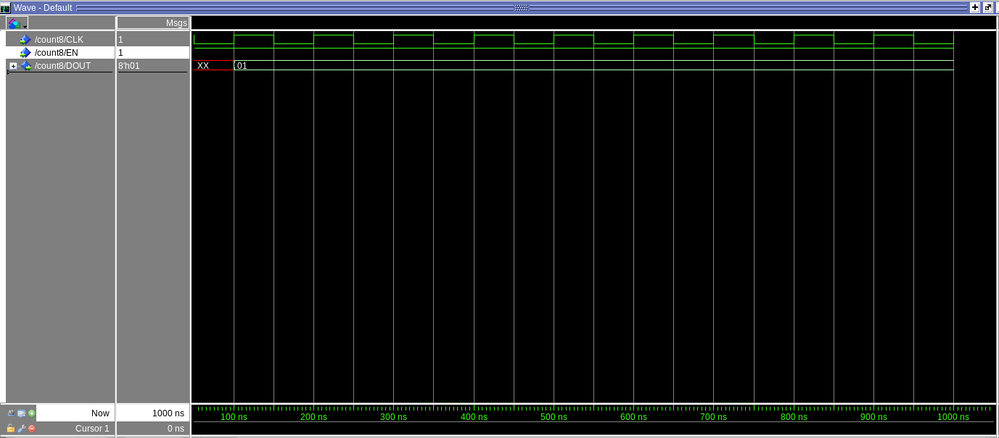

Simulation
  • roeekalinsky's avatar
    roeekalinsky
    2 years ago

    @GOMEZ_IT, I think you were right, this looks like a simulator problem.

    I was able to reproduce your original observation, and it appears to be a bug in older versions of Questa, up to the version shipped with Quartus Pro 23.3.

    The version of Questa shipped with Quartus Pro 23.4 doesn't appear to exhibit this symptom. Or at least not with this test case. But I don't know if this was a known bug that got fixed, or if the symptom just went away with other changes in Questa. That's something you should confirm with Intel and/or Mentor/Siemens.

    For ease of testing, I modified your test case slightly to be able to run in a more minimalist command line mode, with console messages in lieu of waveforms. See attached zip.

    Running this test case with all the simulators I currently have available to me I got the following results:

    • Questa from Quartus Pro 22.2: bad
    • Questa from Quartus Pro 22.4: bad
    • Questa from Quartus Pro 23.1: bad
    • Questa from Quartus Pro 23.2: bad
    • Questa from Quartus Pro 23.3: bad
    • Questa from Quartus Pro 23.4: good
    • Modelsim DE 2022.4: good
    • ghdl 4.0.0-dev: good

    See attached log.txt for the above results.

    -Roee

13 Replies

  • roeekalinsky's avatar
    roeekalinsky
    Icon for Contributor rankContributor
    2 years ago

    You're going wrong in using a variable declared in the process, whereas you should be using a signal declared in the architecture. As you have it coded, with every entry into the process, i.e. every clock cycle, your variable is getting reinitialized to zero and then incrementing by one.

    • GOMEZ_IT's avatar
      GOMEZ_IT
      Icon for Occasional Contributor rankOccasional Contributor
      2 years ago

      But why if i invert 2 lines of code the simulation works?

      library IEEE;
      use IEEE.std_logic_1164.all;
      use IEEE.numeric_std.all;

      entity COUNT8 is

      port(

      CLK : in std_logic;
      EN : in std_logic;
      DOUT : out std_logic_vector(7 downto 0)
      );

      end COUNT8;

      architecture behavior of COUNT8 is

      begin
      -- notice the process statement and the variable COUNT
      clk_proc:process(CLK)
      variable COUNT:std_logic_vector(7 downto 0) := x"00";
      begin
      if rising_edge(CLK) then
      if en = '1' then

      DOUT <= COUNT;
      COUNT := std_logic_vector((unsigned(COUNT)) + 1);

      end if;
      end if;
      end process clk_proc;

      end behavior;

      • roeekalinsky's avatar
        roeekalinsky
        Icon for Contributor rankContributor
        2 years ago
        @GOMEZ_IT wrote:

        But why if i invert 2 lines of code the simulation works?


        I'm surprised to hear that it does. I wouldn't think it should work in either case. Looks like it's time to dig into the VHDL LRM for clarification on the exact semantics of variable initialization in a process.

  • roeekalinsky's avatar
    roeekalinsky
    Icon for Contributor rankContributor
    2 years ago

    Looks like I was mistaken. An initial value at the variable declaration in the process takes effect at time zero, not at every entry into the process. Learn something every day.

    But now, the mystery deepens. This explains why it does work, but it doesn't explain why your original example didn't work. And in fact, simulating it both ways on my end, I see it work in both cases. I can't reproduce your original result of it not working.

    You didn't share your test bench, so I created a simple one to simulate it on my end. I'm curious if the crux lies in how you're generating the inputs to this module, if there is some gotcha there somehow. Can you please share your test bench code?

    • GOMEZ_IT's avatar
      GOMEZ_IT
      Icon for Occasional Contributor rankOccasional Contributor
      2 years ago

      This is the bench code:

      library IEEE;
      use IEEE.STD_LOGIC_1164.ALL;
      use IEEE.STD_LOGIC_ARITH.ALL;
      use IEEE.STD_LOGIC_UNSIGNED.ALL;

      entity COUNT8_tb is
      end COUNT8_tb;

      architecture Behavioral of COUNT8_tb is
      signal CLK : std_logic := '0';
      signal EN : std_logic := '0';
      signal DOUT : std_logic_vector(7 downto 0);


      begin
      -- Clock process
      process
      begin
      wait for 5 ns;
      CLK <= not CLK;
      end process;

      -- Stimulus process
      process
      begin
      wait for 10 ns;
      EN <= '1';
      wait;
      end process;

      -- Instantiate the COUNT8 module
      uut :entity work.COUNT8
      port map (
      CLK => CLK,
      EN => EN,
      DOUT => DOUT
      );

      end Behavioral;

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    It does not make sense why your changed code works. As mentioned, COUNT gets reset every time the CLK changes so you can only count to 1 with this design, as you see in your original simulation.

    For a counter, you should have a reset mechanism (synchronous or asynchronous control signal) and not initialize the variable in the variable declaration.

    • GOMEZ_IT's avatar
      GOMEZ_IT
      Icon for Occasional Contributor rankOccasional Contributor
      2 years ago
      @sstrell wrote:

      It does not make sense why your changed code works. As mentioned, COUNT gets reset every time the CLK changes so you can only count to 1 with this design, as you see in your original simulation.

      For a counter, you should have a reset mechanism (synchronous or asynchronous control signal) and not initialize the variable in the variable declaration.

      Looks like I was mistaken. An initial value at the variable declaration in the process takes effect at time zero, not at every entry into the process. Learn something every day.



  • roeekalinsky's avatar
    roeekalinsky
    Icon for Contributor rankContributor
    2 years ago

    @GOMEZ_IT, I think you were right, this looks like a simulator problem.

    I was able to reproduce your original observation, and it appears to be a bug in older versions of Questa, up to the version shipped with Quartus Pro 23.3.

    The version of Questa shipped with Quartus Pro 23.4 doesn't appear to exhibit this symptom. Or at least not with this test case. But I don't know if this was a known bug that got fixed, or if the symptom just went away with other changes in Questa. That's something you should confirm with Intel and/or Mentor/Siemens.

    For ease of testing, I modified your test case slightly to be able to run in a more minimalist command line mode, with console messages in lieu of waveforms. See attached zip.

    Running this test case with all the simulators I currently have available to me I got the following results:

    • Questa from Quartus Pro 22.2: bad
    • Questa from Quartus Pro 22.4: bad
    • Questa from Quartus Pro 23.1: bad
    • Questa from Quartus Pro 23.2: bad
    • Questa from Quartus Pro 23.3: bad
    • Questa from Quartus Pro 23.4: good
    • Modelsim DE 2022.4: good
    • ghdl 4.0.0-dev: good

    See attached log.txt for the above results.

    -Roee

    • GOMEZ_IT's avatar
      GOMEZ_IT
      Icon for Occasional Contributor rankOccasional Contributor
      2 years ago
      Thank you all for the great support!!
  • roeekalinsky's avatar
    roeekalinsky
    Icon for Contributor rankContributor
    2 years ago

    P.S. Questa bug notwithstanding, I would still advise you to avoid this sort of coding style where you're relying on language features that are more obscure, even if technically correct. It makes your code less readable. And you also increase your risk of treading into areas where even the tools may not be 100% conforming and may not be well tested, as we saw here.

    And also, separately, that's sound advice from @sstrell about using a reset signal rather than relying on variable initialization. At least in RTL code that's intended for synthesis. Physical support for initial values varies between different FPGA device families and their various internal resource types. And synchronization issues... So there's plenty of opportunity to get yourself in trouble with that too if you're not careful.

  • SyafieqS's avatar
    SyafieqS
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    I’m glad that your question has been addressed, I now transition this thread to community support. If you have a new question, Please login to https://supporttickets.intel.com/, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.


    p/s: If any answer from community or Intel support are helpful, please feel free to mark as solution, give Kudos and rate 5/5 survey


    • roeekalinsky's avatar
      roeekalinsky
      Icon for Contributor rankContributor
      2 years ago

      @SyafieqS,

      Can you confirm whether or not this was in fact a known bug that was fixed in the Questa version that shipped with Quartus Pro 23.4?

      Thanks,

      -Roee
