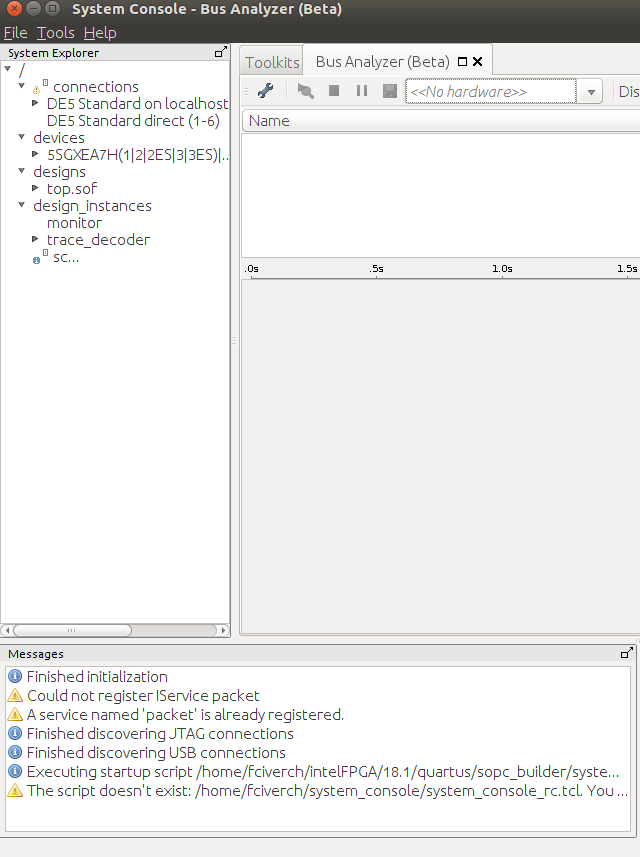

No hardware detected in beta bus analyzer

You don't show it, but did you enable bus analyzer use for particular interfaces in the Interconnect Requirements tab for the system?

Dear YL,

Thank you for your answer.

Yes, there is no .tcl file loaded by the tool. Do I have to add? If so, which commands do I have to write inside the .tcl script to establish the communication?

Thank you.

Best Regards,

Federico

Dear sstrell,

I did not enable the instrumentation in the Interconnect Requirements tab. After your answer, I enabled it from platform designer (I set "TRUE" for "Enable Instrumentation" under "Interconnect Requirements") but the bus analyzer is still showing "no hardware" (of course, I recompiled the design after the changes). Do you have other ideas?

Thank you.

Federico

Did you add the JTAG Debug Link component as mentioned in the Wiki?

I use the 18.1 version of Quartus and, as described in the guide, from version 14.1 "JTAG Debug Link is auto-instantiated and is not a selectable IP core from the IP Catalog".

Thus, I did not add anything in the design and I only enabled the instrumentation.

​Do I have to add something else in the design?

Thank you.

​

Federico

I did not write that I would like to monitor the avalon bus of a qsys subsystem. Thus, the signals that I would like to monitor are present in the subsystem interconnect requirements tab but they are not present in the interconnect requirements tab of the top instance of qsys hierarchy. Could this be the problem?

Thank you.

Federico

I have noticed that, after HDL generation in the platform designer, the report gives me the following warning for all the slaves that I considered:

Warning: Cannot insert performance monitor for sysid_qsys_0.control_slave because it only has one connection. Add more connections to allow monitor insertion.

In the Instrumentation tab, I have added one master MM and many slaves MM connect to the same master MM. While the master monitor seems to be ok, I have the above warning for all the slaves.

What am I missing? Do you have any idea?

Thank you.

Federico

I have not tried this with a hierarchical system design, so I'm not sure if that is the problem.

As for the warning, the monitor is most likely on the master side (single monitor monitors all transactions to/from that master), so there's no reason/need to add these extra monitors.
