I am trying to use the Agilex I Series Board having the Device Part number AGIB027R29A1E2VR0, containing 1 F Tile and 2 R Tile. The board was bearing the ordering code as DK-DEV-AGI027RES.

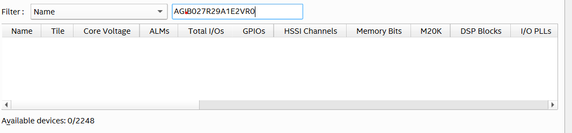

I tried the below thing both on Quartus Prime Pro 25.1 and Quartus Prime Pro 24.1. When i am creating the project with the board, i am not able to find it in available devices.

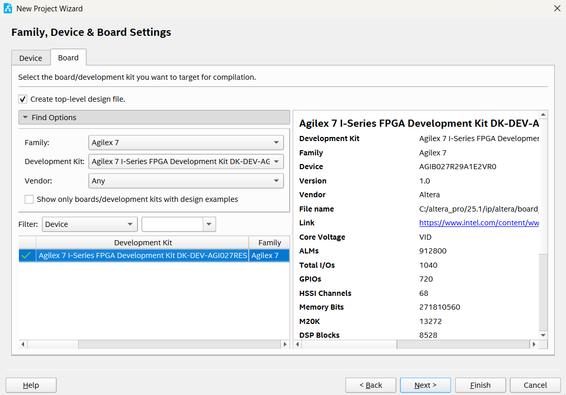

I searched the name of the device from the Board Sub Menu.

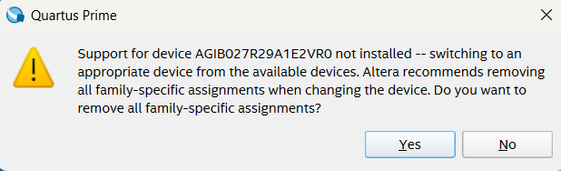

Once i selected the above setting and when i was trying to create the project, i was getting this below error.

I tried to reinstall the Common Files for Agilex 7 Devices using Device Installer by uninstalling the old or prev devices. Even then also, i am unable to use the device. I am getting the same above error .

I want to work on Dynamic Reconfiguration on the AGIB027R29A1E2VR0, but even the device is not detecting.

Hoping for a faster response.

Hdl
Simulation

6 Replies

  • Ash_R_Intel's avatar
    Ash_R_Intel
    Icon for Regular Contributor rankRegular Contributor
    8 months ago

    Hi,

    The device is an engineering sample part supported only till Quartus 23.2. In order to use the device you will have to migrate to that version.


    Regards


    • Bharadwaja's avatar
      Bharadwaja
      Icon for New Contributor rankNew Contributor
      8 months ago

      Thanks for your reply, @Ash_R_Intel.

      I've begun installing Quartus Version 23.2.

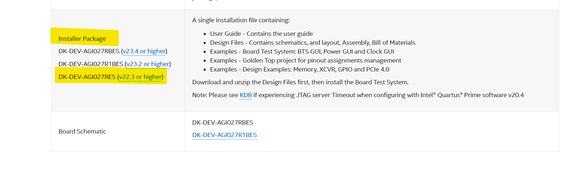

      I found the following page in the Google Web Archive:

      Could you please provide the link to the installer package for this board?

      Having the installer will be very helpful for testing with the Board Test System (BTS) and for progressing with the schematics.

      Thanking you again for the response and hoping for a faster response again.

  • Ash_R_Intel's avatar
    Ash_R_Intel
    Icon for Regular Contributor rankRegular Contributor
    8 months ago

    Hi,

    This dev kit with the engineering sample part has reached end of life, hence the installer is no longer available.

    You can still use the user guide for reference available on the website.

    We recommend customers to move to the production samples.

    For BTS, I will have to check with internal team, if we still have a copy of it, but cannot assure you on that.


    Regards


    • Bharadwaja's avatar
      Bharadwaja
      Icon for New Contributor rankNew Contributor
      8 months ago

      Hi @Ash_R_Intel,

      Thanks for the reply.
      I accept the fact that it was an engineering sample, but to work with the user guide, I at least require the schematics for generating the QSF file.

      As per my knowledge, the QSF file of AGIB027R29A1E2VR3 may not be sufficient to run a code on AGIB027R29A1E2VR0, I guess.


      Please do help me with the QSF file or schematics and also Board Test System Files (BTS).

      Thanking you in advance.

  • Ash_R_Intel's avatar
    Ash_R_Intel
    Icon for Regular Contributor rankRegular Contributor
    7 months ago

    There is a limit of 23MB for the attachment. Can't attach the files here. Will send you a mail.
