Agilex 5 – Critical HSSI Error in JESD204B Example Design

Hi,
I am bringing up the JESD204B interface on the dev kit.

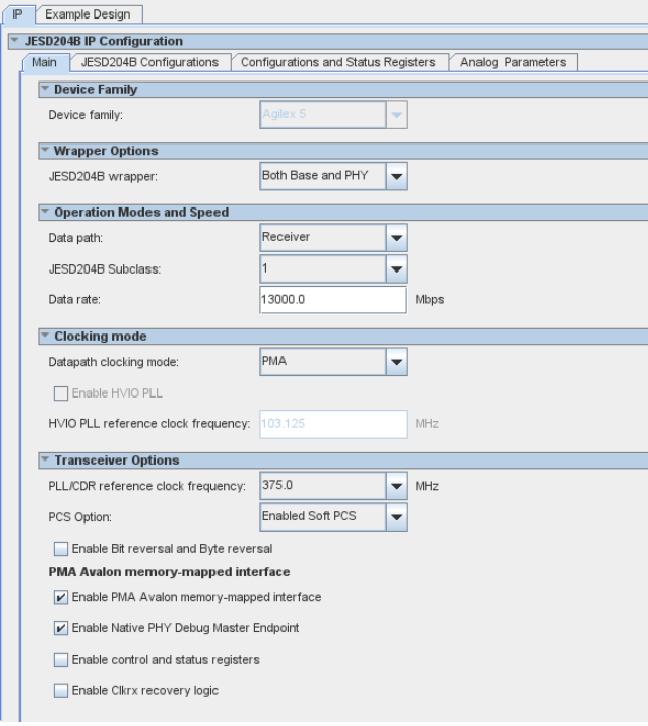

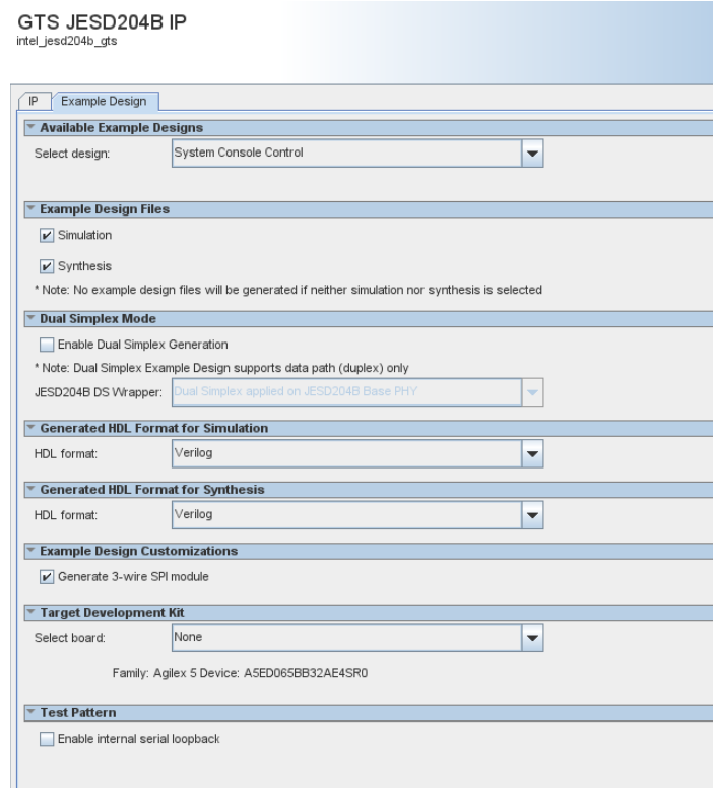

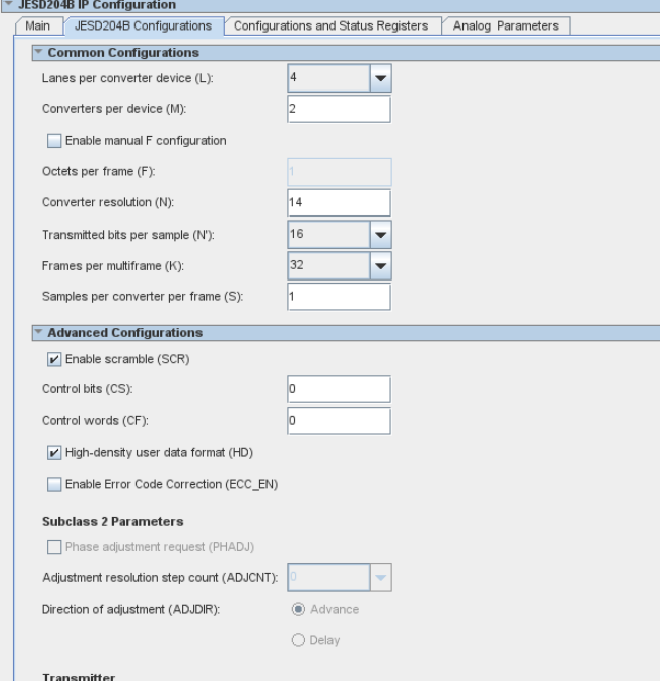

For this, I used the "Generate Example Design" option with the following parameters:

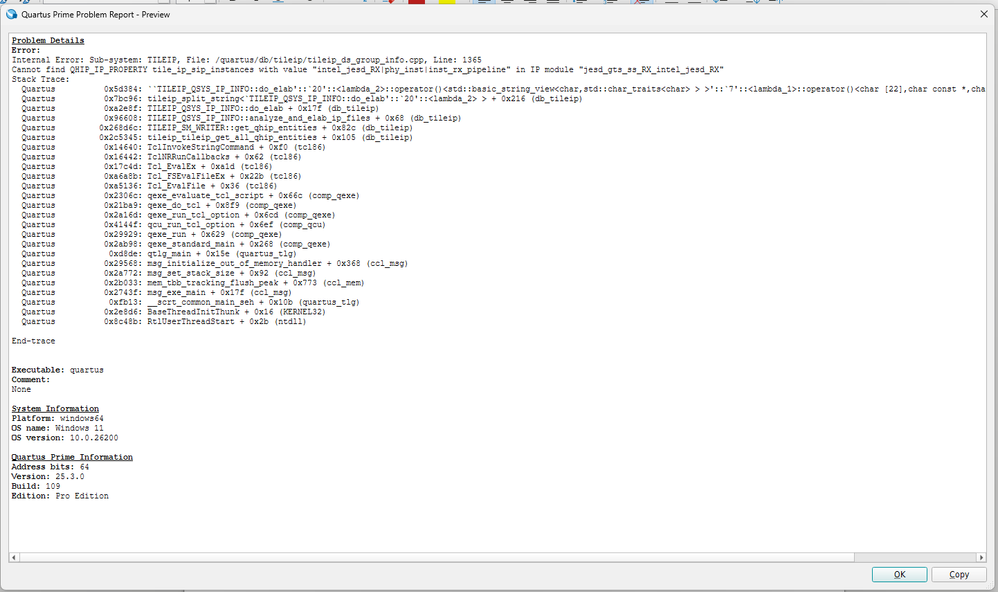

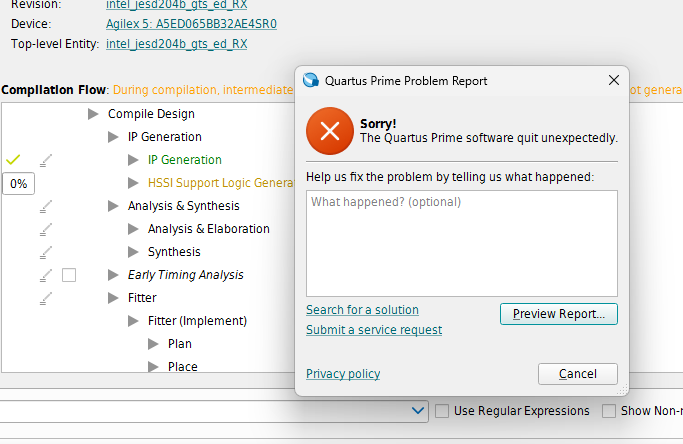

When I generate the project and start synthesis, it reaches the "HSSI Support Logic Generation" stage, and Quartus reports the following critical error:

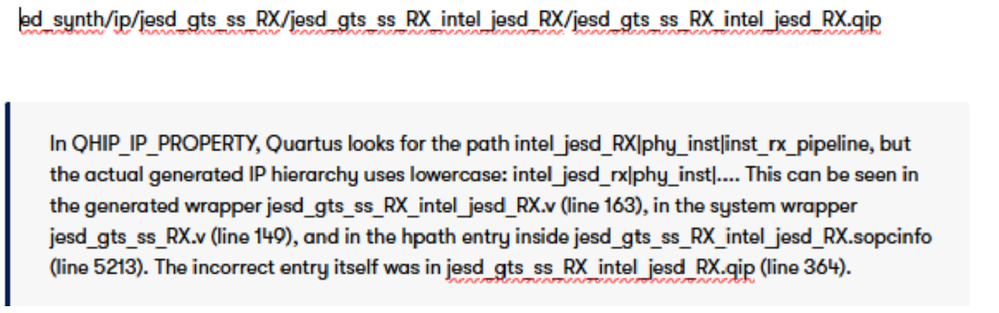

It turns out that the generated file
contains an inconsistency in the generated HSSI metadata.

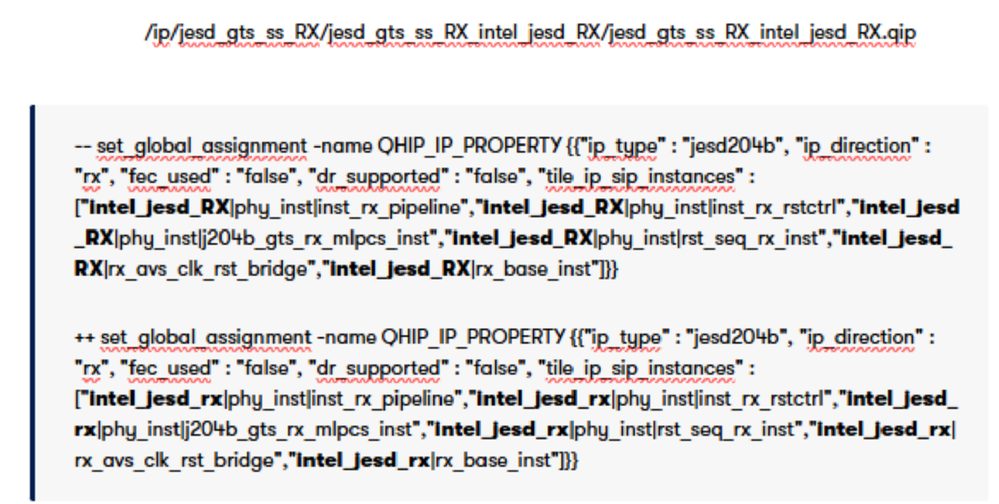

My fix was to replace the entry in:



The problem is that after updating the Qsys file, it gets changed back to intel_jesd_RX, and HSSI reports the critical error again.
If there is already a fix or workaround for this issue, please let me know.

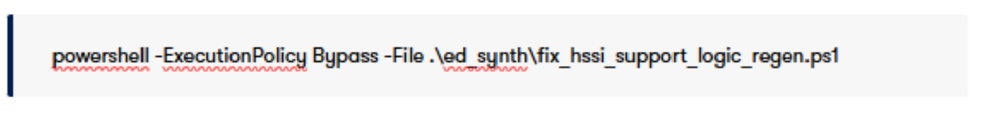

For now, I added a simple script that I run from PowerShell:


that replaces this value with the correct one:
