VVP Protocol Converter Not work

Hi JLee25 ,

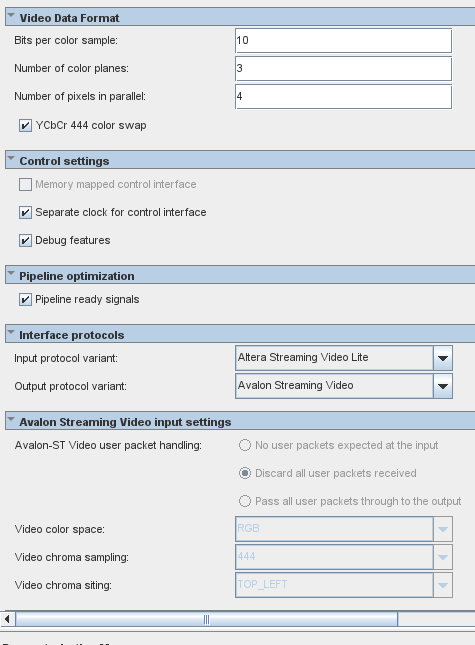

From your screenshots, the selected conversion direction looks correct for Altera Streaming Video Lite to Avalon Streaming Video, and your software is writing width, height, interlace, color settings, and the start bit.

The biggest thing that stands out is that the GUI screenshot shows Memory mapped control interface not enabled, while your software is writing Protocol Converter registers through the base address. In the user guide Document: Video and Vision Processing Suite IP User Guide (UG-20344 | 2026.03.03) Section: 7.5 Protocol Converter IP Registers , access to the register map requires the Avalon memory-mapped control interface to be turned on. If the screenshot matches the actual compiled instance, that is the first thing I would check.

Also, for the Lite-to-Avalon direction, the converter needs CPU-side frame information because AXI4-Stream video does not carry the geometry metadata needed on that side. The documented registers for Lite input are width, height, and interlace, which is consistent with what you are trying to program.

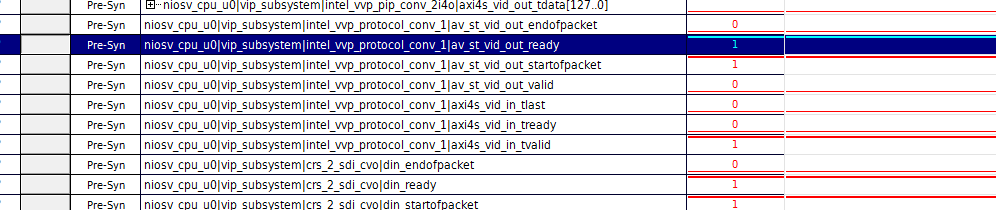

From the waveform, av_st_vid_out_ready is high and axi4s_vid_in_tvalid is high, but av_st_vid_out_valid remains low and axi4s_vid_in_tready remains low. That suggests the downstream side is ready, but the converter itself is not accepting the incoming stream yet.

I would suggest checking the following:

• Confirm the compiled IP really has the Avalon-MM control interface enabled. If not, the register writes may not actually control the core.
• Read back the status/debug registers and confirm the core reports running, has received a field, and whether the last field was marked broken.
• Verify the programmed frame info exactly matches the incoming stream: 3840 x 2160 and the correct interlace value.
• Verify the color-format settings. Your GUI shows YCbCr 4:4:4 color swap enabled, and the guide notes that the converter may swap Y and Cr planes for YCbCr 4:4:4 depending on the selected color-space/chroma settings. If your actual source is RGB or a different YCbCr format, the settings may not match the stream.
• Check that the AXI4-S Lite source is producing correct frame-boundary signaling consistently, since the converter should not keep tready low once configuration and format are valid.

My first suspicion is the control-interface setting mismatch between the GUI and the software access path.

My second suspicion is a stream-format mismatch, especially around the YCbCr 4:4:4 swap and color-format assumptions.

So in short, this does not look like downstream backpressure. It looks more like the converter is not becoming operational because either the control interface is not really enabled in the compiled IP, or the programmed input format does not match the actual AXI4-S Lite video.

I would strongly suggest you to try out our example design if you haven't, it will give you some tips where to start on.

Regards,

Wincent_Altera

Hi Wincent_Altera​ ,

  I checked the point you mentioned about the missing MM control interface on GUI using the "UDX 3D LUT" example.

  And quite confirmed that this is what you will see on the platform designer.

Below is the capture of the UDX design

And I am quite sure that I can access the settings even the MM interface is not enabled...

And I expect to see the TREADY signal after IP core reset and write proper configuration values per VVP UG chap 3.

But I don't know this is not happened for components like frame buffer, 1D LUT...

Regards,

Hi Wincent_Altera​ ,

  Would you help by finding any example on the lite mode configuration?

I followed the example below but not work.

Here's the example from UDX,

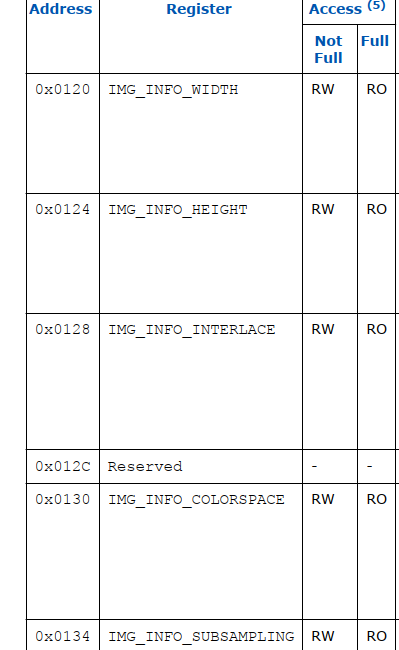

But the "vvpBpsCode" is not mentioned in the VVP UG..

Thank you.

Hi Wincent_Altera​ ,

  I did a simple VVP test with Lite Mode with Pixel in Parallel Converter..

Here's the pipeline, CVI (Avalon Streaming Bus, VIP) -> Protocol Converter (Avalon Streaming -> Altera Lite, VVP) -> Pixel in Parallel Converter (Quad to Dual pixels, YCC 422) -> Pixel in Parallel Converter (Dual to Quad pixels, YCC 422) -> Protocol Converter (Altera Lite to Avalon) -> CVO.

  I also did update the register values of protocol converter and readback, confirm the core status.

Width is 3840 and SubSample is 2

From the STP I fund this core is not output any data even the sink is "Ready" and source is putting data.

  Do you have any suggestions?

 The IP version is "18060001" .

Thank you.

Hi Wincent_Altera​ ,

  I just revised the design and use Altera Stream Full instead of Lite mode.

In this case, no need to provide any parameters to IP core.

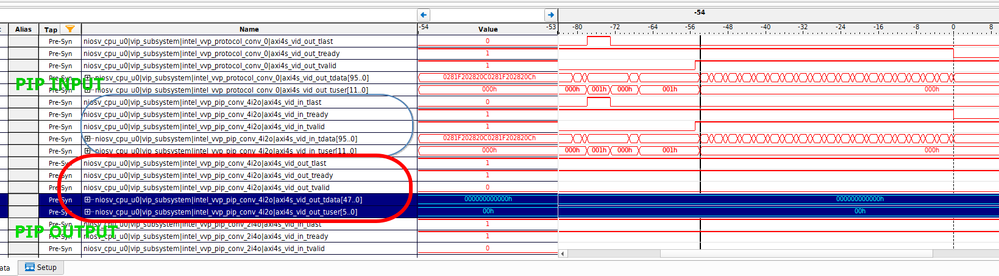

Unfortunately the Pixels in Parallel converter is not output any data even it received data.

Here's the test, CVI -> Protocol Convert (Avalon to Altera Full) -> PIP (4 pixels to 2 pixels) -> PIP (2 pixels to 4 pixels) -> Protocol Convert ( Altera to Avalon) -> CVI.

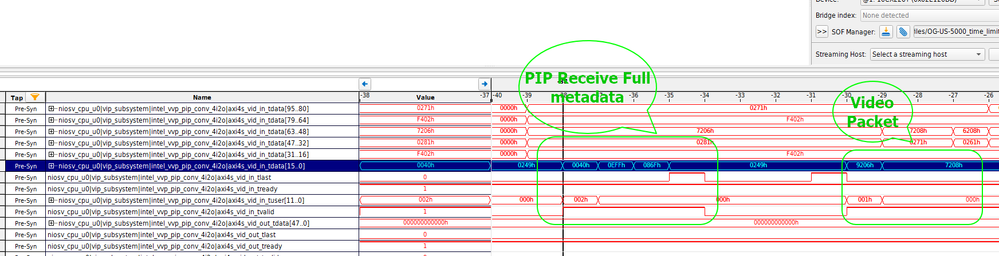

Here's the PIP RX data,

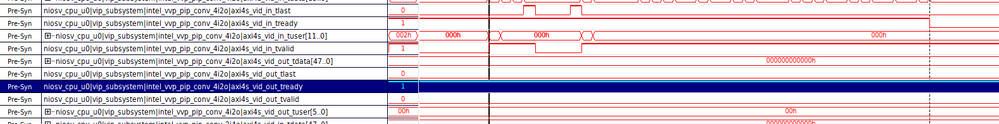

As noticed the PIP output Tready is always high but the core is not output any data.

Any comments?

Hi Wincent_Altera​ ,

 Conversion between 4->2 and 4->2 should be work, I am not seeing any complaints from Platform Designer.

And Quartus generates the design successfully.

I switch the mode from Lite to Full, the situation remained the same.

Neither is running.

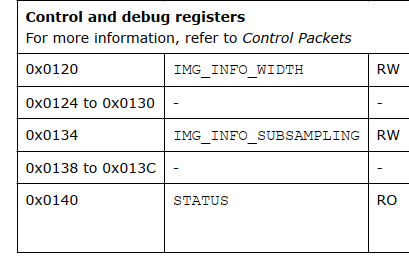

Do you know where is a UG mentioned about how to program the Lite mode?

As I found from the LUT reference, I suppose only video data is needed.

How about the register address "75" for vvpBpsCode ?

Thank you.

Hi Wincent_Altera​ ,

  I instantiate a VVP Chroma ReSampler by converter YCC 422 to 444.

For unknown reason, the CRS did not set the Tready even after updating the registers.

And I did not see the Tready raised high after reset.

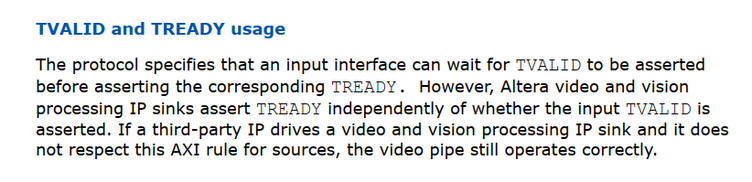

This behavior is not as mentioned in UG page 21..

Any suggestion for me to check.

Thank you.
