Regarding the TX settings of MIPI CSI2 IP | Altera Community

14 Replies

Wincent_Altera
Regular Contributor
1 month ago
Hi ,

Based on what you describe, Your MIPI CSI-2 TX's ready will stay low unless the core and PHY are fully initialized, out of reset, and properly configured. Please try to check resets, clocks, core/PHY ready signals, and configuration.

The most common issue is the DPHY not being ready or the core not being enabled.
I would suggest to try generate the design example by default and try it again.
There is ready MIPI design example available, perhaps you can try out that https://github.com/altera-fpga/agilex-ed-camera-ai

Regards,
Wincent
- STATEABC
  New Contributor
  1 month ago
  Hi ,
  After modification, CSI2 TX's axi stream tready signal ability is high, TPG->CSI2 TX's number is normal.
  However, this is also a new problem that has appeared, CSI2 T2X IP good image has been lost, but the reason is that the reason is that the signal tap is taken and the waveform is shown.
  Is there any other construction?
  Thx.
  - Wincent_Altera
    Regular Contributor
    1 month ago
    Hi,

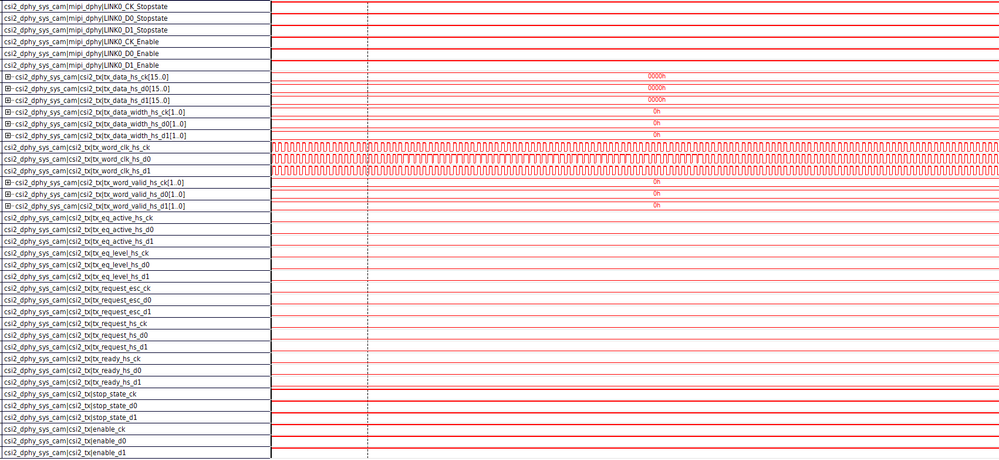

    From your description and the SignalTap capture:

    AXI-Stream tready toward CSI-2 TX is now asserted “high ability” (i.e., backpressure looks cleared and TPG→CSI2 TX throughput is normal).

    Despite that, the CSI-2 TX IP no longer outputs a “good image.”

    The waveform shows HS word clocks toggling, but most of the CSI-2 TX control/status signals (e.g., word-valid, hs requests, lane enables) appear stuck low, and stop-state lines look static. That suggests the CSI-2 TX isn’t entering HS transmission, or packetization isn’t being triggered.

    Below are checks that typically isolate CSI-2 TX “no output” behaviors after AXI-side changes.

    There is few things I suggest to check

    First and the fastest way is to compare with the example design that I provided earlier.

    Else you may check the AXI-Stream side - ensure that it is match AXI input width to CSI-2 TX configured data width and pixel format.

    CSI-2 packetizer - Set correct data type (RAW/YUV/RGB) and virtual channel and heck status registers for underrun/overflow and frame/line detected.

    Resets/clocks - ensure the CDC/FIFO widths and enables correct.

    Regards,

    Wincent_Altera
STATEABC
New Contributor
1 month ago
Hello,
Thank you very much for your suggestion.
I generated a project based on https://github.com/altera-fpga/agilex-ed-camera-ai?tab=readme-ov-file and compared it. Unfortunately, I found that the project you provided only has examples for MIPI RX and DPHY RX, and not the MIPI CSIX TX related parts. However, I can confirm that my MIPI RX part can work because my other project can output images via CAMERA->MIPI DPHY-MIPI CSI2 RX->HDMI.

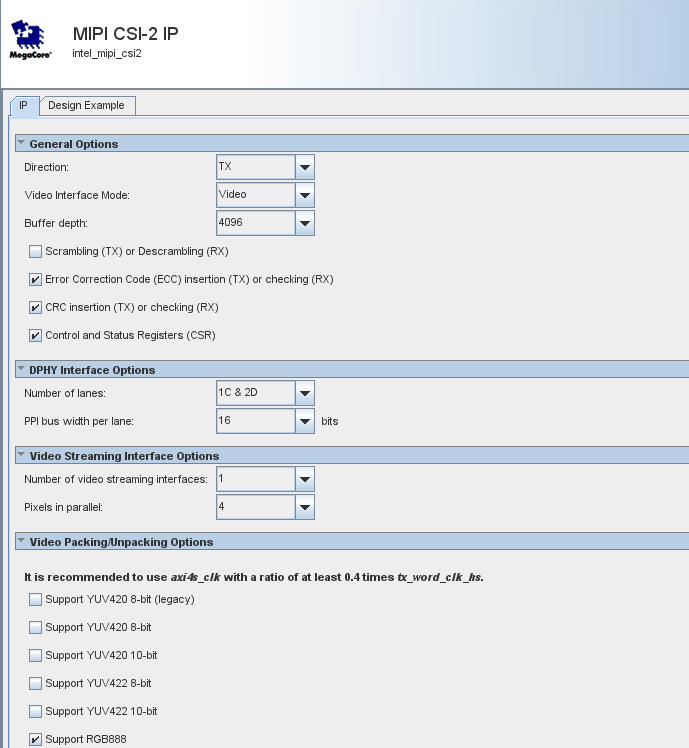

Furthermore, I checked AXI-Stream, and the AXI input width and CSI-2 TX configuration data width are both 24 bits, with data type RGB888. (The previous CSI2 configuration screenshot shows that Pixels in parallel was changed from 4 to 1.)
Below is my mipi.qsys

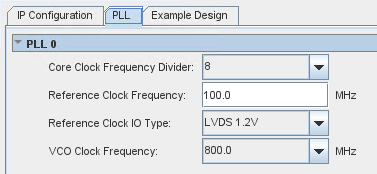

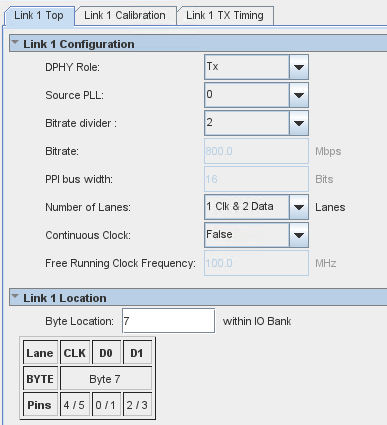

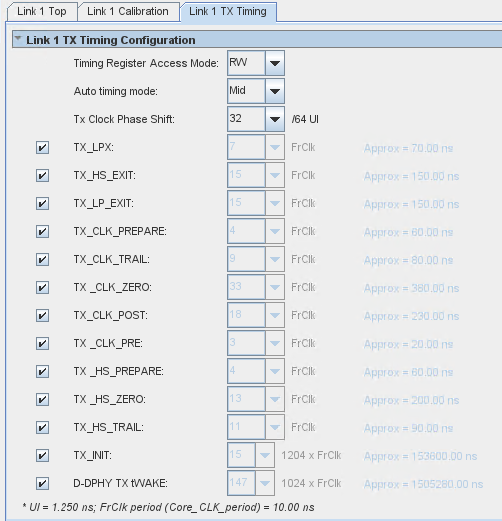

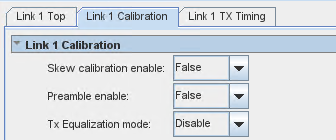

The MIPI DPHY settings are shown in the image.
Are there any other relevant suggestions or reference examples? Any help is appreciated.
