How to divide a clock by two without using a PLL?

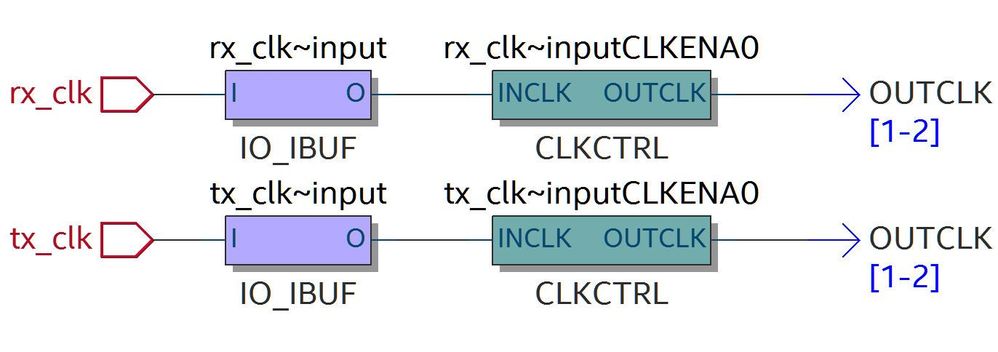

I'm using the Altera Tri-Mode EMAC for 10/100 Ethernet with MII interface to the Phy. This uses 25 MHz tx_clk and rx_clk generated by the Phy and going to the EMAC. These clocks do NOT use dedicated clock inputs. The EMAC puts them on clock nets using ALTCLKCTRL as follows:
I want to use a Phy with an RMII interface which has a single 50 MHz clock from the Phy. I have an RMII to MII bridge which generates tx_clk and rx_clk. I can of course use a PLL, but that requires a dedicated clock input and I'm short on pins.
So I'm looking for another way. On Xlinx, I can use a BUFR which allows dividing. So far on Altera, the only solution of come up with is to use an ALTCLKCTRL fed by a registers:
-----------------------------------------------------------------------------
-- Divide the RMII clock by two
-----------------------------------------------------------------------------
mii_clk_proc : process
begin
wait until rising_edge(rmii_clk); -- 50 MHz clock from Phy
clk_div2 <= not clk_div2; -- 25 MHz "clock"
end process;
-- Drive ALTCLKCTRL to put clk_div2 on globacl clock
rmii_clk_ctrl : component phy_clk_ctrl
port map (
inclk => clk_div2,
outclk => mii_clk -- drives both tx_clk and rx_clk
);But this seems like a really bad way to do this. Any suggestions?
Another problem is that whether I use a PLL or the above, the EMAC is still using two ALTCLKCTRL as above. These really should not be needed.
