VHDL multiple asynchronous signal handling

Hi everyone,

to realize an asynchronous project,

I would need to manage different signals and understand when they change state, both from 0 to 1 and from 1 to 0.

The change from these signals should change an output signal,

which drives another section of the circuit.

For this, I use:

process(signal_1)
begin
if something then
 signal_out <= '0';
end if;
end;

process(signal_2)
begin
if something then
 signal_out <= '1';
end if;
end;

In this case, I obtain an error:

Error (10028): Can't resolve multiple constant drivers for net "signal_out" .

For this reasons I try to insert all signals in one process, in this manner:

process(signal_1, signal_2)
begin
if rising_edge(signal_1) or falling_edge(signal_1) then
if something then
 signal_out <= '0';
end if;
end if;

if rising_edge(signal_2) or falling_edge(signal_2) then
if something then
 signal_out <= '1';
end if;
end if;


end;


But, in this case, I have the error:

Error (10628): […] can't implement register for two clock edges combined with a binary operator.

What is the correct way to get what I want?

7 Replies

  • Abe's avatar
    Abe
    Icon for Frequent Contributor rankFrequent Contributor

    Well, these are typically beginner mistakes in VHDL coding.

    1. A signal/variable cannot be updated in two different Processes.
    2. A signal/register/variable cannot be assigned values at both clock edges of two different clock signals.

    process (signal_1, signal_2) begin
      if(signal_1) then
          signal_out <= 0;
      else
          signal_out <= 1;
      end if
    end process;

    In the above code, there's an issue... signal_out gets assigned 0 when signal_1 =1 and irrespective of signal_2. Same goes for the else condition. To avoid, this we have to specify all logically exclusive conditions in the if-else loop.

    process (signal_1, signal_2) begin
      if(signal_1 == '1' and signal_2 = '0') then
          signal_out <= 0;
      else if (signal_1 == '0' and signal_2 == '1') then   --left out conditions are sig_1 = sig_2 == 1 , sig_1 = sig_2 == 0.
          signal_out <= 1;
      end if
    end process;

    Normally, you assign signals on the rising edge or falling edge of a periodic signal like a clock and have the other signal in the sensitivity list of the process as the reset so that the Flops in the design can be reset to a known state on Power ON.

    process( clock, reset) begin
      if(reset == '0') then
          signal_out <= '0';
      else if (rising_edge/falling_edge clock) then
         signal_out <= '1'
      end if
    end process

    This will make sure that the code infers flip-flops and not larches or other combinational logic that is unwanted (unless or course you are designing combinational circuits, in which case you would code it in a different way.)

    • CLa_R's avatar
      CLa_R
      Icon for Occasional Contributor rankOccasional Contributor

      Thank you for your answer.

      What I try to do is change signal_out when signal_1 or signal_2 change their state.

      It is assumed that signal_1 and signal_2 CANNOT change at the same time.

      In the first case, if signal_1 changes, then signal_out must be set to 0. In any case, both that signal_1 goes from 0 to 1, and that it passes from 1 to 0.

      It's an asynchronous design and I'm not using any clock.

      Can I do this with the code you showed me?

  • CLa_R's avatar
    CLa_R
    Icon for Occasional Contributor rankOccasional Contributor

    Can I use this code? It is correct?

    process (signal_1, signal_2)
    begin

    if signal_1 = '0' or signal_1 = '1' then
    signal_out <= '0'
    end if;

    if signal_2 = '0' or signal_2 = '1' then
    signal_out <= '1'
    end if;

    end;
  • Vicky1's avatar
    Vicky1
    Icon for Regular Contributor rankRegular Contributor

    Hi,

    if possible please provide the project file, that will help us to better support.

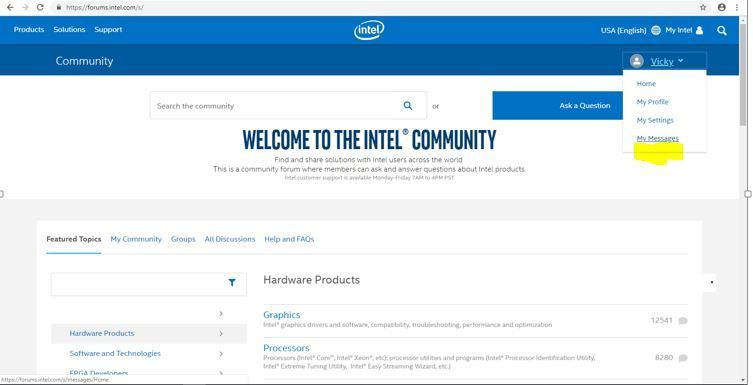

    if you don`t want to share it in community, you can use "My Messages" option to share with me.

    Regards,

    Vikas

    • CLa_R's avatar
      CLa_R
      Icon for Occasional Contributor rankOccasional Contributor

      The basic problem is that I would like to implement the 2-phase handshake protocol.

      For this reason, I need to understand when a signal changes state.

      Is it possible to capture an event that indicates that the signal has changed its logic level?

  • CLa_R's avatar
    CLa_R
    Icon for Occasional Contributor rankOccasional Contributor

    It is possible to make a edge detector in VHDL? I think that It can to resolve the problem.

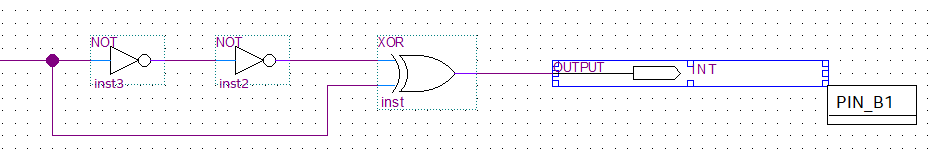

    The Edge detector is a circuit like this:

    Can I make it in VHDL?

    I try with:

    process (myInput)
    begin
    If  (not (not myInput))  xor myInput = '1' then
    --Edge detect!
    end if;
    end process;

    but this code do not compile/work (Error (10476): VHDL error at Control.vhd(90): type of identifier "MyInput" does not agree with its usage as "boolean" type)

  • Vicky1's avatar
    Vicky1
    Icon for Regular Contributor rankRegular Contributor

    Hi,

    Could you check with .vhd file generated from .bdf file?

    Open .bdf file( as designed in previous post) in Quartus & then,

    "File" Menu->"Create/Update"->"Create HDL design file from current file(VHDL",

    Regards,

    Vikas
