Hello,Can I program this kit's FPGA using a .sof file or do I need to first generate a .flash file? Please include instructions if a .sof file is sufficient. Thanks.

All FPGAs can be programmed with a .sof file via the JTAG interface, either JTAG directly or usually using JTAG to USB conversion (USB Blaster). You just use the standalone Programmer or the Programmer included with a full installation of Quartus.

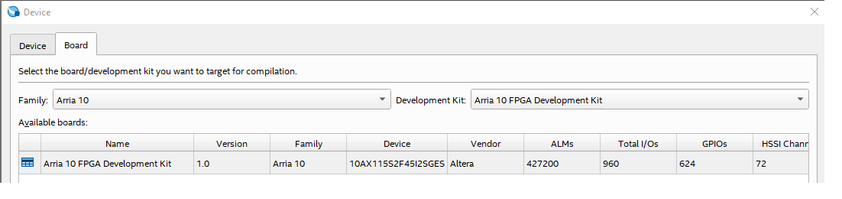

Thanks.I'm using the Arria 10 GX FPGA Development Kit (DK-DEV-10AX115S-A) and trying to configure its FPGA (10AX115S2F45I1SG) with a .sof file and a USB Blaster cable. I get this: Error (209015): Can't configure device. Expected JTAG ID code 0x02E660DD for device 1, but found JTAG ID code 0x020A30DD. Make sure the location of the target device on the circuit board matches the device's location in the device chain in the Chain Description File (.cdf).The FPGA listed on the device search of Quartus Prime Standard 23.1 gives the 10AX115S2F45I2SGES as being installed on the kit board:Which device part number should I be using, 10AX115S2F45I1SG or 10AX115S2F45I2SGES? What is the cause of the error? Thanks.

Did you auto select the device in the Programmer or manually select it? Try manually selecting the device.And show a screenshot of what the Programmer is showing you.

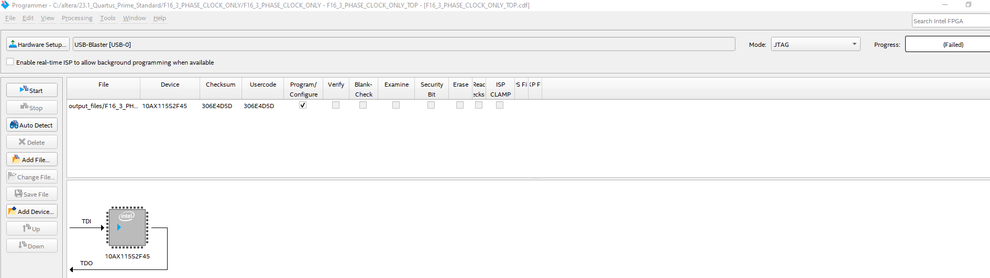

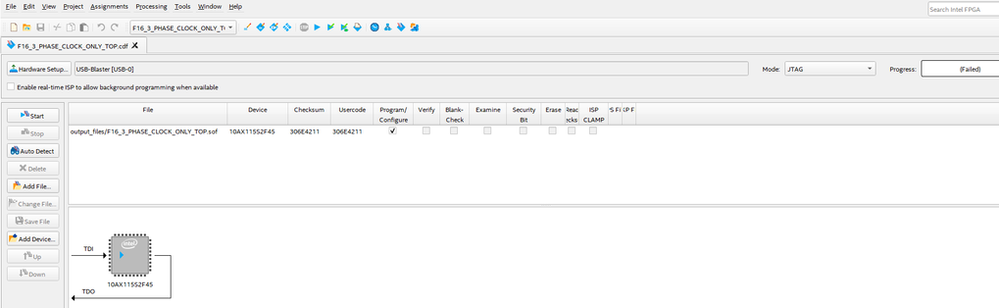

I've selected both devices (different compilations) and selected the devices manually in the Programmer. Programming fails with either compiled .sof file.Here's the programmer and error message with 10AX115S2F45I2SG selected:Error (209015): Can't configure device. Expected JTAG ID code 0x02E660DD for device 1, but found JTAG ID code 0x020A30DD. Make sure the location of the target device on the circuit board matches the device's location in the device chain in the Chain Description File (.cdf).Here's the programmer and error message with 10AX115S2F45I1SG selected:Error (209015): Can't configure device. Expected JTAG ID code 0x02E660DD for device 1, but found JTAG ID code 0x020A30DD. Make sure the location of the target device on the circuit board matches the device's location in the device chain in the Chain Description File (.cdf).Any ideas? Thanks.

Hi,The part number should be 10AX115S2F45I1SG.https://www.intel.com/content/www/us/en/products/details/fpga/development-kits/arria/10-gx.htmlDo you used .sof file for 10AX115S2F45I1SG?When you click auto detect, what is showing? Kindly provide screenshot.Can you also try the JTAG chain debugger and provide screenshot here?Does this ever work before?Have you followed the userguide for the dev kit?Regards,Aiman

Programming the Arria 10 GX FPGA Development Kit

28 Replies

hemanthkaja
New Contributor
2 years ago
From my experience, you should auto detect, it should be able to detect both Max and Arria 10. This is some how necessary for the Programmer to know the chain of FPGAs. Then you should select the sof file for that particular FPGA and program it.
NurAiman_M_Intel
Super Contributor
2 years ago
Hi,

As the required information has been provided for RMA, I will proceed to close this case for now.

Please login to ‘ https://supporttickets.intel.com’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.

Regards,
Aiman
NurAiman_M_Intel
Super Contributor
2 years ago
Hi Chris,

Please contact your local authorized distributor and forward them below information for RMA:

OPN: DK-DEV-10AX115S-A
Serial No: 10APCIE0004698
IPS: 00908470

Distributor: https://www.intel.com/content/www/us/en/partner/showcase/partner-directory/distributor.html#sort=relevancy

Regards,
Aiman
NurAiman_M_Intel
Super Contributor
2 years ago
Hi Chris,

I have submitted a RMA request. It is now in the reviewing and approval process.

Regards,
Aiman
NurAiman_M_Intel
Super Contributor
2 years ago
Hi Chris,

(DK-DEV-10AX115S-A) is still in warranty. I am in the process of applying for RMA.
Will update you soon.

Regards,
Aiman
NurAiman_M_Intel
Super Contributor
2 years ago
Hi,

I am checking for the board warranty for now.

For IPS access, sorry to let you know that your company is no longer eligible for IPS access. You are always welcome to get support from FPGA Forum or to reach out to your support FAE.

Regards,
Aiman
NurAiman_M_Intel
Super Contributor
2 years ago
Hi,

Thanks for taking the call.

Per our conversation through the call:

-You will provide board serial number
-You will provide the top marking
-I will check your access for the IPS.

Regards,
Aiman
- BigSid
  Occasional Contributor
  2 years ago
  Hi Aiman,
  Thanks for the call. Here is the board:
  How soon could I get a replacement board? Any progress with restoring the IPS access?
  Thanks.
NurAiman_M_Intel
Super Contributor
2 years ago
Hi,

I have sent the meeting invite.

Regards,
Aiman
- BigSid
  Occasional Contributor
  2 years ago
  Hi Aiman,
  Thanks. I'll be on the call.
NurAiman_M_Intel
Super Contributor
2 years ago
Hi,

May I know where you are from? We can set up a call to look at this case.

Me and my team are based in Malaysia.

Regards,
Aiman
- BigSid
  Occasional Contributor
  2 years ago
  Hi,
  I am in Massachusetts, USA.
  Thanks.
  - BigSid
    Occasional Contributor
    2 years ago
    Hi Aiman,
    Any progress with setting up a call?
    Thanks.
sstrell
Super Contributor
2 years ago
Just for shiggles, how about flipping SW4-1 and SW4-2 to their opposite positions and see if there's a change in the JTAG chain?
- BigSid
  Occasional Contributor
  2 years ago
  Tried it. Programming still fails and same error message.
  - sstrell
    Super Contributor
    2 years ago
    But does the JTAG chain appear differently in either the Programmer or the JTAG Chain Debugger?
