Problems using a Dual access on-chip memory module (QSYS)

Hello,

I have a QSYS system using a Nios II/e processor along with some vhdl modules which should be able to display pixels on a LCD display using a VGA controller. I have already managed to get the Nios II code working as well as the VGA interface.

I now seek to access the memory set by the Nios II code in VHDL to retrieve the pixel data and pass them onto the VGA interface, this should be possible with the dual access memory module in QSYS.

This is the toplevel VHDL code:

LIBRARY ieee;
USE ieee.std_logic_1164.all;
use ieee.numeric_std.all;

ENTITY niosdisplay IS
	PORT(
		clk			:  IN  	STD_LOGIC;
		key			:  IN 	STD_LOGIC;
		pixel_clk   :  OUT   STD_LOGIC;
		red			:	OUT	STD_LOGIC_VECTOR(7 DOWNTO 0) := (OTHERS => '1');  --red magnitude output to DAC
		green			:	OUT	STD_LOGIC_VECTOR(7 DOWNTO 0) := (OTHERS => '1');  --green magnitude output to DAC
		blue			:	OUT	STD_LOGIC_VECTOR(7 DOWNTO 0) := (OTHERS => '1'); --blue magnitude output to DAC
		btn			:	IN	STD_LOGIC_VECTOR(3 DOWNTO 0) := (OTHERS => '0'); --btn pio
		h_sync    	: OUT  STD_LOGIC;
		v_sync    	: OUT  STD_LOGIC;
		n_blank     : OUT  STD_LOGIC;
		n_sync  	  	: OUT  STD_LOGIC
		);
END niosdisplay;

ARCHITECTURE behavior OF niosdisplay IS
COMPONENT vga_controller IS
  PORT(
    pixel_clk : IN   STD_LOGIC;  --pixel clock at frequency of VGA mode being used
    reset_n   : IN   STD_LOGIC;  --active low asycnchronous reset
    h_sync    : OUT  STD_LOGIC;  --horiztonal sync pulse
    v_sync    : OUT  STD_LOGIC;  --vertical sync pulse
    disp_ena  : OUT  STD_LOGIC;  --display enable ('1' = display time, '0' = blanking time)
    column    : OUT  INTEGER;    --horizontal pixel coordinate
    row       : OUT  INTEGER;    --vertical pixel coordinate
    n_blank   : OUT  STD_LOGIC;  --direct blacking output to DAC
    n_sync    : OUT  STD_LOGIC --sync-on-green output to DAC
	 );
END COMPONENT vga_controller;
COMPONENT altpll0 IS
	PORT
	(
		areset		: IN STD_LOGIC  := '0';
		inclk0		: IN STD_LOGIC  := '0';
		c0				: OUT STD_LOGIC
	);
END COMPONENT altpll0;

COMPONENT system is
	port (
		btn_pio_export       : in  std_logic_vector(3 downto 0)  := (others => '0'); --   btn_pio.export
		clk_clk              : in  std_logic                     := '0';             --       clk.clk
		frame_buf_address    : in  std_logic_vector(16 downto 0) := (others => '0'); -- frame_buf.address
		frame_buf_chipselect : in  std_logic                     := '0';             --          .chipselect
		frame_buf_clken      : in  std_logic                     := '0';             --          .clken
		frame_buf_write      : in  std_logic                     := '0';             --          .write
		frame_buf_readdata   : out std_logic_vector(31 downto 0);                    --          .readdata
		frame_buf_writedata  : in  std_logic_vector(31 downto 0) := (others => '0'); --          .writedata
		frame_buf_byteenable : in  std_logic_vector(3 downto 0)  := (others => '0'); --          .byteenable
		reset_reset_n        : in  std_logic                     := '0'              --     reset.reset_n
	);
END COMPONENT system;

--VGA Stuff
signal clk_138 : std_logic;
signal column : integer;
signal row : integer;
signal disp_ena : std_logic;

--Nios II Stuff
signal mem_data : std_logic_vector(31 downto 0) := (others => '0');
signal frame_buf_addr : natural range 0 to 65536 := 0;

BEGIN

	u0: altpll0 port map('0', clk, clk_138);
	u1: vga_controller port map(clk_138, '1', h_sync,v_sync, disp_ena, column, row, n_blank, n_sync);
	u2: system port map(btn_pio_export => btn,
							  clk_clk => clk_138,
							  reset_reset_n => '1',
							  frame_buf_address => std_logic_vector(to_unsigned(frame_buf_addr, 17)),
							  frame_buf_readdata => mem_data,
							  frame_buf_chipselect => '0'
							  );

	pixel_clk <= clk_138;

	draw_pixel : PROCESS(clk_138)

	variable count : natural range 0 to 4 := 0;

	BEGIN
	IF rising_edge(clk_138) then
		IF disp_ena = '1' then
			--IF((row > 256) and (row < 256+512) and (column > 320) and (column < 320+512)) THEN --Inside game screen
				case count is
					when 0 =>
						red <= mem_data(31 downto 24);
						blue <= mem_data(31 downto 24);
						green <= mem_data(31 downto 24);
						count := 1;
					when 1 =>
						red <= mem_data(23 downto 16);
						green <= mem_data(23 downto 16);
						blue <= mem_data(23 downto 16);
						count := 2;
					when 2 =>
						red <= mem_data(15 downto 8);
						green <= mem_data(15 downto 8);
						blue <= mem_data(15 downto 8);
						count := 3;
						if(frame_buf_addr = 65535) then
						frame_buf_addr <= 0;
						else
							frame_buf_addr <= frame_buf_addr + 1;
						end if;
					when 3 =>
						red <= mem_data(7 downto 0);
						green <= mem_data(7 downto 0);
						blue <= mem_data(7 downto 0);
						count := 0;
					when others =>
						red <= mem_data(31 downto 24);
						green <= mem_data(31 downto 24);
						blue <= mem_data(31 downto 24);
				end case;
			--ELSE --Gray color to boundary
				--red <= "11111001";
				--green <= "10101001";
				--blue <= "10101001";
			--END IF;
		ELSE
			red <= (OTHERS => '0');
			green <= (OTHERS => '0');
			blue <= (OTHERS => '0');
		END IF;
	END IF;
	END PROCESS;
END behavior;

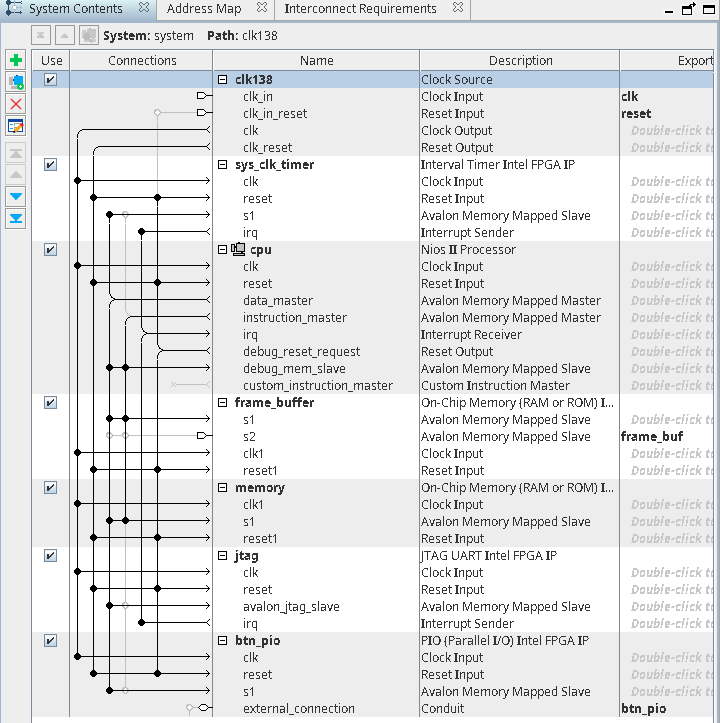

This is the Qsys system:

The code increments the address every 4 accesses so it sets a single byte every 4 clock cycles. But for some reason the readdata port of the memory module is not changed whenever the address changes. It seems to be stuck at address 0, this results in the screen having the same 4 pixel pattern throughout the screen.

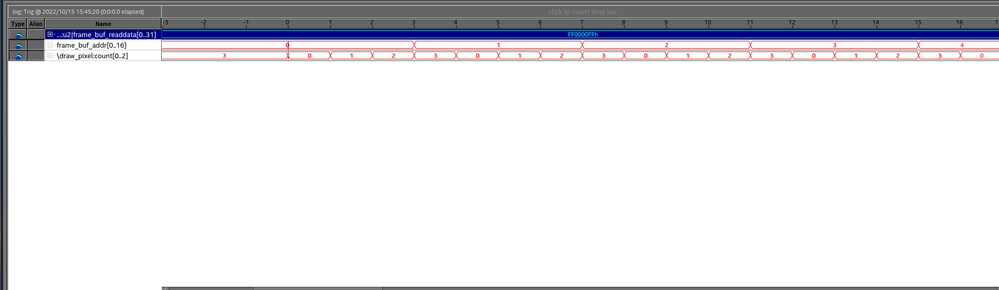

Here is a screenshot of a signal tap I did:

As is visible in the picture, the frame_buffer_readdata does not change its data to the corresponding frame_buf_addr. I have tried playing with the byteenable and chipselect signals but nothing seems to work getting the module to respond to the address change.

Does anyone have any idea what is wrong or what I am missing here?

Thanks,

Mart
