Error:Connected system timestamp not found on target at expected base address.

Hi,

I'm fairly new to FPGA programming, please bear with me.

I tried to use Nios II and Quartus II 10.1 on Windows 7(64 bit) to programme a Altera DE2-70 board.

I basically followed these procedures:

1) Generate the SOPC which includes the Jtag Uart

2) add all files into the quartus II project and compile

3) Programme the board

4) Create a project including the application and bsp

5) Build the project

6) Run the project as Nios II hardware

Then it gives me the error:connected system id hash not found on target at expected base address

I tried to follow the posts from the forum and ignored the mismatch in Systemid and System timestamp. Then it gives me: downloading elf process failed.

If I click System ID Properties I get:

Expected system ID base address: 0x0 (as in SOPC)

Expected system ID:0x0

connected system id: not found

Expected system timestamp:1343399230 (as in SOPC)

connected system timestamp: not found

May I know what are the possible issues?

Any suggestions would be much appreciated .

12 Replies

  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    13 years ago

    You shouldn't ignore the mismatch in system id and timestamp. If there is a mismatch, it means there is a problem with the hardware configuration. Are you sure the project compiled correctly and that there were no errors when configuring the FPGA? Are you sure you selected the correct .sof file when programming the FPGA? If you use cores you don't have the license for, then the generated .sof file will have a _time_limited suffix, so be sure you select the right one.

  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    13 years ago

    Hi Daixiwen:

    Thank you for your reply. I am pretty sure that I have compored and configured the FPGA and used the _time_limited sof file.

    When I use the Nios2 command shell: nios2-terminal

    it shows:

    nios2-terminal:connected to hardware target using JTAG UART on cable

    nios2-terminal:"USB Blaster [USB]", device 1, instance 0

    nios2-terminal:<Use the IDE stop button or Ctrl+C to terminate>

    I guess the device is correctly connected and should be able to download the hardware program.

    But it still gives me the error about system id and timestamp mismatch.

    Is there any other possible bugs that could result in such error?

    Thank you!

    Jia Yang
  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    13 years ago

    Yes it looks like there is something in the FPGA that is working, at least. Be sure you don't close the opencores evaluation window as it will make the CPU stop and won't let you read the system ID.

    You can try and open System Console and use it to read directly the two registers from the System ID component and check what you get back. You can start with
    set mast  0]
open_service master $mast
    and then
    master_read_32 $mast 0 1
    should give you the ID and
    master_read_32 $mast 4 1
    should give you the timestamp.

    Are you sure the Timestamp ID component is connected to the Nios CPU's data master? Is it on a different clock domain? If yes is this clock running?
  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    13 years ago

    Hi Daixiwen:

    I tried your suggestion. It gives me some new clues which I regretfully do not know how to understand.

    First I tried to implement the instructions in the system console and here is the result

    % set mast [lindex [get_service_paths master] 0]

    /connections/USB-Blaster on localhost [USB-0]/EP2C70@1/[MFG:70 ID:34 INST:0 VER:3]/nios2_0

    % open_service master $mast

    % master_read_32 $mast 0 1

    error: java.lang.RuntimeException: com.altera.systemconsole.internal.plugin.jtag.oci.Nios2DebugException: Can't do this while target is running

    while executing

    "master_read_32 $mast 0 1"

    % master_read_32 $mast 4 1

    error: java.lang.RuntimeException: com.altera.systemconsole.internal.plugin.jtag.oci.Nios2DebugException: Can't do this while target is running

    while executing

    "master_read_32 $mast 4 1"

    But I have closed the SOPC and the programmer, I am very new and I really do not understand why it is running.

    Then I tried to look at the SOPC but I did not find the timestamp connection.

    I have attached my Printout of the SOPC file

    Thank you very much for your time and attention.
  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    13 years ago

    The Nios II processor is normally running unless it has been paused by the debugger (or by SystemConsole)

    You can use [processor_stop $mast] to stop the processor, and [processor_start $mast] to restart it
  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    13 years ago

    thank you for your suggestion

    I tried your command and it gives me the following error

    % [processor_stop $mast]

    error: java.lang.RuntimeException: com.altera.systemconsole.internal.plugin.jtag.oci.Nios2DebugException: Target is broken and needs to be reset

    while executing

    "processor_stop $mast"

    invoked from within

    "[processor_stop $mast]

    I guess the problem might come from reset which is not set to high in my SOPC since the board I think is active low. But How may I set it high? Thank you.
  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    13 years ago

    the reset input on the SOPC component is active low. Check that you provide the correct polarity and that the signal is high when you try to access the processor.

    You can also try to reset the procesor with

    processor_reset $mast

    And I'm sorry for forgetting the line to stop the processor before you can read the system id.
  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    9 years ago

    I have the same problem.

    connected system id: not found

    Connected system timestamp: Not Found

    Use System Console ,it shows

    [/B][/B]com.altera.systemconsole.internal.plugin.jtag.oci.Nios2DebugException: Target is broken and needs to be reset

    while executing

    How can I fix it? Is the FPGA broken?
  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    9 years ago

    If I had such problems often the reason was a missed clock or active reset. Check if the clock for Nios is running and the reset is deasserted.

    Have you used the right .sopcinfo file in your Nios BSP project?
  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    9 years ago

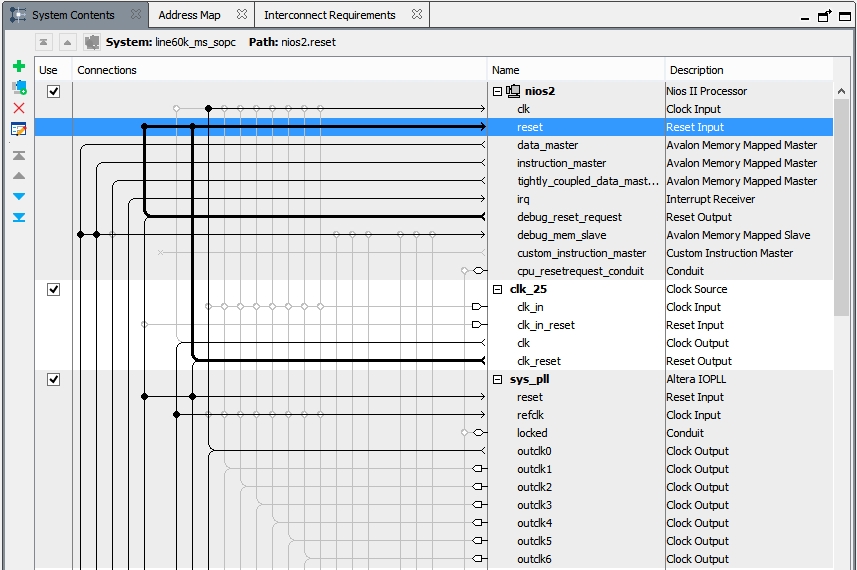

    In your SOPC the cpu reset_n input is not connected. I've attached a screenshot of a SOPC. May be this helps you.
