DDR4 HiLo in Stratix 10 MX

Hello there,

We recently acquired a new Stratix 10 MX devkit - 1SM21BHU2F53E1VG.

I am currently testing different interfaces of the device using the Board Test System (BTS) that is provided by Intel's Stratix 10 MX FPGA Installer Package - found online on the Intel S10 MX website.

All interfaces seem to work well except for the DDR4 HiLo test. When the board is programmed with the example design, the status monitor for the test shows a failure. Further investigating signals in the EMIF shows that the calibration with the device fails. Basically, it seems that I cannot talk to the DDR4 device.

This is odd because the other example designs, including the DDR4 DIMM test, passes and works as expected.

The DDR4 HiLo daughter card seems to be Micron:MT40A512M16JY-075E:B.

I would really appreciate Intel's (or the community's) assistance with this.
Is it that the example designs provided by the manufacturer are faulty or am I perhaps overlooking something?

Thanks a lot

  • Deshi_Intel's avatar
    Deshi_Intel
    5 years ago

    HI,


    I have consulted both Intel marketing and Intel Engineering team regarding your issue


    The feedback that I got is typically as long as the HILO card is firmly inserted into the board slot then should be fine. Else if there is loose pin contact then user may encounter DDR4 calibration failure.

    • I recalled you told me you have verified that your HILO card is properly/tightly plug into on board HILO connector, right ?


    For DDR4 Hilo card replacement, Intel marketing commented can directly ship DDR4 hilo replacement card to you.

    • Can you share with me your shipment detail ?
    • Shipment attention name, address, phone contact and email contact
    • You can use forum private message function to share with me shipment detail if you don't feel comfortable to share detail in this public forum post


    Thanks.


    Regards,

    dlim


13 Replies

  • Deshi_Intel's avatar
    Deshi_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    BTS software is customized software that only works with specific Quartus version only. Can you ensure you are using the correct Quartus version as specified in below dev kit link ?


    Also, can you help to check to ensure there is no physical damage on DDR4 HILO card, particularly the pins and then properly insert/plug back into on board HILO socket, then rerun BTS again.


    Thanks.


    Regards,

    dlim


    • s10M's avatar
      s10M
      Icon for New Contributor rankNew Contributor
      5 years ago

      Hello @Deshi_Intel,

      Thank you for your reply. I appreciate it.

      We are currently using the correct Quartus version as specified by the BTS. All the designs in the BTS seem to work fine except the DDR4 HiLo one.

      I did verify the daughtercard itself and it seems to be firmly connected into the board (with no visible damage).

      Could you kindly confirm with me that the DDR4 HiLo design in the BTS does in fact work in your (or your engineer's) MX devkit?

      It seems like this problem was experienced by another user as well (https://community.intel.com/t5/Programmable-Devices/DDR4-HILO-in-S10MX-failed-initialization/m-p/1194331#M76403) which seemed to be unresolved as well.

      Thank you for your help. I appreciate it.

  • Deshi_Intel's avatar
    Deshi_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    HI,


    Thanks for your feedback.


    Let me try to look around to search for S10 MX dev kit board to try out the BTS sof file myself.


    If it works on my side then maybe your DDR4 HILO card is faulty then I can initiate RMA process for you to get new replacement HILO card.


    Thanks.


    Regards,

    dlim


    • s10M's avatar
      s10M
      Icon for New Contributor rankNew Contributor
      5 years ago

      Perfect - thank you so much for your assistance. Much appreciated.

      Looking forward to hearing from you soon.

      • Deshi_Intel's avatar
        Deshi_Intel
        Icon for Regular Contributor rankRegular Contributor
        5 years ago

        Hi,

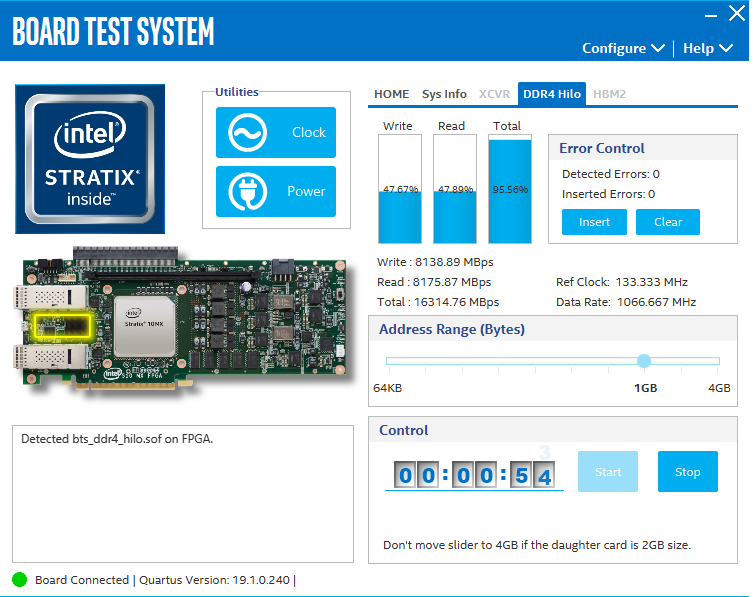

        I have verified DDR4 Hilo test at my S10 MX board and it's passing as shown in attached BTS GUI screenshot.

        I don't have the exact Quartus v18.1.1 so I tried out with Quartus v19.1 and somehow it still works

        So, I suspect your DDR4 Hilo card is faulty. Can you help to confirm following ?

        • Can you at least program BTS pre-compiled sof "bts_ddr4_hilo.sof" using Quartus programmer tool ? This is to ensure your MX dev kit board is good while likely only DDR4 Hilo card is bad
        • Also, can you share with me the BTS screen shot showing failure on DDR4 Hilo test ?

        Thanks.

        Regards,

        dlim

  • Deshi_Intel's avatar
    Deshi_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    Based on my understanding, the 8GB vs 16GB memory density difference is applicable to HBM2 memory, not DDR4 Hilo memory density.


    You can see the difference in ordering info table. The FPGA OPN is difference as well


    The board that I am using is same like yours which is 1SM21BHU2F53E1VG (8GB HBM2)


    Can you provide me your S10 MX dev kit board serial number so that I can validate whether your board is still under warranty claim ?


    In parallel, I will find out further within Intel internally on the RMA claim process as well.


    Thanks.


    Regards,

    dlim



    • s10M's avatar
      s10M
      Icon for New Contributor rankNew Contributor
      5 years ago

      Hello @Deshi_Intel ,

      Yes - you are correct regarding the difference between the two boards. However, when I looked at the HiLo example designs for each of the board, the EMIF is parameterized as UDIMM in the 16GB HBM2, and COMPONENT in the 8GB HBM2. Since the DDR4 Hilo is not different in the two boards, I was confused (and curious) about which design you used for your test.

      Since you are using the same board as me, I guess your EMIF is parameterized as COMPONENT.

      For your reference, my board's serial number is 10SMXPCIe000398 and K54160-001. I should mention that the board works well: all the designs we have tested on it so far have passed. It is just the HiLo design that is failing in the calibration stage. This could point to a problem with the design and/or the daughter card.

      Could I ask you what the DDR4 HiLo card you are using?
      The FBGA and Component Marking in my daughter card is 7LB45 D9TNZ (which according to https://www.micron.com/support/tools-and-utilities/fbga tells me the part number).

      Thanks again for the help and support you are providing to resolve this issue.

  • Deshi_Intel's avatar
    Deshi_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    Frankly speaking, I don't pay attention to the 16GB installation package hilo example design setting since I am using 8GB installation package. (I am using 8GB HBM2 board anyway)


    I am using \\stratix10MX_1sm21bhu2f53_fpga_revB_v18.1.1b263_v1.0\examples\board_test_system\image\PRD\bts_ddr4_hilo.sof directly without reviewing the DDR4 IP setting.


    I can see my DDR4 Hilo card on board DDR4 SDRAM marking info is "7LB45 D9TNZ" as well


    The selection of DIMM vs component is just for user own acknowledgement purpose to pay attention to board layout design routing phase later. It doesn't alter DDR4 IP setting.


    I have validated your board is still under warranty claim.

    • However, there is one issue here. I just found out from Intel Marketing Micron already EOL existing version of DDR4 Hilo card
    • I am now checking with Intel marketing on what's the replacement Hilo card and how does it difference from original DDR4 Hilo card


    Stay tuned. Will keep you posted once I hear back more from Intel marketing.


    Thanks.


    Regards,

    dlim


  • Deshi_Intel's avatar
    Deshi_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    HI,


    I have consulted both Intel marketing and Intel Engineering team regarding your issue


    The feedback that I got is typically as long as the HILO card is firmly inserted into the board slot then should be fine. Else if there is loose pin contact then user may encounter DDR4 calibration failure.

    • I recalled you told me you have verified that your HILO card is properly/tightly plug into on board HILO connector, right ?


    For DDR4 Hilo card replacement, Intel marketing commented can directly ship DDR4 hilo replacement card to you.

    • Can you share with me your shipment detail ?
    • Shipment attention name, address, phone contact and email contact
    • You can use forum private message function to share with me shipment detail if you don't feel comfortable to share detail in this public forum post


    Thanks.


    Regards,

    dlim


  • Deshi_Intel's avatar
    Deshi_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    I have not hear back from you for sometime.


    Do you still want DDR4 Hilo replacement card ?


    Can you share with me your shipment address for Intel to replace DDR4 Hilo card for you ?


    Thanks.


    Regards,

    dlim


    • s10M's avatar
      s10M
      Icon for New Contributor rankNew Contributor
      5 years ago

      Hello @Deshi_Intel ,

      Thank you for the information and the help.

      We have tried using another DDR4 Hilo daughter card that we had available to us, and as you had experienced, the design and the interface works well!

      So it seems that the original DDR4 daughter card may have been faulty.

      I am still in conversation with my boss regarding the next steps on obtaining a replacement and shipment details. I will let you know our next plan of action.

      Thank you, once again for your help. Your and Intel's support is much appreciated.

  • Deshi_Intel's avatar
    Deshi_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    HI,


    I am setting this forum case to closure since we have moved the discussion in private message mode.


    Let's continue to close loop in private message.


    Thanks.


    Regards,

    dlim
