Arria10GX PCIE to RSU implementation

Hello expert,

We build an Arria10(GX) PCIe Card, which inserts into x86 SERVER for usage. Now we need to realize the FPGA upgrading functionality throught PCIE slot, instead if JTAG coz customer don't have jtag box at all.

Is there any A10 design example to implement this upgrading functionality? Thanks a lot

  • Hi,


    I can access the link and download the example design. Kindly try to access using different browser or clear the browsing data history before downloading the design.


    Thanks.

    Best regards,

    KhaiY


11 Replies

    • JET60200's avatar
      JET60200
      Icon for Contributor rankContributor

      Hi @KhaiChein_Y_Intel ,

      regarding of " Could you share what does functionality upgrade mean? " question?

      => actually what I mean is :

      we want to download & burn new FPGA Image into our A10 board, through PCIe i/f.

      I see there're some RSU Example is through “i2c” or "uart" , not sure whether RSU can go through PCIe ? if yes, where can find the example project ?

      Thanks for reply

      • KhaiChein_Y_Intel's avatar
        KhaiChein_Y_Intel
        Icon for Regular Contributor rankRegular Contributor

        Hi,

        For Intel Arria 10 devices, use Partial Reconfiguration over Protocol instead of CvP Update. You can use the PCIe bus to perform Partial Reconfiguration.

        In CvP, you partition your design into two images: core image and periphery image.

        • Periphery image (*.periph.jic) — contains general purpose I/Os (GPIOs), I/O registers, the GCLK, QCLK, and RCLK clock networks, and logic that is implemented in hard IP such as the JTAG interface, PR block, CRC block, Oscillator block, Impedance control block, Chip ID, ASMI block, Remote update block, Temperature sensor, and Hard IP for PCI Express IP Core. These components are included in the periphery image because they are controlled by I/O periphery register bits. The entire periphery image is static and cannot be reconfigured.
        • Core image (*.core.rbf) — contains logic that is programmed by configuration RAM (CRAM). This image includes LABs, DSP, and embedded memory. The single static core image may include PR reconfigurable regions.
          • Reconfigurable region — This region can be programmed in user mode while the PCIe link is up and fully enumerated. It must contain only resources that are controlled by CRAM such as LABs, embedded RAM blocks, and DSP blocks in the FPGA core image. It cannot contain any periphery components such as GPIOs, transceivers, PLL, I/O blocks, the Hard IP for PCI Express IP Core, or other components included in the periphery image.
          • Static region — This region cannot be modified.

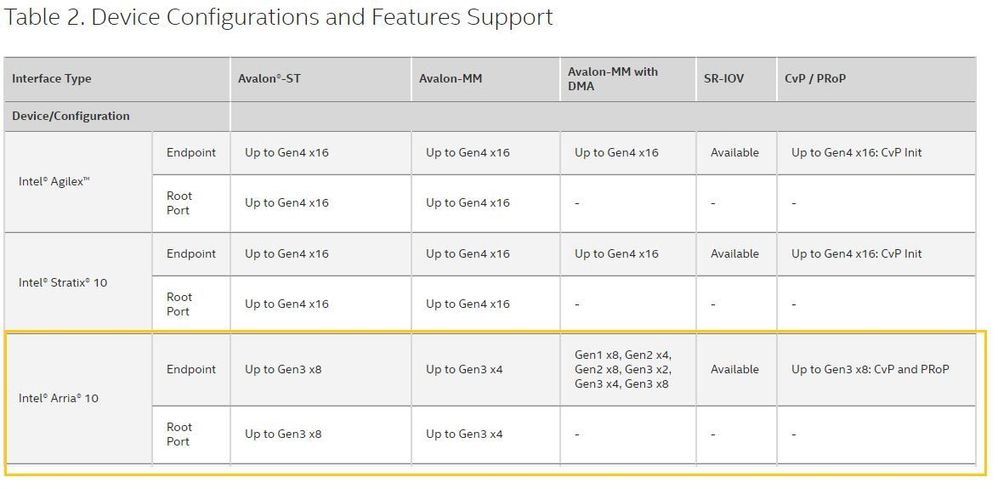

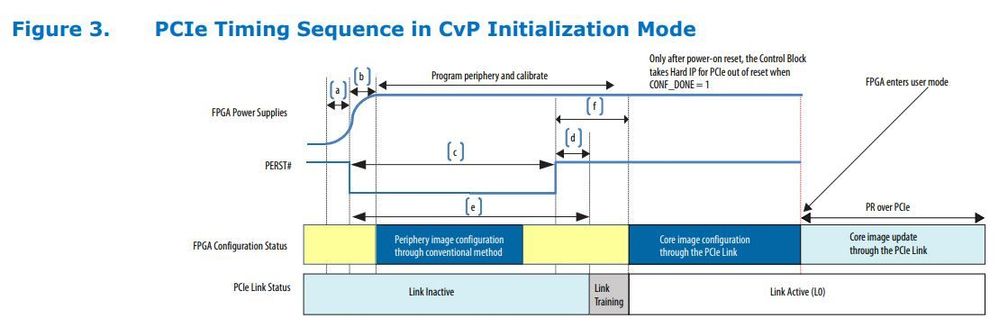

        If you refer to the PCIe timing sequence in CvP mode, you will see that PCIe link is inactive during Periphery image configuration. PCIe link training happens after the Periphery image configuration is completed. Therefore, you can use the PCIe link to perform Core image configuration only. For Periphery image configuration, you have to use the conventional method such as JTAG.

        intel.com/content/dam/www/programmable/us/en/pdfs/literature/ug/ug_a10_cvp_prop.pdf

        Thanks

        Best regards,

        KhaiY

  • KhaiChein_Y_Intel's avatar
    KhaiChein_Y_Intel
    Icon for Regular Contributor rankRegular Contributor

    Hi,


    I can access the link and download the example design. Kindly try to access using different browser or clear the browsing data history before downloading the design.


    Thanks.

    Best regards,

    KhaiY


  • KhaiChein_Y_Intel's avatar
    KhaiChein_Y_Intel
    Icon for Regular Contributor rankRegular Contributor

    Hi,


    I’m glad that your question has been addressed, I now transition this thread to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you


    Best regards,

    KhaiY


    • sachin_blr's avatar
      sachin_blr
      Icon for New Contributor rankNew Contributor

      Hi @KhaiChein_Y_Intel ,

      We have been trying to be able to perform remote system update of Arria 10 GX FPGA

      Our setup is as below:
      - Arria 10 GX development board connected as a PCIe device to the motherboard of a PC having Intel i5 processor.
      - OS installed on host PC : Ubuntu 20.04 64-bit

      We have loaded the RSU over pcie example design provided by Intel on the FPGA.

      However, when we run the `lspci -v` command on a terminal in the host PC as a root user, we get the below output,

      ------------------------------------------------------------------------------------------

      01:00.0 Unassigned class [ff00]: Altera Corporation Device e001 (rev a5)
      Subsystem: Device a106:2484
      Flags: fast devsel, IRQ 11
      Memory at <unassigned> (64-bit, prefetchable) [disabled]
      Capabilities: [50] MSI: Enable- Count=1/4 Maskable- 64bit+
      Capabilities: [78] Power Management version 3
      Capabilities: [80] Express Endpoint, MSI 00
      Capabilities: [100] Virtual Channel
      Capabilities: [200] Vendor Specific Information: ID=1172 Rev=0 Len=044 <?>
      Capabilities: [300] Secondary PCI Express
      Capabilities: [800] Advanced Error Reporting
      Kernel modules: altera_cvp

      ------------------------------------------------------------------------------------------

      Would you please give any input(s) with regard to addressing the above issue?

      Thanks in advance.

      - Sachin
