anyone explain the flash programming setting for arria 10, part number 10AX115S2F45I1SG,

i want know flash programming configuration for arria 10 board, part number 10AX115S2F45I1SG,

  • BoonBengT_Altera's avatar
    BoonBengT_Altera
    4 years ago

    Hi @APPU_appu,

    Thank you for posting and sharing the finding in Intel community forum, hope this message find you well and apologies for the delayed in response.
    Per understanding from the previous conversation, please do refer to the following steps here that will bring you through on generating the hex files.
    Hope that helps to clarify.

    Best Wishes
    BB

18 Replies

    • APPU_appu's avatar
      APPU_appu
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      Flash EPCQL1024,

      please tell me how to assign start address foe .sof and .hex file.

    • APPU_appu's avatar
      APPU_appu
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      Hi @JohnT_Intel

      Thanks,


      according to handbook i updated my project, still it is showing same error.

      is there any example project related to remote update generic flash serial for arria 10 part number 10AX115S2F45I1SG and EPCQL1024 flash.

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    May I know what is the error observed? The reason is that the image is very blur.


    • APPU_appu's avatar
      APPU_appu
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      Hii @JohnT_Intel @n_scott_pearson

      Thanks for replying

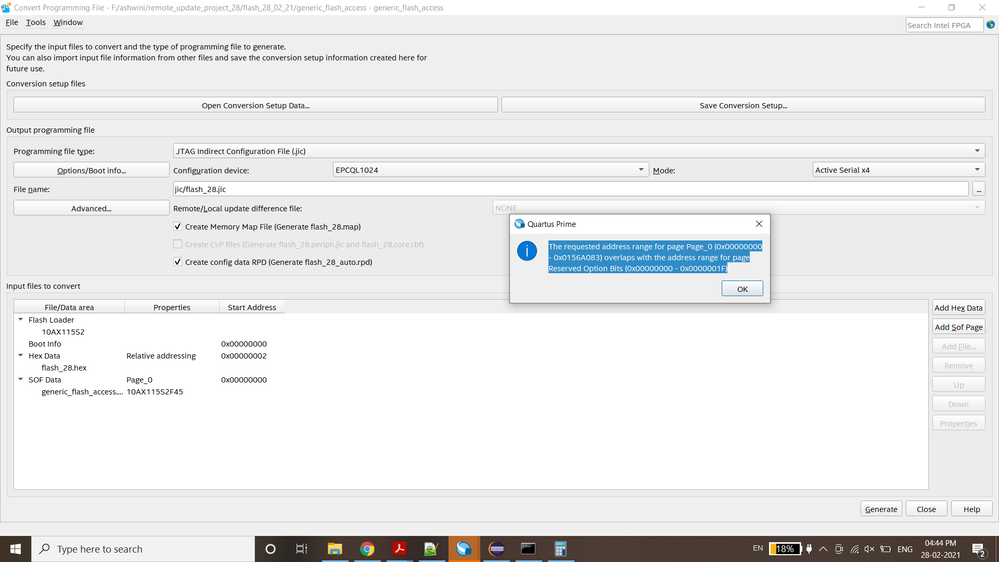

      1.Here the issue is how to generate .hex file (if i generate .hex file with the nios tool, while generating .jic file Quartus tool is telling like address overlap with 0x0000_00F0).

      2. What should be the address for Nios IP and generic serial IP for reset vector.

      3.what should be written in main.c (nios II SBT) to connect remote terminal

      4. how to connect remote teminal our project

      Thanks @JohnT_Intel

      Below i attached my project arria 10 (part number : 10AX115S2F45I1SG and flash EPCQL1024)

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,

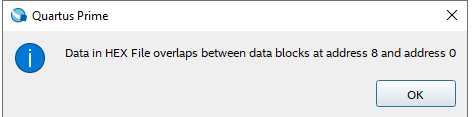

    May I know which HEX file should I used? I try both the hex file in software\arria10\mem_init folder and it is telling me that there is overlap data inside the hex file.


    • APPU_appu's avatar
      APPU_appu
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      Hi @JohnT_Intel

      Thanks,

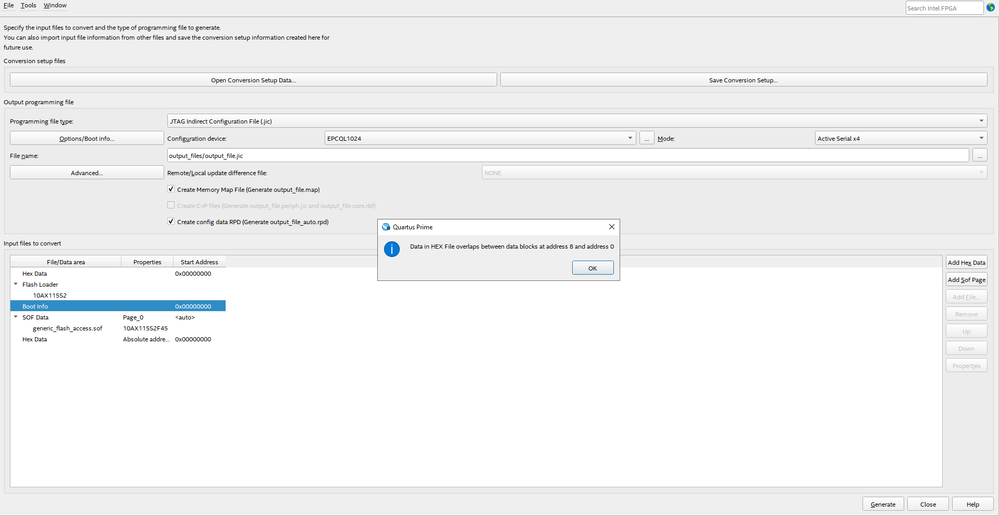

      yes with that both file i am geting same error like


      i am also facing same issue, i am not able to solve. can u tell me how to generate proper .hex file with nios

      • APPU_appu's avatar
        APPU_appu
        Icon for Occasional Contributor rankOccasional Contributor
        5 years ago

        Hi @JohnT_Intel

        Thanks,

        community.intel.com/t5/FPGA-SoC-And-CPLD-Boards-And/Arria-10-gx-remote-upgrade-generic-flash-access-using-flash/m-p/1260855#M19387

        what ever projet you give that project is not having nois ip and generic flash and remote ip also.

        If i tried upgrade 18.1 quartus it is showing error in the ip upgradation

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi,

    I do not observed any attachment.

    1. May I know if you are using Quartus Programmer to program the jic file?

    2. When you mention not booting, is it the FPGA not configured successfully or the Nios II not booting successfully?

    • APPU_appu's avatar
      APPU_appu
      Icon for Occasional Contributor rankOccasional Contributor
      4 years ago

      @JohnT_Intel @BoonBengT_Altera
      just now updated one attachmenet plaese check that one and yes for remote upgrad we used .rpd file which generated form .jic (sof + hex file) . when i tried upgrade flash with .rpd file with the external tool like remote terminal/uart terminal fpga glowing with red led after powering on.

    • JohnT_Altera's avatar
      JohnT_Altera
      Icon for Regular Contributor rankRegular Contributor
      4 years ago

      Hi,

      May I know which address do you start writing into the flash? If you are writing into address 0x0 of the flash then it will not work. You will need write to address 0x20 of the flash.

      Do you generate with Little Endian or Big Endian? You can change the rpd endian through the Option setting.

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi,


    Can you try to generate big endian and see if the issue is resolved? If it is still not resolved, could you help to read the flash content?
