Compilation issue

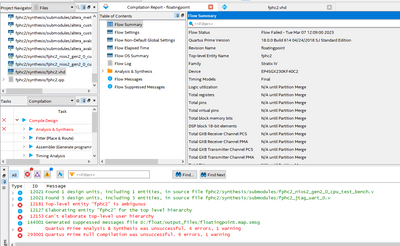

I want to do some calculations which involves floating point with nios ii. So I made qsys system adding floating point hardware 2 component then generated hdl. and add all files to quartus and tried to compile but I got this error.

I search for error and it says repeated file give this error but there is no any file named with my top file. Anyone could you please help me.

Thanks in advance  

  • EBERLAZARE_I_Intel's avatar
    EBERLAZARE_I_Intel
    3 years ago

    Hi,


    Firstly, remove the/all unnecessary files in the "Files" tab in Quartus after you generate HDL in Platform Designer.


    Then locate the .qip files in the "synthesis" folder directory that you generated from Platform Designer above.


    Add the .qip file in the "Files" tab. And compile your Quartus.



    p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.


15 Replies

  • EBERLAZARE_I_Intel's avatar
    EBERLAZARE_I_Intel
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,


    Can I get the design files from you and let me check from my side ? Also, which Quartus version and OS machine are you working on?


    • MUpam's avatar
      MUpam
      Icon for New Contributor rankNew Contributor
      3 years ago

      Thank you

      Sorry for the delay of my reply.I used windows ,quartus prime standard edition and my device is Stratix iv 230

      Here I have attached the project. Please check

      Thank you.

  • EBERLAZARE_I_Intel's avatar
    EBERLAZARE_I_Intel
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,


    Thanks for the files, I will test it from my side and let you know the results, this might take a few days, I am bit tight up on my side.


    Thanks again for your patience.


    • MUpam's avatar
      MUpam
      Icon for New Contributor rankNew Contributor
      3 years ago

      Thank you very much EBERLAZARE_I_Intel. I’m looking forward to hear from you.

  • EBERLAZARE_I_Intel's avatar
    EBERLAZARE_I_Intel
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,


    I just got the files downloaded today as we were having issues with our website. I can now check it. I will let you know the update in the next few days.


  • EBERLAZARE_I_Intel's avatar
    EBERLAZARE_I_Intel
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,


    Firstly, remove the/all unnecessary files in the "Files" tab in Quartus after you generate HDL in Platform Designer.


    Then locate the .qip files in the "synthesis" folder directory that you generated from Platform Designer above.


    Add the .qip file in the "Files" tab. And compile your Quartus.



    p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.


    • MUpam's avatar
      MUpam
      Icon for New Contributor rankNew Contributor
      3 years ago

      Hi,

      Sorry for the delay of my reply and Thank you very much for the reply. It compiled but I did not have top file selected for the project is that okay?

      Other thing is when we create the nios II project, what is the project template we should select? .is it float2 functionality, float2 GCC or float2 performance to print our floating point calculation results to the console?

      • MUpam's avatar
        MUpam
        Icon for New Contributor rankNew Contributor
        3 years ago

        I created project using float2 GCC because it was mentioned that it infer floating point operations provided
        by the Floating Point Hardware 2 component.

        The try to build project after modifying float_gcc.c file as bellow giving print command

        #include <stdio.h>
        #include <math.h>
        #include "system.h"
        #include "float2_gcc.h"

        int main(void)
        {
        int ret = show_gcc_inference();

        printf("Result: %d\n", ret);

        return ret;
        }

        but I got error as below

        ' -msys-lib=hal_bsp -L../ode_bsp/ -L../ode_bsp//newlib/nios2-elf/lib -Wl,-Map=ode.map -O0 -g -Wall -mno-hw-div -mhw-mul -mhw-mulx -mgpopt=global -fno-math-errno -mcustom-fabss=224 -mcustom-fadds=253 -mcustom-fcmpeqs=227 -mcustom-fcmpges=228 -mcustom-fcmpgts=229 -mcustom-fcmples=230 -mcustom-fcmplts=231 -mcustom-fcmpnes=226 -mcustom-fdivs=255 -mcustom-fixsi=249 -mcustom-floatis=250 -mcustom-fmuls=252 -mcustom-fnegs=225 -mcustom-fsubs=254 -o ode.elf obj/default/float2_gcc.o obj/default/float2_gcc_no_custom.o -lm -msys-lib=m
        c:/intelfpga/18.0/nios2eds/bin/gnu/h-x86_64-mingw32/bin/../lib/gcc/nios2-elf/5.3.0/../../../../../H-x86_64-mingw32/nios2-elf/bin/ld.exe: ode.elf section `.text' will not fit in region `onchip_memory2_0'
        c:/intelfpga/18.0/nios2eds/bin/gnu/h-x86_64-mingw32/bin/../lib/gcc/nios2-elf/5.3.0/../../../../../H-x86_64-mingw32/nios2-elf/bin/ld.exe: address 0x1cff0 of ode.elf section `.rwdata' is not within region `onchip_memory2_0'
        c:/intelfpga/18.0/nios2eds/bin/gnu/h-x86_64-mingw32/bin/../lib/gcc/nios2-elf/5.3.0/../../../../../H-x86_64-mingw32/nios2-elf/bin/ld.exe: address 0x1ec4c of ode.elf section `.bss' is not within region `onchip_memory2_0'
        c:/intelfpga/18.0/nios2eds/bin/gnu/h-x86_64-mingw32/bin/../lib/gcc/nios2-elf/5.3.0/../../../../../H-x86_64-mingw32/nios2-elf/bin/ld.exe: address 0x1cff0 of ode.elf section `.rwdata' is not within region `onchip_memory2_0'
        c:/intelfpga/18.0/nios2eds/bin/gnu/h-x86_64-mingw32/bin/../lib/gcc/nios2-elf/5.3.0/../../../../../H-x86_64-mingw32/nios2-elf/bin/ld.exe: address 0x1ec4c of ode.elf section `.bss' is not within region `onchip_memory2_0'
        c:/intelfpga/18.0/nios2eds/bin/gnu/h-x86_64-mingw32/bin/../lib/gcc/nios2-elf/5.3.0/../../../../../H-x86_64-mingw32/nios2-elf/bin/ld.exe: region `onchip_memory2_0' overflowed by 66260 bytes
        collect2.exe: error: ld returned 1 exit status
        make: *** [ode.elf] Error 1

        is this mean my nios 2 onchip memory is not enough? I am using Stratix iv 230 and I set onchip memory as 27000 .

        Hope you can give me some advice.

        Thank you

  • EBERLAZARE_I_Intel's avatar
    EBERLAZARE_I_Intel
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,


    Which Quartus version are you working on is it Lite or Standard? Let me re-check the sizes.


    "For the top level of your FPGA-based design might be your Platform Designer system (.qsys). However, the FPGA can include additional design logic."


  • MUpam's avatar
    MUpam
    Icon for New Contributor rankNew Contributor
    3 years ago

    Hi,

    Thank you very much EBERLAZARE_I_Intel. When I incresed the On chip size it worked.

    Thank you very much for the advices.

  • EBERLAZARE_I_Intel's avatar
    EBERLAZARE_I_Intel
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,


    Thanks for the update, I presume that's it.


    Is your board an evaluation board or a custom board? Do you require any further help or any previous help still required?


  • MUpam's avatar
    MUpam
    Icon for New Contributor rankNew Contributor
    3 years ago

    Hi,

    Thank you very much EBERLAZARE_I_Intel f. still writing the C code. no error so far . Our board is DE4 stratix IV board .

  • EBERLAZARE_I_Intel's avatar
    EBERLAZARE_I_Intel
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,


    Since the compilation issue is solved, I will set the thread to close. You may open a new thread if you have new questions.
