Hi I have been learning FPGA development for past few months. Now I have started using platform designer. I could generate an IP, do all the connections and generate HDL in VHDL. When I tried running a BFM simulation using Questa, the files got compiled successfully without errors and warnings. But when I run the simulation on the test bench, it shows warnings that the components in top level entity are not bound. I can't proceed further and what should I do to resolve these issues. Moreover, are their good resources, libraries or exercises about platform designer and bus functional model simulation. Looking for a solution for these problems. Kind Regards Aswin

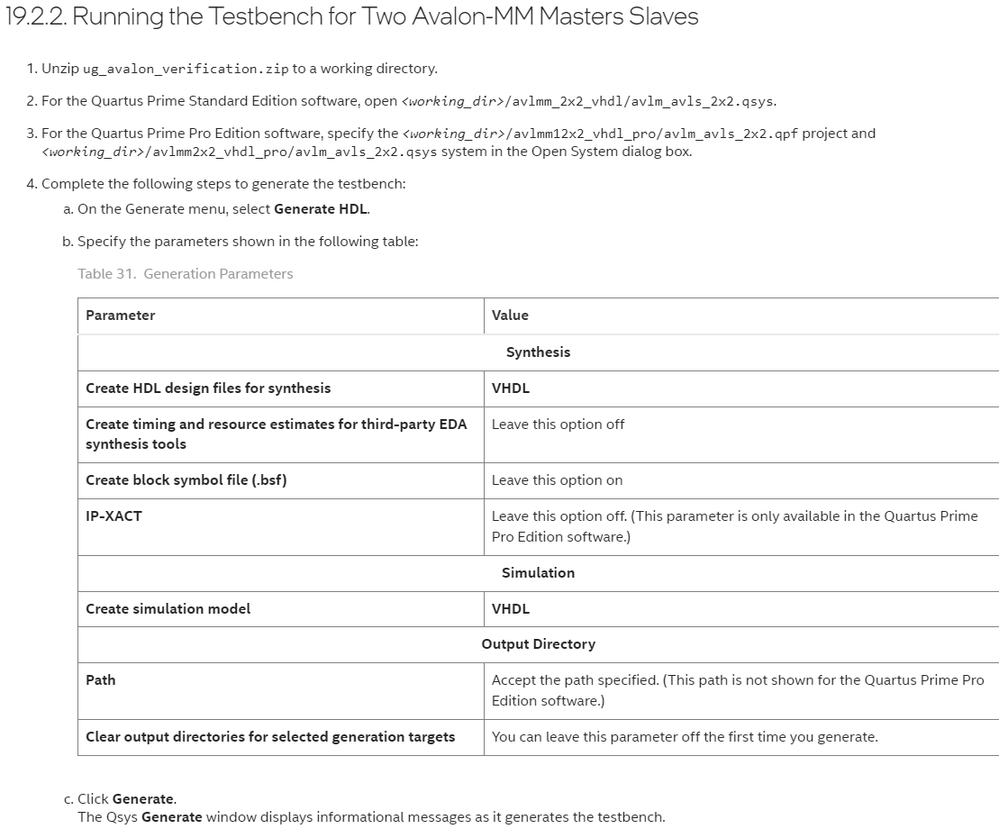

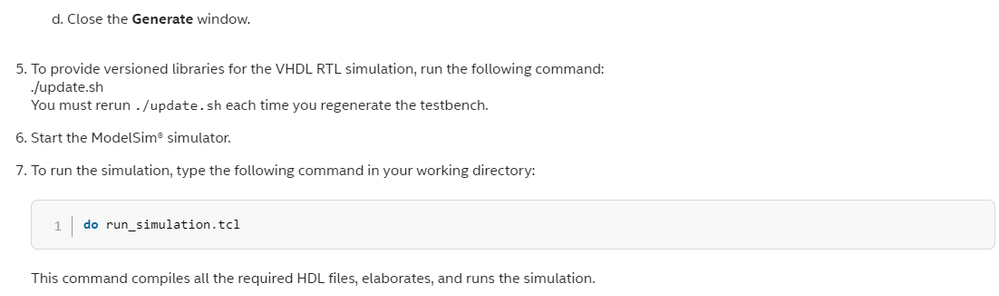

Hi @Aswinkrishnan , One more thing is have you follow the BFM simulation steps of avlmm_2x2_vhdl in the screenshots below?: Best regards,Shengp/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.

Platform Designer BFM simulation | Altera Community

10 Replies

ShengN_altera
Super Contributor
3 years ago
Hi @Aswinkrishnan ,

Document below shows the steps related to bus functional model simulation:

https://www.intel.com/content/www/us/en/docs/programmable/683439/20-4/avalon-st-verilog-hdl-testbench.html

Click this link to download the testbench Avalon Verification IP Suite Design Files.

Design store:

https://www.intel.com/content/www/us/en/design-example/714486/cyclone-10-lp-avalon-verification-ip-suite-single-avalon-mm-master-and-slave-pair.html

https://www.intel.com/content/www/us/en/design-example/714488/cyclone-10-lp-avalon-verification-ip-suite-two-avalon-mm-master-and-slave-pair.html

Course video:

https://learning.intel.com/Developer/learn/course/97/Avalon%2520Verification%2520Suite

https://learning.intel.com/Developer/learn/course/95/Advanced%2520System%2520Design%2520Using%2520Platform%2520Designer%253A%2520Component%2520%2526%2520System%2520Simulation

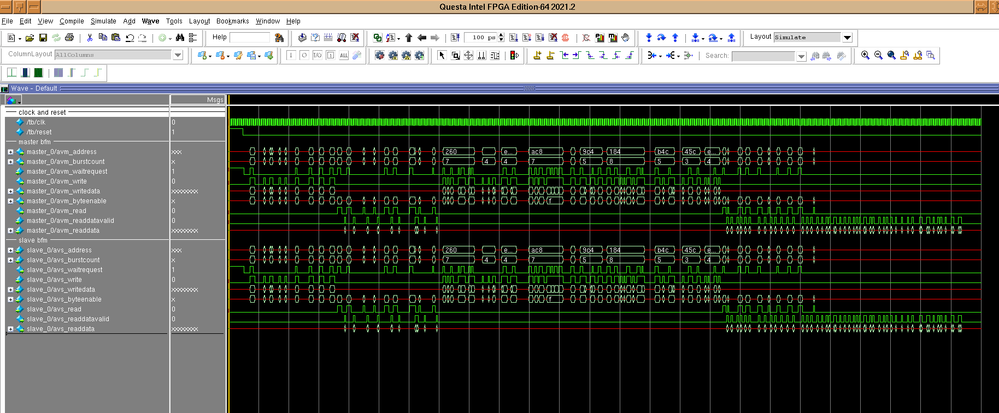

Below attached the tested BFM simulation file for your refence (check image):

Best regards,

Sheng

p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.
avlmm_1x1_verilog_test.zip624 KB
- Aswinkrishnan
  Occasional Contributor
  3 years ago
  Thank you for providing links to the resources page. But I can't access it because it is due to system time out or privacy restrictions. I tried changing my system to Eastern Time, yet forbidden. I was told to contact the administrator.
ShengN_altera
Super Contributor
3 years ago
Hi,

Most likely you have to get an account at Intel official website https://www.intel.com/content/www/us/en/homepage.html first in order to access those links.

Thanks,
Best Regards,
Sheng
- Aswinkrishnan
  Occasional Contributor
  3 years ago
  I had created the account and is logged in, but the problem still persists.
  - ShengN_altera
    Super Contributor
    3 years ago
    Hi,

    Document below shows the steps related to bus functional model simulation:

    Intel website search for - Avalon Verification IP Suite: User Guide -> 18. Avalon-ST Verilog HDL Testbench

    Design store:

    Intel website search for - FPGA Design Store | Intel then click in and search for

    Cyclone 10 LP - Avalon Verification IP Suite(Single Avalon-MM Master and Slave Pair)

    Cyclone 10 LP - Avalon Verification IP Suite(Two Avalon-MM Master and Slave Pair)

    Course video:

    Intel website go to DEVELOPERS -> Learn -> Intel® Quartus® Prime Software: Foundation -> Home and search for

    Avalon Verification Suite

    Advanced System Design Using Platform Designer: Component & System Simulation

    Thanks,

    Best Regards,

    Sheng
ShengN_altera
Super Contributor
3 years ago
Hi,

Any further update or consideration on this thread?

Let me know if you have any further concern.

Best regards,

Sheng

p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.
