How to use modelsim to do RTL simulation of DDR3 with UniPHY

Question

Hi everyone,
Environment : WIN10 64bits, Quartus II 18.1, modelsim-altera 10.5b, cyclone V E 5CEFA9F31I7N, Micron MT41J128M16JT-125*2.

I am a FPGA beginner. In my design, I used two Micron DDR3 on the PCB, I configured the IP core correctly, wrote a simple read and write test program, and verified it with Signaltap on the actual PCB, so I can sure that I can control DDR3 properly.
Now I want to use modelsim for RTL simulation because my code logic becomes more complex and signaltap sometimes doesn't reflect all timing situations better. But I don't understand how to do RTL simulation. I write a testbench, but modelsim show me some errors, for instance: modelsim Module parameter 'CFG_CMD_GEN_OUTPUT_REG' not found for override.Do I need to add some model files?The "External Memory Interface Handbook" has a lot operation to offer. but I can't find a specific operation.
Can you list the necessary steps? I want to follow these steps to complete the RTL simulation.

sstrell · Answer

You'll want to create the simulation example design from the EMIF UniPHY IP by running the scripts generated.  I'd link you but it appears a number of pages are down on intel.com right now.

adzimzm_altera · Answer

Hello and Good Day,In my opinion, you can create an example design from the EMIF IP.And then you can a run a simulation with a Modelsim script.You might want to refer to the link below for a reference: https://www.intel.com/content/www/us/en/docs/programmable/683841/17-0/functional-description-example-designs.htmlThanks,Adzim

ryan-seu · Answer

Hi Adzim,
Thank you for your reply!

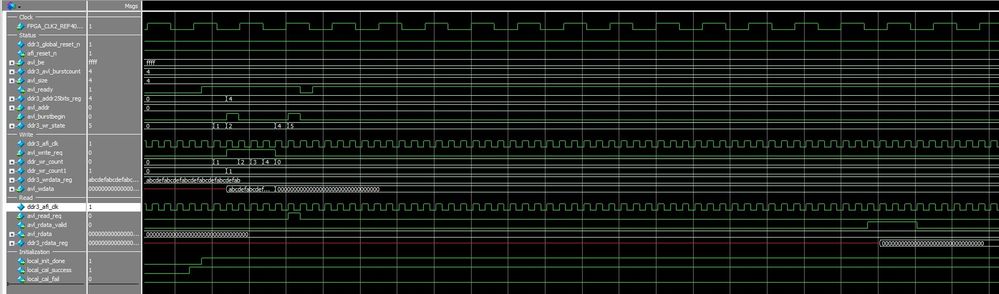

In fact, I used other methods to finish the simulation of modelsim. This method requires me to configure the simulation environment of modelsim correctly, write msim_setup.tcl scripts, .do files, etc. This method is very complicated, and in the process of simulation,  the  initialization of DDR3 can be successful, but the avl_ready signal will become unknown status after a period of high level. The problem may be that the timing I wrote is wrong, or the configuration environment is wrong. The most important thing is that all the work is done in the modelsim environment, and I still don't know what method to use to reliably complete the modelsim simulation after I wrote my own top-level file and testbench file in quartus. Which script do I need to run?
Thanks,
Ryan

adzimzm_altera · Answer

Hi Ryan,When generating the example design, you can choose either synthesis or simulation or both of them.Then the Quartus will generate the design accordingly.For the simulation file, the Quartus will generate a tcl script for each simulator.The script should has the library for the initialization and calibration flow of the DDR3.You can run the generated script to test the design.Regards,Adzim

ryan-seu · Answer

Hi Adzim,
Thanks for your reply!
I already kown that how use modelsim to do RTL simulation of DDR3. In fact, I can directly use the RTL simulation of quartus Nativelink, but I need to revise the of .do files.  Just refer to this link：https://www.macnica.co.jp/business/semiconductor/support/faqs/intel/134865/
Regards,
Ryan
