ContributorI have a path, Cell|in to Cell|out, want to disable by using set_disable_timing like follows.
set_disable_timing -from dataa to combout Cell
After Fitter, I can find the signal in on the dataa, and the signal out on the combout.
So, I can use the "set_disable_timing -from dataa to combout Cell" to disable the timing path.
But before synthesis, how to know that the signal in is on the dataa?
Thanks
Super ContributorUsually timing analysis is performed from/to registers or ports, not for individual logic cells on the path. When you cut a logic cell, you cut the whole path. Why not simply specify a timing exception between pre-synthesis entities? What do you want to achieve?
ContributorThank you, FvM, very, very, mhuch.
My purpose is for ASIC verification.

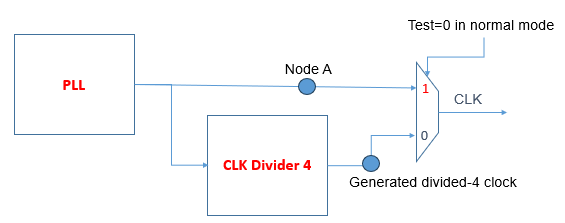

The design's architecture is as follows picture.
There are 2 clocks that pass the mux logic which is controlled by test signal.
I want to break the timing on node A or the timing path from node A to mux|out.
Due to unsupported set_case_analysis command, I try to use set_disable_timing command to do this.
Unfortunately, I don't know that the node A is on the dataa, datab, datac, datad, datae, or dataf before synthesis.
And I had tried to set_false_path command, but it can't work on a clock path.
Ex. set_false_path -from PLL/clock -through mux|out. (The mux|out node is CLK in the above picture.)
Super ContributorI don't quite understand why you want to cut timing on a clock path, but what you should be looking at is using set_clock_groups, not set_false_path, to indicate that only one clock domain is active on the output of the mux at a time:
set_clock_groups -exclusive -group {PLL_out} -group {PLL_outdiv4}
ContributorThank you, sstrell, very, very, much.
Yes, you are right.
However, the node A only work under that Test is 1 which is one kind of test mode.
On the FPGA, we don't verify that test mode.
So, I want to break the timing arc on the node A to reduce resource cost and compiler time.
I can't find a way to do that expect for modifying RTL code.

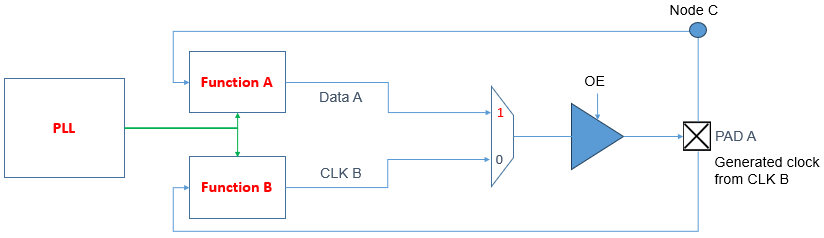

ContributorAnd there are the other case about output clock on the pad.
The PAD A have 2 functions.
One is the data path from Function A.
The other one is the clock path from Function B.
If I create a generated clock for CLK B on the PAD A, that clock will go into Function A.
So, Function A will have two clocks, the generated clock on the PAD A and PLL output.
However, the clock of Function A, the clock of Function B, and the generated clock on the PAD A are in the same clock domain.
I need take many many effort to set false path between the generated clock on the PAD A and the Function A.
So, I want to stop the clock propagating of the generated clock on the PAD A into the Function A.
Unfortunately, I don't know where is the Node C before synthesis when use the set_disable_timing command.
Super ContributorHi,
Means that you possible to see node c after synthesis? Probably can include node c in sdc after synthesis. Or using wildcard.
I believe sdc constraints like set_disable_timing will be processed at timing analysis stage.
Thanks,
Regards,
Sheng
ContributorThank you, ShengN, very, very, mhch.
No, I get a problem. Sorry about that.
I'm a Quartus GUI user.
Before getting off work, I click start compilation. Then next day, I can check the result.
However, "start compilation" button will continuous do Synthesis, Fitter, Timequest, and Assembler.
The next day, I only can see the result that after Fitter.
So, I only can find the "cell|datac" where is the node c location in the Chip Planner after Fitter.
Could you please tell me how to find the specified node after Synthesis?.
Super ContributorHi,
After full compilation, put the respective node name in your case "cell|datac" to the sdc command set_disable_timing. Then re-run the compilation again to load sdc file, does it helps?
Thanks,
Regards,
Sheng
ContributorCompiler twice!
I get it.
Maybe it can work. I think it should work.
Thank you, ShengN, very, very, much.
Super ContributorHi,
Let me know if you still have any further concern or update from your side.
Thanks,
Regards,
Sheng
ContributorThank you, ShengN, very, very, much.
I have no concern now.
I'm a GUI user.
I get a experience that TCL user may be more convenience.
I will try to get the node C or that signal after synthesis.
Do you know any SDC command to meet it?
I only know the get_cell and the get_pins command.
Super Contributorreopening the case.
Super ContributorHi,
You may check this link https://www.intel.com/content/www/us/en/docs/programmable/683432/24-2/tcl_pkg_sdc_ver_1-5.html
get_cells (::quartus::sdc)
get_clocks (::quartus::sdc)
get_nets (::quartus::sdc)
get_pins (::quartus::sdc)
get_ports (::quartus::sdc)
and this link https://www.intel.com/content/www/us/en/docs/programmable/683432/24-2/tcl_pkg_sdc_ext_ver_2-0.html
get_active_clocks (::quartus::sdc_ext)
get_fanins (::quartus::sdc_ext)
get_fanouts (::quartus::sdc_ext)
get_keepers (::quartus::sdc_ext)
get_nodes (::quartus::sdc_ext)
get_partitions (::quartus::sdc_ext)
get_registers (::quartus::sdc_ext)
Let me know if you have any further concern or update.
Thanks,
Regards,
Sheng
ContributorI get it. Thank you, ShengN, very, very, much.
