Hi,
I have got a screen full of text now with the following code, now i'm very new to code and if i'mnot mistaken i need to change the quite a lot here becauseit looks nothing like what I expected and when i try to compile I get errors with expected "entity or "architecture" etc. so I have changed where I think it is appropriate however I am still getting the following flow errors, could you advise? thanks again, you've been great help so far. Below i have pasted what i get from what you instructed, is this correct? I'm struggling again, apologies
/ PROGRAM "Quartus Prime"
// VERSION "Version 19.1.0 Build 670 09/22/2019 SJ Lite Edition"
// CREATED "Fri Apr 17 14:21:25 2020"

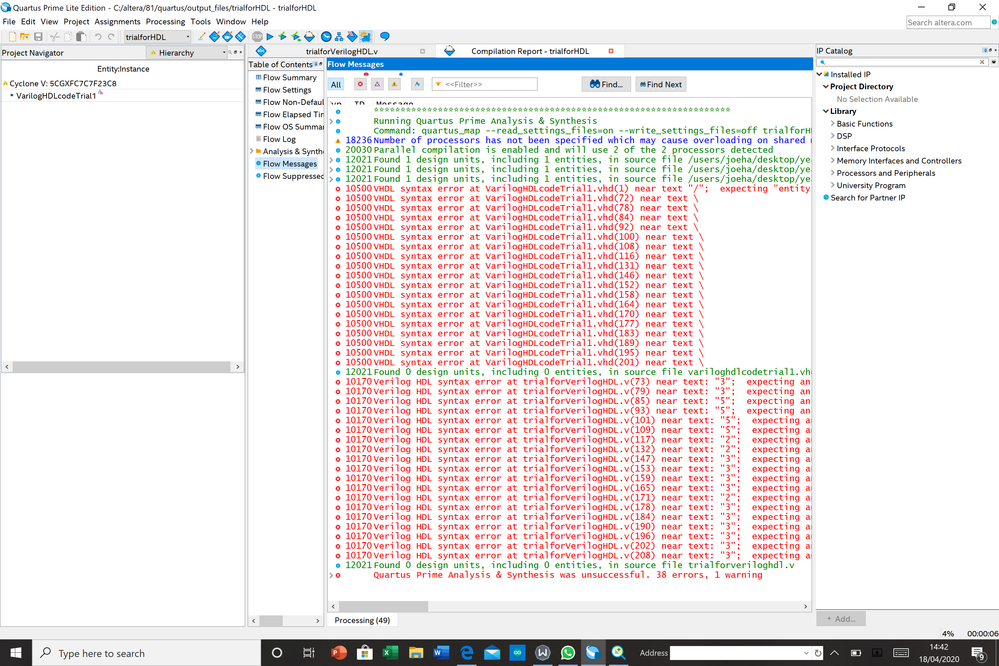

module D_flipflop( <Error (10500): VHDL syntax error at VarilogHDLcodeTrial1.vhd(5) > It asks for"is" then after that asks for "of"
Clock,
Set,
Reset,
LEDA,
LEDB,
LEDC,
LEDD,
LEDE
);
input wire Clock;
input wire Set;
input wire Reset;
output wire LEDA;
output wire LEDB;
output wire LEDC;
output wire LEDD;
output wire LEDE;
wire SYNTHESIZED_WIRE_76;
wire SYNTHESIZED_WIRE_77;
wire SYNTHESIZED_WIRE_78;
wire SYNTHESIZED_WIRE_79;
wire SYNTHESIZED_WIRE_80;
wire SYNTHESIZED_WIRE_81;
wire SYNTHESIZED_WIRE_82;
wire SYNTHESIZED_WIRE_83;
wire SYNTHESIZED_WIRE_84;
wire SYNTHESIZED_WIRE_20;
wire SYNTHESIZED_WIRE_21;
wire SYNTHESIZED_WIRE_22;
wire SYNTHESIZED_WIRE_23;
wire SYNTHESIZED_WIRE_85;
wire SYNTHESIZED_WIRE_54;
wire SYNTHESIZED_WIRE_55;
wire SYNTHESIZED_WIRE_56;
wire SYNTHESIZED_WIRE_57;
wire SYNTHESIZED_WIRE_58;
wire SYNTHESIZED_WIRE_59;
wire SYNTHESIZED_WIRE_60;
wire SYNTHESIZED_WIRE_61;
wire SYNTHESIZED_WIRE_62;
wire SYNTHESIZED_WIRE_63;
wire SYNTHESIZED_WIRE_64;
wire SYNTHESIZED_WIRE_65;
wire SYNTHESIZED_WIRE_66;
wire SYNTHESIZED_WIRE_67;
wire SYNTHESIZED_WIRE_68;
wire SYNTHESIZED_WIRE_69;
wire SYNTHESIZED_WIRE_70;
wire SYNTHESIZED_WIRE_71;
wire SYNTHESIZED_WIRE_72;
wire SYNTHESIZED_WIRE_73;
wire SYNTHESIZED_WIRE_74;
wire SYNTHESIZED_WIRE_75;
assign LEDA = SYNTHESIZED_WIRE_77;
assign LEDB = SYNTHESIZED_WIRE_79;
assign LEDC = SYNTHESIZED_WIRE_81;
assign LEDD = SYNTHESIZED_WIRE_83;
assign LEDE = SYNTHESIZED_WIRE_80;
\7408 b2v_inst(
.3(SYNTHESIZED_WIRE_76),
.2(SYNTHESIZED_WIRE_77),
.1(SYNTHESIZED_WIRE_57));
\7408 b2v_inst1(
.3(SYNTHESIZED_WIRE_78),
.2(SYNTHESIZED_WIRE_79),
.1(SYNTHESIZED_WIRE_59));
entity 7421 b2v_inst10( < Should I be inserting "entity" in here?
.5(SYNTHESIZED_WIRE_80),
.4(SYNTHESIZED_WIRE_81),
.3(SYNTHESIZED_WIRE_76),
.2(SYNTHESIZED_WIRE_82),
.1(SYNTHESIZED_WIRE_72));
\7421 b2v_inst11( < Should I be inserting "entity" in here?
.5(SYNTHESIZED_WIRE_83),
.4(SYNTHESIZED_WIRE_81),
.3(SYNTHESIZED_WIRE_76),
.2(SYNTHESIZED_WIRE_82),
.1(SYNTHESIZED_WIRE_67));
\7421 b2v_inst12(
.5(SYNTHESIZED_WIRE_84),
.4(SYNTHESIZED_WIRE_81),
.3(SYNTHESIZED_WIRE_79),
.2(SYNTHESIZED_WIRE_82),
.1(SYNTHESIZED_WIRE_56));
\7421 b2v_inst13(
.5(SYNTHESIZED_WIRE_80),
.4(SYNTHESIZED_WIRE_83),
.3(SYNTHESIZED_WIRE_81),
.2(SYNTHESIZED_WIRE_76),
.1(SYNTHESIZED_WIRE_58));
\7474 b2v_inst14(
.2D(SYNTHESIZED_WIRE_20),
.2PRN(Set),
.1CLK(Clock),
.1D(SYNTHESIZED_WIRE_21),
.1PRN(Set),
.2CLK(Clock),
.2CLRN(Reset),
.1CLRN(Reset),
.1QN(SYNTHESIZED_WIRE_82),
.2Q(SYNTHESIZED_WIRE_79),
.2QN(SYNTHESIZED_WIRE_76),
.1Q(SYNTHESIZED_WIRE_77));
\7474 b2v_inst15(
.2D(SYNTHESIZED_WIRE_22),
.2PRN(Set),
.1CLK(Clock),
.1D(SYNTHESIZED_WIRE_23),
.1PRN(Set),
.2CLK(Clock),
.2CLRN(Reset),
.1CLRN(Reset),
.1QN(SYNTHESIZED_WIRE_78),
.2Q(SYNTHESIZED_WIRE_83),
.2QN(SYNTHESIZED_WIRE_84),
.1Q(SYNTHESIZED_WIRE_81));
\7408 b2v_inst16(
.3(SYNTHESIZED_WIRE_84),
.2(SYNTHESIZED_WIRE_79),
.1(SYNTHESIZED_WIRE_60));
\7408 b2v_inst2(
.3(SYNTHESIZED_WIRE_78),
.2(SYNTHESIZED_WIRE_77),
.1(SYNTHESIZED_WIRE_55));
\7408 b2v_inst20(
.3(SYNTHESIZED_WIRE_84),
.2(SYNTHESIZED_WIRE_81),
.1(SYNTHESIZED_WIRE_63));
\7408 b2v_inst21(
.3(SYNTHESIZED_WIRE_78),
.2(SYNTHESIZED_WIRE_79),
.1(SYNTHESIZED_WIRE_62));
\7411 b2v_inst22(
.2(SYNTHESIZED_WIRE_78),
.3(SYNTHESIZED_WIRE_83),
.4(SYNTHESIZED_WIRE_80),
.1(SYNTHESIZED_WIRE_61));
\7408 b2v_inst27(
.3(SYNTHESIZED_WIRE_80),
.2(SYNTHESIZED_WIRE_84),
.1(SYNTHESIZED_WIRE_68));
\7408 b2v_inst28(
.3(SYNTHESIZED_WIRE_84),
.2(SYNTHESIZED_WIRE_77),
.1(SYNTHESIZED_WIRE_71));
\7408 b2v_inst29(
.3(SYNTHESIZED_WIRE_85),
.2(SYNTHESIZED_WIRE_83),
.1(SYNTHESIZED_WIRE_69));
\7408 b2v_inst30(
.3(SYNTHESIZED_WIRE_78),
.2(SYNTHESIZED_WIRE_77),
.1(SYNTHESIZED_WIRE_70));
\7408 b2v_inst34(
.3(SYNTHESIZED_WIRE_85),
.2(SYNTHESIZED_WIRE_83),
.1(SYNTHESIZED_WIRE_64));
\7408 b2v_inst35(
.3(SYNTHESIZED_WIRE_85),
.2(SYNTHESIZED_WIRE_76),
.1(SYNTHESIZED_WIRE_65));
\7411 b2v_inst36(
.2(SYNTHESIZED_WIRE_79),
.3(SYNTHESIZED_WIRE_81),
.4(SYNTHESIZED_WIRE_84),
.1(SYNTHESIZED_WIRE_66));
\7421 b2v_inst37(
.5(SYNTHESIZED_WIRE_83),
.4(SYNTHESIZED_WIRE_78),
.3(SYNTHESIZED_WIRE_79),
.2(SYNTHESIZED_WIRE_77),
.1(SYNTHESIZED_WIRE_74));
\7474 b2v_inst40(
.2PRN(Set),
.1CLK(Clock),
.1D(SYNTHESIZED_WIRE_54),
.1PRN(Set),
.1CLRN(Reset),
.1QN(SYNTHESIZED_WIRE_85),
.1Q(SYNTHESIZED_WIRE_80));
assign SYNTHESIZED_WIRE_21 = SYNTHESIZED_WIRE_55 | SYNTHESIZED_WIRE_56 | SYNTHESIZED_WIRE_57;
assign SYNTHESIZED_WIRE_20 = SYNTHESIZED_WIRE_58 | SYNTHESIZED_WIRE_59 | SYNTHESIZED_WIRE_60;
assign SYNTHESIZED_WIRE_23 = SYNTHESIZED_WIRE_61 | SYNTHESIZED_WIRE_62 | SYNTHESIZED_WIRE_63;
assign SYNTHESIZED_WIRE_75 = SYNTHESIZED_WIRE_64 | SYNTHESIZED_WIRE_65 | SYNTHESIZED_WIRE_66 | SYNTHESIZED_WIRE_67;
assign SYNTHESIZED_WIRE_73 = SYNTHESIZED_WIRE_68 | SYNTHESIZED_WIRE_69 | SYNTHESIZED_WIRE_70 | SYNTHESIZED_WIRE_71;
assign SYNTHESIZED_WIRE_22 = SYNTHESIZED_WIRE_72 | SYNTHESIZED_WIRE_73;
assign SYNTHESIZED_WIRE_54 = SYNTHESIZED_WIRE_74 | SYNTHESIZED_WIRE_75;
endmodule
