GND connection restriction between Logic Lock regions

Hello,

I am trying to realise a design with 3 logic regions (using logic lock). All of them are reserved regions (no connections between them).

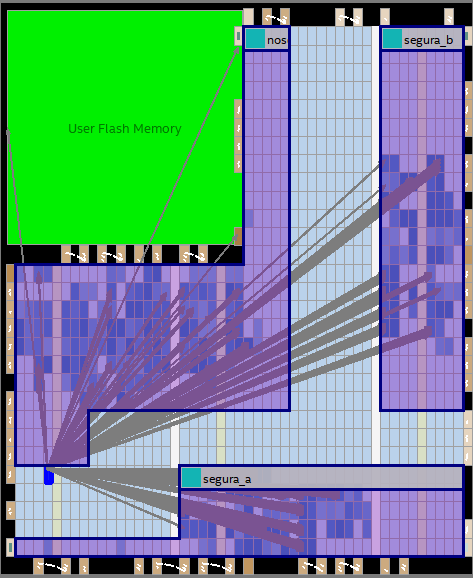

However, it is a conection outside the regions. It is the GND and it enters all reserved regions. I attach an image of the regions and the GND connection.

Is it possible to restrict the GND connection? I would prefer each region to have its own GND connection and not a shared GND outside the regions.

Thanks in advance

7 Replies

  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    1 year ago

    Hi,
    what does it mean? Is GND the name of a logic signal in your design? If it refers to logic 0, it doesn't involve actual connections.

    • esantana's avatar
      esantana
      Icon for New Contributor rankNew Contributor
      1 year ago

      Hi @FvM,

      It is not the name of a logic signal.

      This signal "GND" is the "0" value that is loaded into different counters when their clear input is activated in normal operation (by different output signals from state machines, for example).

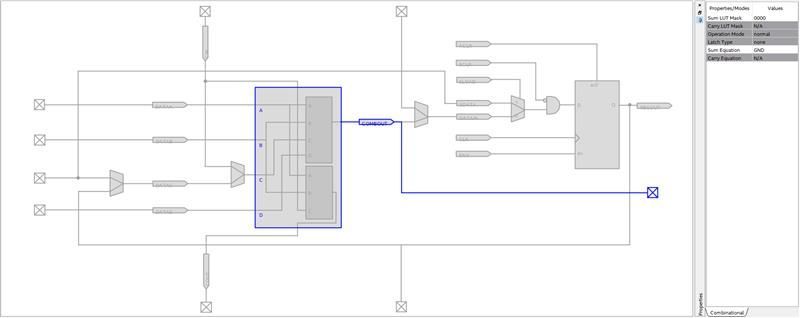

      The content of the cell that drives this "GND" is shown in this image:

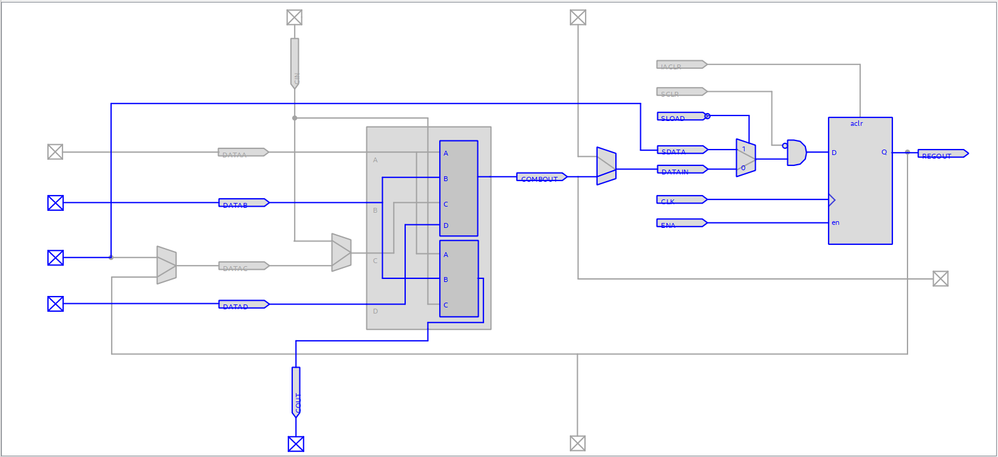

      And the content of a destination cell is shown in this image:

      What do you mean by "If it refers to logic 0, it doesn't involve actual connections"? Is it just a representation?

      Thanks

  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    1 year ago

    O.k. GND is no signal and doesn't need any routing between regions. I guess you see a tool bug.

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    1 year ago

    Can you show some code that shows this implementation? Logic 0 does not need to route to a specific location on the device unless you've added some code that would define it. You say "GND" is not defined as a signal, but the Chip Planner screenshot you show says otherwise unless there is some other logic you've defined that is causing this issue.

  • KennyT_altera's avatar
    KennyT_altera
    Icon for Super Contributor rankSuper Contributor
    1 year ago

    Hi,


    Can you attached your design so that I can take a look into the issues?


    If you think you need to send to Intel privately, do let me know.


    Thansk,

    Best regards,

    Kenny Tan


  • KennyT_altera's avatar
    KennyT_altera
    Icon for Super Contributor rankSuper Contributor
    1 year ago

    As we do not receive any response from you on the previous question/reply/answer that we have provided. Please login to ‘https://supporttickets.intel.com/s/?language=en_US’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.
