Honored ContributorDual Port RAM acces in VHDL
Hi,

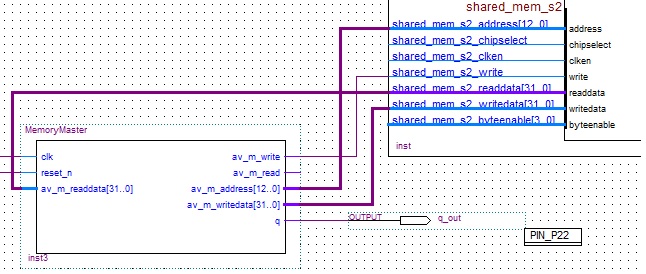

i read a lot of similar threads on this topic here but i could not find a solution to my (maybe suuper simple;) ) questions. I also would like to know if this approach is a good way to implement shared memory to pass 20 .. 30 parameters . The basic idea is to create a shared memory location for Nios to dump parameters and VHDL modules to read these parameters. So i created a dual port RAM in Qsys, connecting to the first slave only the data master from Nios and exporting the second slave. i connected a VHDL module to the second slave. The whole system looks like this: https://www.alteraforum.com/forum/attachment.php?attachmentid=8978 In Qsys the dpram was instantiated with: datawidth 32 bit, total memory size 32768 bytes, (which results in a 13 bit wide address bus) single clock operation. The Address region lasts from 0x0400_0000 to 0x0400_7FFF. I checked if i could read and write from Nios to the memory and this works fine with:
IOWR(SHARED_MEM_BASE,0,0xF);
int a = IORD(SHARED_MEM_BASE,0);
printf("%i",a); // results in 15
library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;
entity MemoryMaster is
port (
clk : in std_logic;
reset_n : in std_logic;
--av_m_chipselect : in std_logic;
av_m_write : out std_logic;
av_m_read : out std_logic;
av_m_address : out std_logic_vector(12 downto 0);
av_m_writedata : out std_logic_vector(31 downto 0);
av_m_readdata : in std_logic_vector(31 downto 0);
q : out std_logic
);
end MemoryMaster;
-- base address shared memory 0x4000 000
architecture behave of MemoryMaster is
begin
avalon_if : process (reset_n, clk)
begin
if ( reset_n = '0' ) then
av_m_address <= (others => '0');
av_m_write <= '0';
av_m_read <= '0';
av_m_writedata <= (others => '0');
elsif clk'event and clk ='1' then
--av_m_address <= (others => '0');
--av_m_address(26) <= '1';
av_m_address <=b"0_0100_0000_0000";
if (av_m_readdata = x"F") then
q <= '1';
else
q <= '0';
--if ( av_m_read_n = '0' and av_m_address = b"0" ) then
--av_m_readdata <= reg_temp;
--elsif ( av_m_write = '0' and av_m_address = b"1" ) then
end if;
end if;
end process avalon_if;
end behave;
