max10 remote system update nios with uart

hii i have progressed with the example of doing max10 rsu over uart with nios

i have the neek dev board for practicing

i have added to the qsys system of the original project that i downloaded from altera website a jtag uart for debugging

and i compiled the project and tested that works by simply printing hello world to the console in eclipse ide

the project is printing and i have added my own logic for driving leds in incrementing binary pattern to the top module and its working to , so i know for shore that hardware wise the project is working

the reset vector is pointed to the qspi flash on neek board

but now i have another problem i have changed the uart_tx and uart_rx on the top module to pmod header that is accessible on my neek dev , its a gpio header j19 so i can connect external usb_to_uart convertor to the pins on the header

because the original pin assignments in the project are going to the usb_to_uart chip on the neek board and i cant accesses this pins easily so i had to change the pin assignment

but now when i program nios_application.pof on the qspi flash and i open a terminal and restart the nios cpu by pressing the rest button i don't see any output is printed on the terminal .

i am assuming its because i changed the uart_tx and uart_rx pins on my qsys system

and my question is how do i generate the nios_application.pof after changing the serial port pins on my qsys

i have the remote_update.c file i assume that the nios_application.pof is somehow generated from the remote_update.c?

Nios Cpu

18 Replies

  • YoshiakiS_Altera's avatar
    YoshiakiS_Altera
    Icon for Occasional Contributor rankOccasional Contributor
    7 months ago

    Hello aiedb,

    Have you evaluated Demonstrations/uart_usb design in MAX10_NEEK_v.1.0.7_SystemCD.zip?

    After confirming the uart_usb design, we recommend to change uart_usb.qpf.

    Here is a part of uart_usb.qpf file.

    1. #============================================================
    2. # GPIO
    3. #============================================================
    4. set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to GPIO[0]
    5. set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to GPIO[1]
    6. set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to GPIO[2]
    7. set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to GPIO[3]
    8. set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to GPIO[4]
    9. set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to GPIO[5]
    10. set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to GPIO[6]
    11. set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to GPIO[7]
    13. ….
    15. #============================================================
    16. # UART
    17. #============================================================
    18. set_instance_assignment -name IO_STANDARD "2.5 V" -to UART_RESET_n
    19. set_instance_assignment -name IO_STANDARD "2.5 V" -to UART_RX
    20. set_instance_assignment -name IO_STANDARD "2.5 V" -to UART_TX
    22. ….
    24. set_location_assignment PIN_Y17 -to GPIO[0]
    25. set_location_assignment PIN_AA17 -to GPIO[1]
    26. set_location_assignment PIN_V16 -to GPIO[2]
    27. set_location_assignment PIN_W15 -to GPIO[3]
    28. set_location_assignment PIN_AB16 -to GPIO[4]
    29. set_location_assignment PIN_AA16 -to GPIO[5]
    30. set_location_assignment PIN_Y16 -to GPIO[6]
    31. set_location_assignment PIN_W16 -to GPIO[7]
    33. ….
    35. set_location_assignment PIN_E16 -to UART_RX
    36. set_location_assignment PIN_E15 -to UART_TX

    If you want to assign uart pins to GPIO[7:6], here is an example. Red items should be changed.

    1. #============================================================
    2. # GPIO
    3. #============================================================
    4. set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to GPIO[0]
    5. set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to GPIO[1]
    6. set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to GPIO[2]
    7. set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to GPIO[3]
    8. set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to GPIO[4]
    9. set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to GPIO[5]
    10. #set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to GPIO[6]
    11. #set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to GPIO[7]
    13. ….
    15. #============================================================
    16. # UART
    17. #============================================================
    18. set_instance_assignment -name IO_STANDARD "2.5 V" -to UART_RESET_n
    19. set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to UART_RX
    20. set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to UART_TX
    22. ….
    24. set_location_assignment PIN_Y17 -to GPIO[0]
    25. set_location_assignment PIN_AA17 -to GPIO[1]
    26. set_location_assignment PIN_V16 -to GPIO[2]
    27. set_location_assignment PIN_W15 -to GPIO[3]
    28. set_location_assignment PIN_AB16 -to GPIO[4]
    29. set_location_assignment PIN_AA16 -to GPIO[5]
    30. #set_location_assignment PIN_Y16 -to GPIO[6]
    31. #set_location_assignment PIN_W16 -to GPIO[7]
    33. ….
    35. set_location_assignment PIN_Y16 -to UART_RX
    36. set_location_assignment PIN_W16 -to UART_TX

    After changing the pin assignment, you need to recompile the design and generate POF again.

    Regards,

    Yoshiaki

    • aiedb's avatar
      aiedb
      Icon for Occasional Contributor rankOccasional Contributor
      7 months ago

      hii thanks for reply

      my question is not about how to assign the uart pins

      i trying to practice the max10 remote update on my neek dev board

      and i saw in an741

      Remote System Upgrade for MAX 10 FPGA Devices
      over UART with the Nios II Processor

      there is a file called nios_application.pof as a part of the files needed to do the lab

      my question is about how to generate nios_application.pof file that is part of the files that is needed for Programming into external QSPI flash,

      this that consists Nios II processor software application hex file only.


      i have built the qsys system for the rsu design and also i have the remote_update c source file and my quistion is how do i generate nios_application.pof

      • YoshiakiS_Altera's avatar
        YoshiakiS_Altera
        Icon for Occasional Contributor rankOccasional Contributor
        7 months ago

        Hello aiedb,

        Sorry for misunderstanding your question.

        You want to run AN741 on MAX10 NEEK instead of Max10 Devkit, right?

        Please me give some time to run the design on Max10 Devkit first.

        Regards,

        Yoshiaki

  • aiedb's avatar
    aiedb
    Icon for Occasional Contributor rankOccasional Contributor
    7 months ago

    hii yes ' i know this file

    i was wondering if there is a similar file built for rsu for the neek kit

  • YoshiakiS_Altera's avatar
    YoshiakiS_Altera
    Icon for Occasional Contributor rankOccasional Contributor
    7 months ago

    Hello aiedb,

    You can use these files for the MAX10 NEEK KIT with no modification.

    But the input clock is assumed 50MHz for OnChip.qys so that you should assign one of MAX10_CLK1/2/3_50 in NEEK to the clock.

    Lastly, you need to create new pfl.sof for NEEK instead of master_image/pfl.sof for programming Nios_application.pof to QSPI memory on NEEK because pfl.sof depends on QSPI pin assignment on Max10.

    Regards,

    Yoshiaki

    • YoshiakiS_Altera's avatar
      YoshiakiS_Altera
      Icon for Occasional Contributor rankOccasional Contributor
      7 months ago

      Hello aiedb,

      We have confirmed that the RSU demo design works fine on Max10 Dev Kits as below.

      Let us know if you have any questions.

      Regards,

      Yoshiaki

  • BoonBengT_Altera's avatar
    BoonBengT_Altera
    Icon for Moderator rankModerator
    7 months ago

    Hi @aiedb,


    Greetings, just checking in to see if there is any further doubts in regards to this matter.

    Hope your doubts have been clarified.


    Best Wishes

    BB


  • aiedb's avatar
    aiedb
    Icon for Occasional Contributor rankOccasional Contributor
    7 months ago

    hii thanks for help i have made some progress on the neek kit , i wrote my own application for update and i see that writing to the cfm is failing i will put my effort for solving this and i will get back to you , but in the meanwhile i have another question !

    is the raw hex data in the rpd file gets written in the cfm ??

  • YoshiakiS_Altera's avatar
    YoshiakiS_Altera
    Icon for Occasional Contributor rankOccasional Contributor
    7 months ago

    Hello aiedb,

    Yes, you are right.

    The menu in the example software mentions below.

    1: Write Image to CFM0

    2: Write Image to CFM1 and CFM2

    3: Trigger reconfiguration to CFM0(Factory Image)

    4: Trigger reconfiguration to CFM1 and CFM 2(App Image)

    Please check the software/remote_update.c in the example design for more details.

    Regards,

    Yoshiaki

    • aiedb's avatar
      aiedb
      Icon for Occasional Contributor rankOccasional Contributor
      7 months ago

      hii

      when i press 2 to write image to CFM1 and CFM2

      it asks me to enter the CFM1 start address and the CFM1 end address

      in the map file that is generated by combining both(default+application) images the addresses are

      0x12000 as start address

      and 0xb9fff as end address

      i tried to key in this addresses but i get an output that it is failing to write to addresses to cfm1!!!

      note: i have my own fpga design for blinking the leds for counting pattern

      and another design for to turn on the leds in sweeping pattern

      i combined both of images according to the lab manual using HXD editor ,

      and i also checked before by programming the designs on the kit

      and i saw that they are working independently by a counting pattern and by sweeping pattern .

      what is the address that i need to key in as CFM1 start address?

      and what is the address that i need to key in as CFM1 end address?

      • aiedb's avatar
        aiedb
        Icon for Occasional Contributor rankOccasional Contributor
        7 months ago

        hiii

        i looked at the qsys system and the addresses of the onchip flash of cfm1 is from 0x10000 to 0xb7fff so i keyed in those addresses and i get the done message in the terminal

        so it seems that the writing to cfm1 with the new application is finished successfully so the programming by uart is done with out any errors

        but some how after the done message i get the message request to key in the selection again and automatically the i get a message to key in start address and an end address again with ffffff although i didn't choose this option

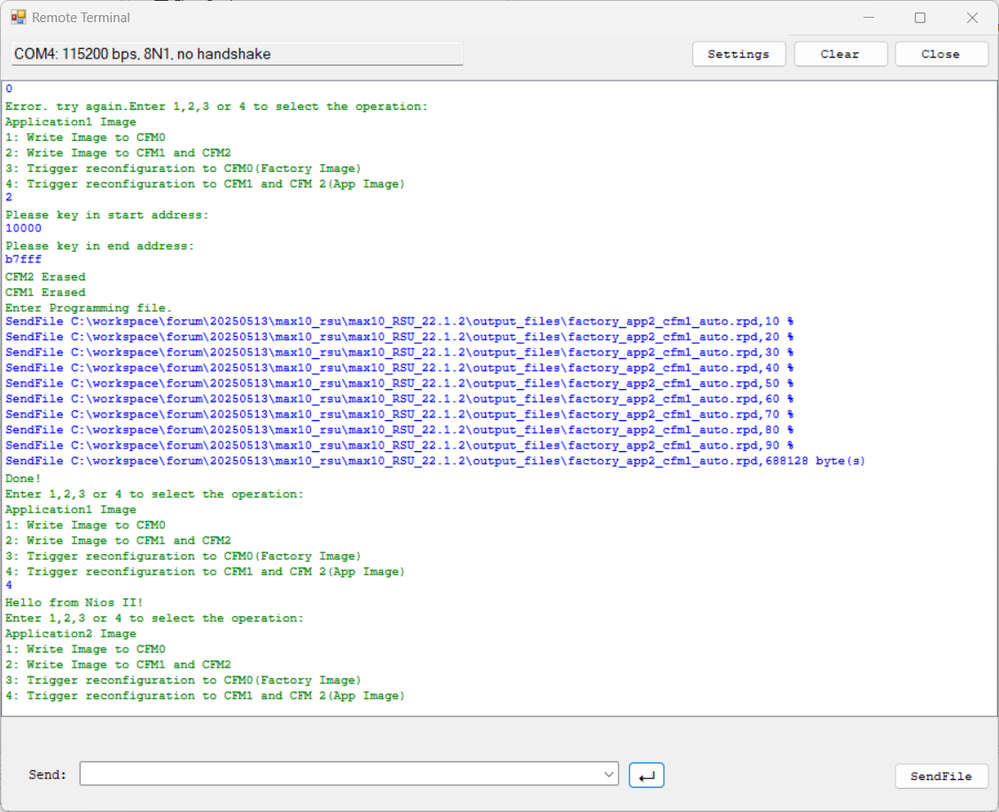

        i attached the picture to showcase what i mean

        and when i press 4 to trigger the new application nothing happens the leds continue to blink with the default pattern

        and even if i move the config_sel pin to 1 and turn the board off and on i don't see that the new leds pattern appears

  • YoshiakiS_Altera's avatar
    YoshiakiS_Altera
    Icon for Occasional Contributor rankOccasional Contributor
    7 months ago

    Hello aiedb,

    Please check size of your generated file for CFM1.

    In my case, factory_app1.map including Factory Image and Application 1 Image shows below.

    BLOCK

    START ADDRESS

    END ADDRESS

    ICB

    0x00000000

    0x00001FFF

    UFM

    0x00002000

    0x00011FFF

    CFM0

    0x000BA000

    0x00161FFF

    CFM1

    0x00012000

    0x000B9FFF

    Start and end address of CMF 1 in the map file are 0x12000 and 0xB9FFF, respectively.

    Therefor the size of CFM1 is 0xA8000 ( 0xB9FFF - 0x12000 + 1 ).

    0xA8000 as decimal is 688128.

    After generating pof and rpd, you can see the following files which are extracted of each block.

    File

    Size

    factory_app1_auto.rpd

    1449984

    factory_app1_cfm0_auto.rpd

    688128

    factory_app1_cfm1_auto.rpd

    688128

    factory_app1_ufm_auto.rpd

    65536

    The size of factory_app1_cfm1_auto.rpd should be same as 0xA8000(688128).

    Regards,

    Yoshiaki

    • aiedb's avatar
      aiedb
      Icon for Occasional Contributor rankOccasional Contributor
      7 months ago

      hii thanks now i have the version working for me

      what i have found that i need to disable the small driver library in the bsp editor

      and i need to enter the address in this form x12000 not 12000 in order for the program to work 'thanks for help a lot

      • YoshiakiS_Altera's avatar
        YoshiakiS_Altera
        Icon for Occasional Contributor rankOccasional Contributor
        7 months ago

        Hello aiedb,

        I'm glad to hear that.

        If you face another issue, please open a new thread.

        Regards,

        Yoshiaki

  • BoonBengT_Altera's avatar
    BoonBengT_Altera
    Icon for Moderator rankModerator
    7 months ago

    Hi @aiedb,


    Seems that your doubts has been clarified, with no further clarification on this thread, it will be transitioned to community support for further help on doubts in this thread.
