PCIe hard IP and SerDes Transceiver Configuration in Cyclone V GX with 6 transceivers

Dear Intel Community and Intel Employees,

I need to place one PCIe Gen1 x1 hard IP block and 4 SerDes Transceiver Channels of an third party IP of an switch into a Cyclone V GX with 6 transceivers (5CGXFC7C6U19I7).

triplettransceiverusage
00PCIe hard IP
01unused / CMU of PCIe
02SerDes HSR ring 1 : Port 0
13SerDes HSR ring 1 : Port 1
14SerDes HSR ring 2 : Port 0
15SerDes HSR ring 2 : Port 1

but I get the error:

Error (11687): Channel GXB_SFF_TX[1](n) is assigned to location PIN_N1, channel oPcieTx(n) is assigned to location PIN_Y3, however channels with different reconfiguration controllers cannot be placed in the same channel triplet. Modify your design so the two channels share the same reconfigure controller.

Is there a workaround for this error, when I have no place in the other triplet left ?

kind regards,
Martin

Pcie

3 Replies

  • Harshx's avatar
    Harshx
    Icon for Occasional Contributor rankOccasional Contributor
    2 years ago

    Hi,

    Thanks for contacting Intel. I'm assigned to support request.

    I'll investigate on this case and get back to you soon once I have any finding.

    Meanwhile can I check with you on:

    1. Quartus version you are using?
    2. Are you able to share your design or something with we can regenerate the same error?

    Thanks for your patience.

    Best regards,

    Harsh M


    • MaHa1's avatar
      MaHa1
      Icon for New Contributor rankNew Contributor
      2 years ago

      Dear Harshx,

      1. We use: Quartus Prime 18.1.0 Build 625 - Standard Edition

      2. I 'm not able share the Design, because of Encrypted Third Party IPs and company knowledge.

      When I separated the channels into the other Triplet, I ran into another problem:

      Error (14566): The Fitter cannot place 1 periphery component(s) due to conflicts with existing constraints (1 Channel PLL(s)).

      In the Transceiver Manual I found the Note, that for Full-Duplex communication, the Tx-path needs a CMU PLL which are sourced from channel PLL 1 and 4 in Cyclone V GX.

      The only setup where the fitter can place was by only using 2 out of 4 SerDes transceiver channels.

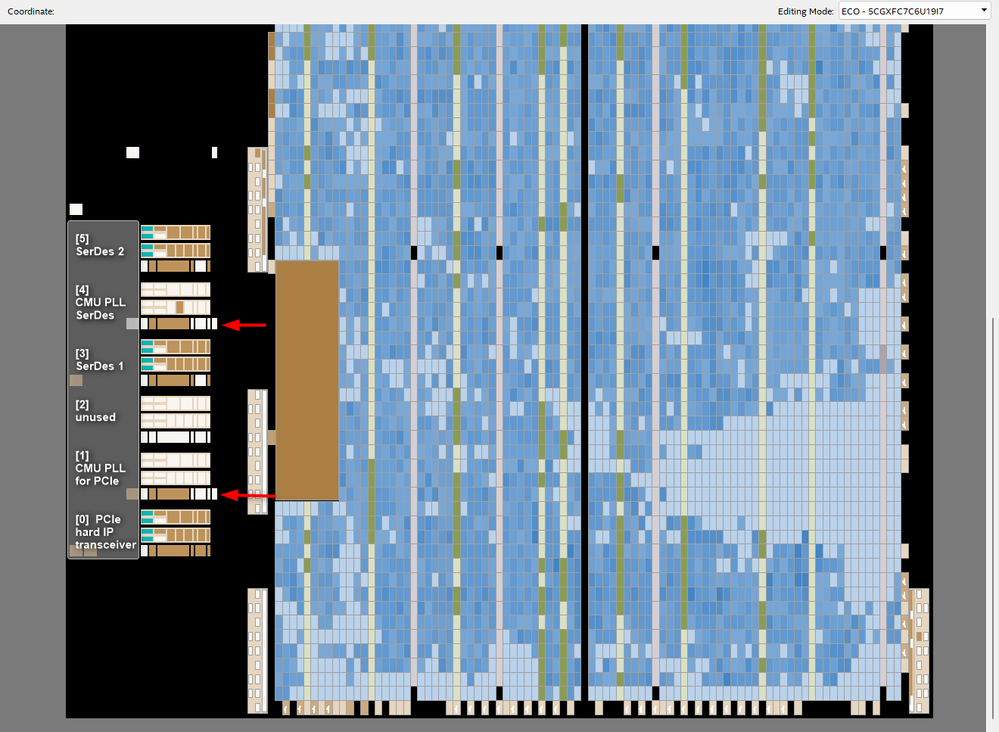

      Chip-Planner 5CGXFC7C6U19I7:

      So, currently 3 of 6 transceivers are used that the fitter can place the channels.

      We need 2 additional SerDes transceiver channels for our design, this would be 5/6 transceivers.

      → Is there a Solution to use PCIe hard IP with more than 2 SerDes Transceivers?

      kind regards,
      Martin Haiden

  • Ash_R_Intel's avatar
    Ash_R_Intel
    Icon for Regular Contributor rankRegular Contributor
    11 months ago

    Hi,

    These issues could be due to the way you have split up your reconfiguration controller, where the minimum "granularity" is a triplet, or perhaps the channel placement is constrained because you are using CMU PLLs, which can only be placed in CH1 or CH4 of a 6-pack.

    I believe that you should check the clock sharing and the data rates that you are targeting within a bank. Please check the PLL sharing guidelines: 1.5. PLL Sharing


    Regards
