PCIe Gen2 on Cyclone V GT FPGA Dev Kit

I modified the altera_pcie/altera_pcie_hip_ast_ed/example_design/cv/pcie_de_gen1_x4_ast64.qsys file to support gen2 x4
I generated and compiled the code and tried loading it on the devkit.
While the gen1 sof file enumerates, the gen2 version fails to enumerate.

Both gen1 and gen2 pass verification.
Are there any changes in board settings that are required to get the gen2 bitfile to enumerate?

Board Debug

12 Replies

  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor
    9 months ago

    Hi,

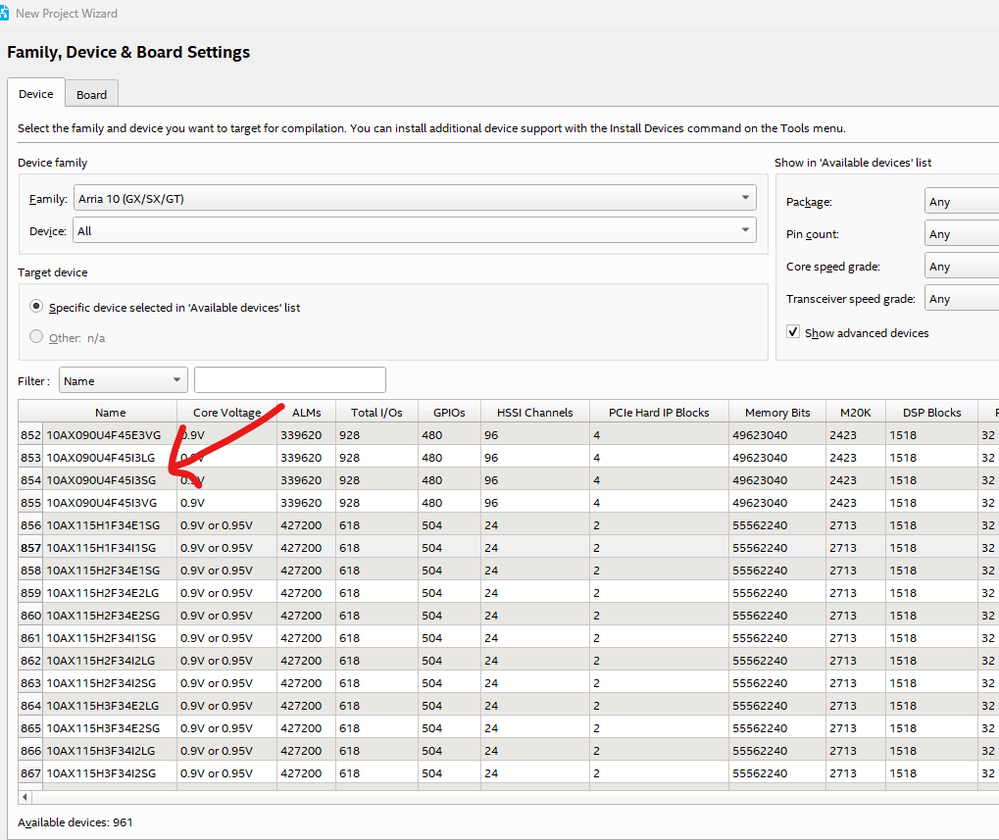

    1. May I know what is the device OPN that you are using ?
    2. Do you capture any .stp ? If not , do appreciate if you can do that, with that we can know where the LTSSM stuck at, hence further debug can be done.
      1. If you not sure how to capture that, please let me know, I can guide you step by step.


    Regards,

    Wincent_Altera


    • Vijayvithal's avatar
      Vijayvithal
      Icon for New Contributor rankNew Contributor
      9 months ago

      What is a device OPN?

      I tried installing signaltap and capturing the boot sequence, but since I need to reboot the machine to get it to enumerate I did not make much progress there.
      Please inform about the signals that I need to capture and I will do it.

  • Vijayvithal's avatar
    Vijayvithal
    Icon for New Contributor rankNew Contributor
    9 months ago

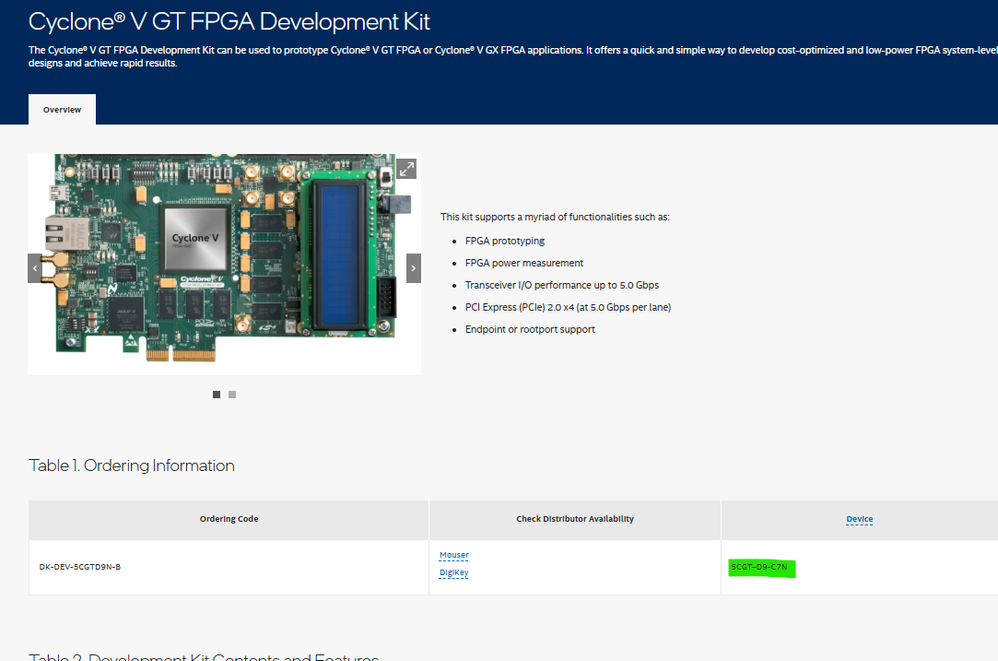

    The device is 5CGT–D9-C7N https://www.intel.com/content/www/us/en/products/details/fpga/development-kits/cyclone/v-gt.html

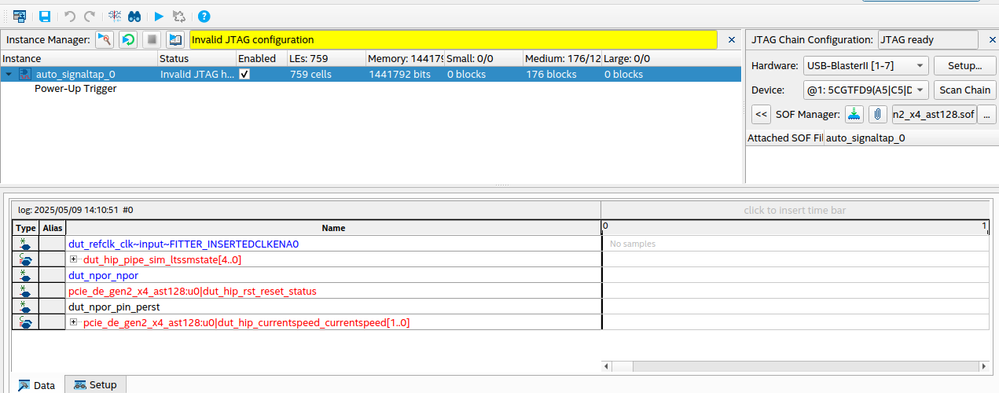

    The signals after running `echo 1 |sudo tee /sys/bus/pci/rescan`

    I am connecting to the remote machine via the following steps

    ```

    ssh -L 1309:localhost:1309 remote

    nohup jtagd

    ```

    on local machine I am running `jtagconfig` to update the connection

    After a reboot of remote machine I am not able to trigger a capture because signaltap reports invalid JTAG configuration

      • Wincent_Altera's avatar
        Wincent_Altera
        Icon for Regular Contributor rankRegular Contributor
        9 months ago

        Hi Vijay,

        May I know is this gen2 (fail) design or gen1 ?
        What is the version of Quartus you use to compile this design ?

        Regards,
        Wincent_Altera

    • Wincent_Altera's avatar
      Wincent_Altera
      Icon for Regular Contributor rankRegular Contributor
      9 months ago

      Hi Vijay,

      I seeing your ltssm is stuck at 00h which is in detect.quiet stage.
      This mostly happen due to the host Can't detect far end Receiver.

      I suggest to check with the Connectivity problem or Board component problem/

      1. Is this plug in to slot that supported gen2 ?
      2. do you change the BIOS setting from "auto" to "gen2"

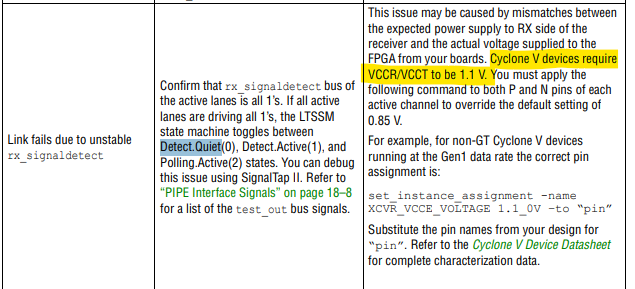

      3. Please check your VCCR/VCCT , ensure that it is 1.1v

      Regards,
      Wincent_Altera

      • Vijayvithal's avatar
        Vijayvithal
        Icon for New Contributor rankNew Contributor
        9 months ago

        Wincent,
        The board is plugged into gen4 pcie slot.

        Regarding the pin assignments,

        The Board reference manual recommends PCML for the serdes pins.

        We are currently using this setting

        set_global_assignment -name PARTITION_NETLIST_TYPE SOURCE -section_id Top
        set_global_assignment -name PARTITION_FITTER_PRESERVATION_LEVEL PLACEMENT_AND_ROUTING -section_id Top
        set_global_assignment -name PARTITION_COLOR 16764057 -section_id Top
        set_instance_assignment -name IO_STANDARD LVDS -to clk_clk
        set_instance_assignment -name IO_STANDARD HCSL -to dut_refclk_clk
        set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to dut_npor_pin_perst
        set_instance_assignment -name IO_STANDARD "1.5-V PCML" -to dut_hip_serial_rx_in0
        set_instance_assignment -name IO_STANDARD "1.5-V PCML" -to dut_hip_serial_rx_in1
        set_instance_assignment -name IO_STANDARD "1.5-V PCML" -to dut_hip_serial_rx_in2
        set_instance_assignment -name IO_STANDARD "1.5-V PCML" -to dut_hip_serial_rx_in3
        set_instance_assignment -name IO_STANDARD "1.5-V PCML" -to dut_hip_serial_tx_out0
        set_instance_assignment -name IO_STANDARD "1.5-V PCML" -to dut_hip_serial_tx_out1
        set_instance_assignment -name IO_STANDARD "1.5-V PCML" -to dut_hip_serial_tx_out2
        set_instance_assignment -name IO_STANDARD "1.5-V PCML" -to dut_hip_serial_tx_out3
        set_instance_assignment -name PARTITION_HIERARCHY root_partition -to | -section_id Top

  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor
    9 months ago

    Hi VIjay,

    I seeing your question is addressing in another platform

    Is there anything else you think I could help you in this forum thread ?

    Regards,

    Wincent_Altera

    • Vijayvithal's avatar
      Vijayvithal
      Icon for New Contributor rankNew Contributor
      9 months ago

      We are getting a faster rate of response on IPS and are making progress there.
      This thread can be closed.

      • Wincent_Altera's avatar
        Wincent_Altera
        Icon for Regular Contributor rankRegular Contributor
        9 months ago

        Hi Vijay,

        Thanks for your response, please be understand that we are in full commitment to support any of our customer either it is in forum or IPS. Please accept my sincerely apology for some unexpected delay causing in this thread.

        I am glad that your issue making progress in our IPS platform. If there is any new issue come in , you may file a new forum thread/ips. We will be there to support you. Thanks for reaching to us anyway.
