Agilex 7 Decoupling capacitor scaling factor

Hi!

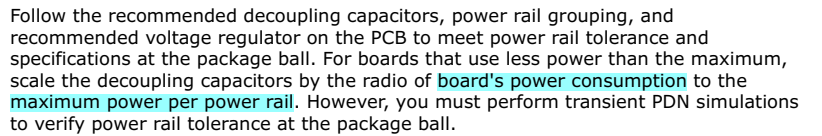

I have got my power estimate from quartus prime based on our requirement, which is "  board's power consumption". Now to find the scaling factor i need to know the "maximum power per power rail" , where would i get this value? is it related to FPGA part(AGFB027R24C2I2V) or the max current rating of my convertors?



Thanks,

Vigneswaran

1 Reply

  • Farabi's avatar
    Farabi
    Icon for Regular Contributor rankRegular Contributor
    6 hours ago

    Hello,



    If you have completed design compilation, Quartus will generate power report for your design. In this report, it will show details of each power rails.

    design_folder > output_files > *.pow.rpt



    regards,

    Farabi
